American Tackle Virtus UL Unlimited Class Saltwater Rod Guides

Shop all American Tackle Co.

American Tackle Virtus UL Unlimited Class Saltwater Rod Guides

4.8

$5.39 USD

SKU: NBRLVUL-8

UPC: 099253035846

Color: Black

Black Chrome Titanium

Ring Type: Nanolite

Nanolite

Size: 8

Size Chart - Virtus UL Unlimited Class Saltwater Rod Guides

Virtus UL 3166SS Frame with Duralite Rings
BLACK	CHROME	HEIGHT A	HEIGHT B	HEIGHT C	WEIGHT	RING ID	FOOT LENGTH	TOTAL LENGTH
DBRLVUL-8	DCRLVUL-8	6.00 mm	11.70 mm	13.65 mm	1.30 g	5.70 mm	6.75 mm	25.50 mm
DBRLVUL-10	DCRLVUL-10	7.30 mm	14.70 mm	16.90 mm	2.20 g	7.40 mm	7.60 mm	30.65 mm
DBRLVUL-12	DCRLVUL-12	10.15 mm	18.90 mm	21.10 mm	3.60 g	8.75 mm	10.00 mm	40.40 mm
DBRLVUL-16	DCRLVUL-16	13.00 mm	24.10 mm	26.75 mm	5.20 g	11.10 mm	10.60 mm	46.40 mm
DBRLVUL-20	DCRLVUL-20	17.90 mm	32.30 mm	34.85 mm	11.10 g	14.40 mm	14.90 mm	60.35 mm
DBRLVUL-25	DCRLVUL-25	25.70 mm	44.40 mm	48.70 mm	17.60 g	18.70 mm	18.20 mm	76.75 mm

Virtus UL 3166SS Frame with Nanolite Rings
BLACK	CHROME	HEIGHT A	HEIGHT B	HEIGHT C	WEIGHT	RING ID	FOOT LENGTH	TOTAL LENGTH
NBRLVUL-8	NCRLVUL-8	5.70 mm	11.30 mm	13.65 mm	1.40 g	5.60 mm	6.75 mm	25.50 mm
NBRLVUL-10	NCRLVUL-10	7.15 mm	14.45 mm	16.90 mm	2.20 g	7.30 mm	7.60 mm	30.65 mm
NBRLVUL-12	NCRLVUL-12	9.75 mm	18.15 mm	21.10 mm	3.70 g	8.40 mm	10.00 mm	40.40 mm
NBRLVUL-16	NCRLVUL-16	12.75 mm	23.60 mm	26.75 mm	5.40 g	10.85 mm	10.60 mm	46.40 mm
NBRLVUL-20	NCRLVUL-20	17.25 mm	26.70 mm	34.85 mm	11.50 g	13.95 mm	14.90 mm	60.35 mm
NBRLVUL-25	NCRLVUL-25	26.70 mm	44.85 mm	48.70 mm	18.30 g	18.15 mm	18.20 mm	76.75 mm

Virtus UL Titanium Frame with Nanolite Rings
BLACK	BLACK TITANIUM	HEIGHT A	HEIGHT B	HEIGHT C	WEIGHT	RING ID	FOOT LENGTH	TOTAL LENGTH
NIRLVUL-8	NIBRLVUL-8	5.70 mm	11.30 mm	13.65 mm	0.90 g	5.60 mm	6.75 mm	25.50 mm
NIRLVUL-10	NIBRLVUL-10	7.15 mm	14.45 mm	16.90 mm	1.40 g	7.30 mm	7.60 mm	30.65 mm
NIRLVUL-12	NIBRLVUL-12	9.75 mm	18.15 mm	21.10 mm	2.40 g	8.40 mm	10.00 mm	40.40 mm
NIRLVUL-16	NIBRLVUL-16	12.75 mm	23.60 mm	26.75 mm	3.60 g	10.85 mm	10.60 mm	46.40 mm
NIRLVUL-20	NIBRLVUL-20	17.25 mm	26.70 mm	34.85 mm	7.00 g	13.95 mm	14.90 mm	60.35 mm
NIRLVUL-25	NIBRLVUL-25	26.70 mm	44.85 mm	48.70 mm	12.1 g	18.15 mm	18.20 mm	76.75 mm

Specifications

SKU	NBRLVUL-8
Color	Black
Height	13.65 mm
Height bottom	5.7 mm
Height top	11.3 mm
Length	25.5 mm
Length foot 1	6.75 mm
Material	Titanium
Ring inside diameter	5.6 mm
Ring material	Nanolite
Ring size	8
Weight	1.4 g

In stock

Quantity:

Free Shipping

Orders $99+ to USA lower 48. More →

Free Returns

100% Satisfaction guaranteed. More →

About American Tackle Co.

American Tackle sets the standard for innovative, high-quality, premier rod building components that every angler can trust. With over 30 years of experience in the tackle industry, American Tackle takes pride in delivering unmatched variety, durability, and, most importantly, performance.

Shop all American Tackle Co.American Tackle Virtus UL Unlimited Class Saltwater Rod Guides

$5.39 USD

American Tackle Virtus UL Unlimited Class Saltwater Rod Guides

Product Details

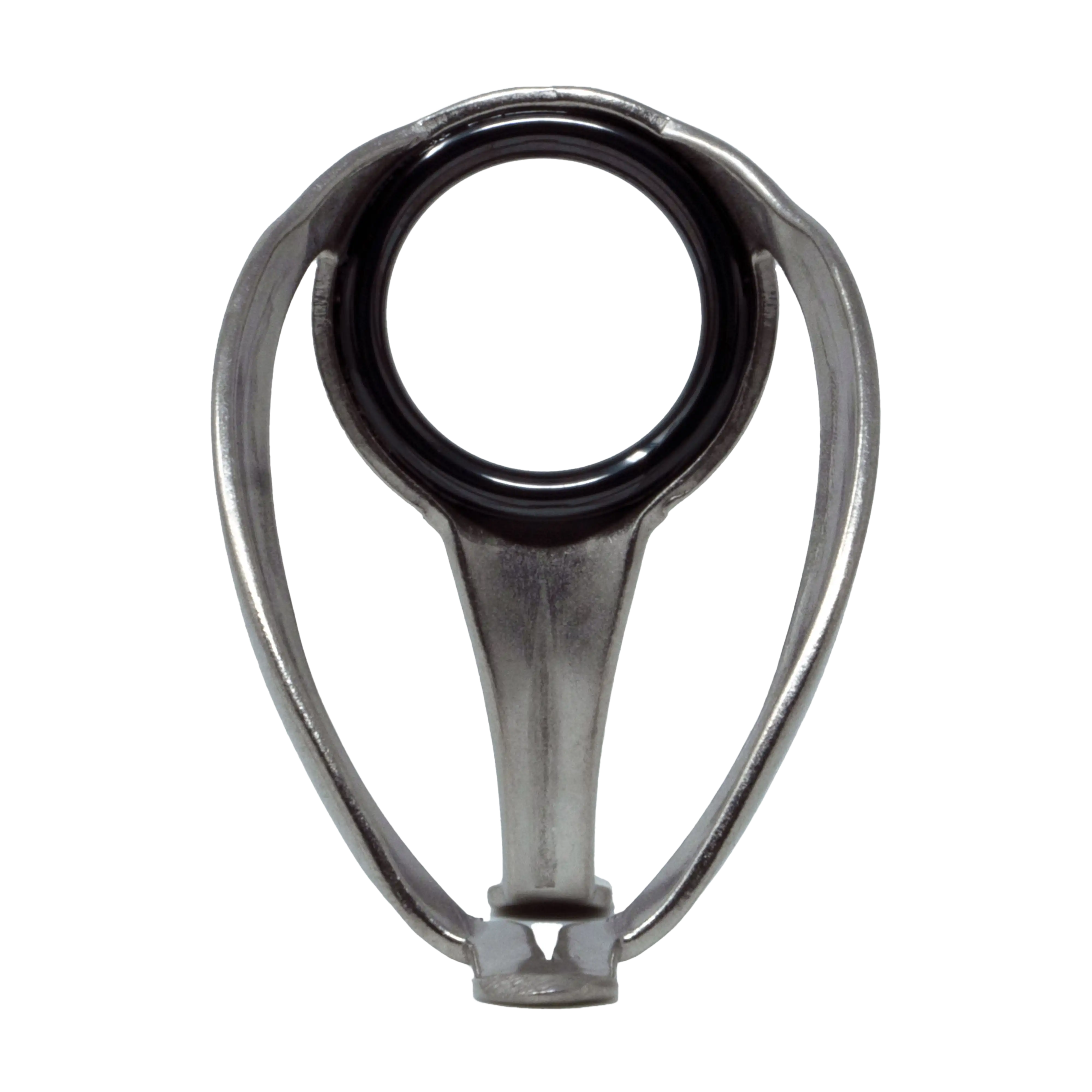

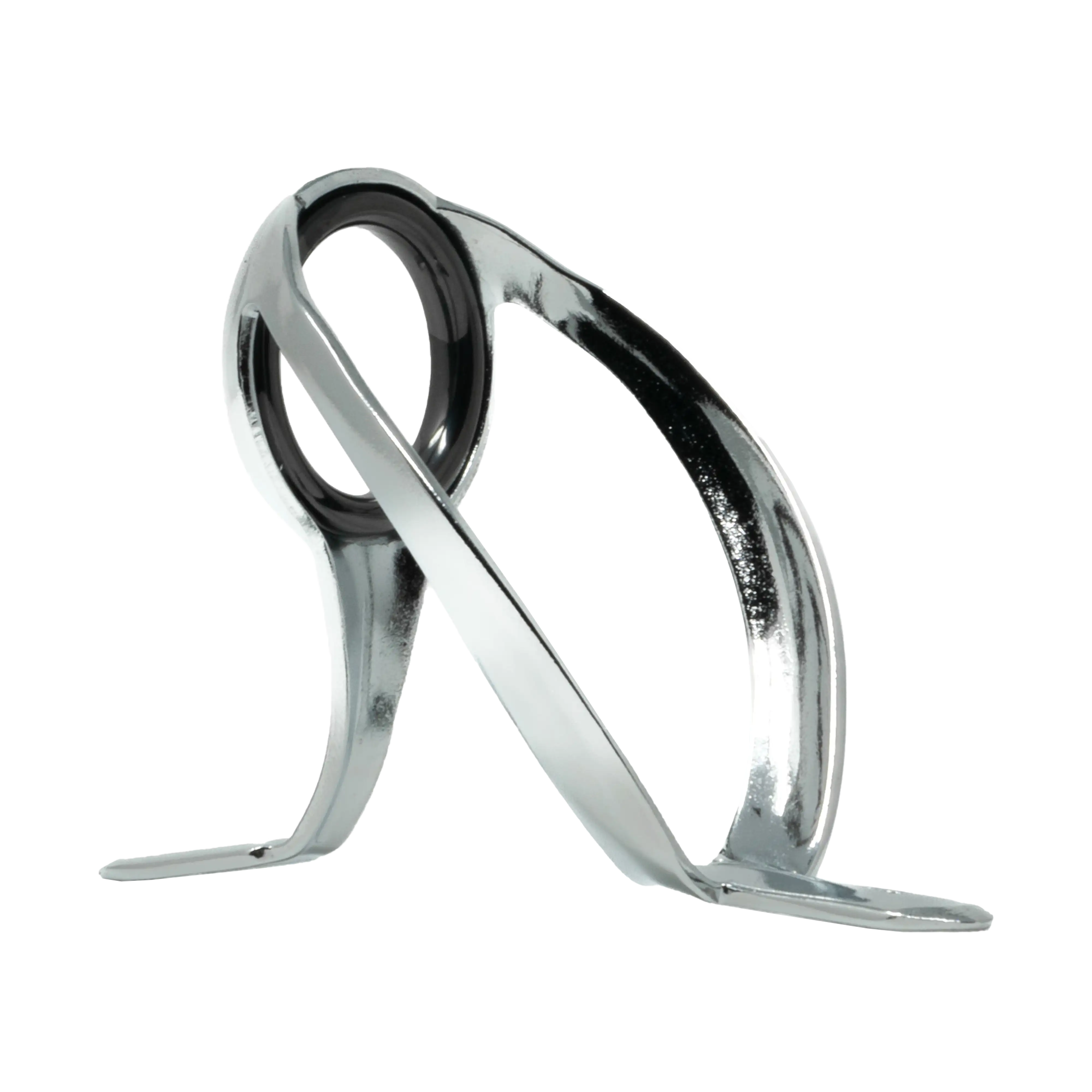

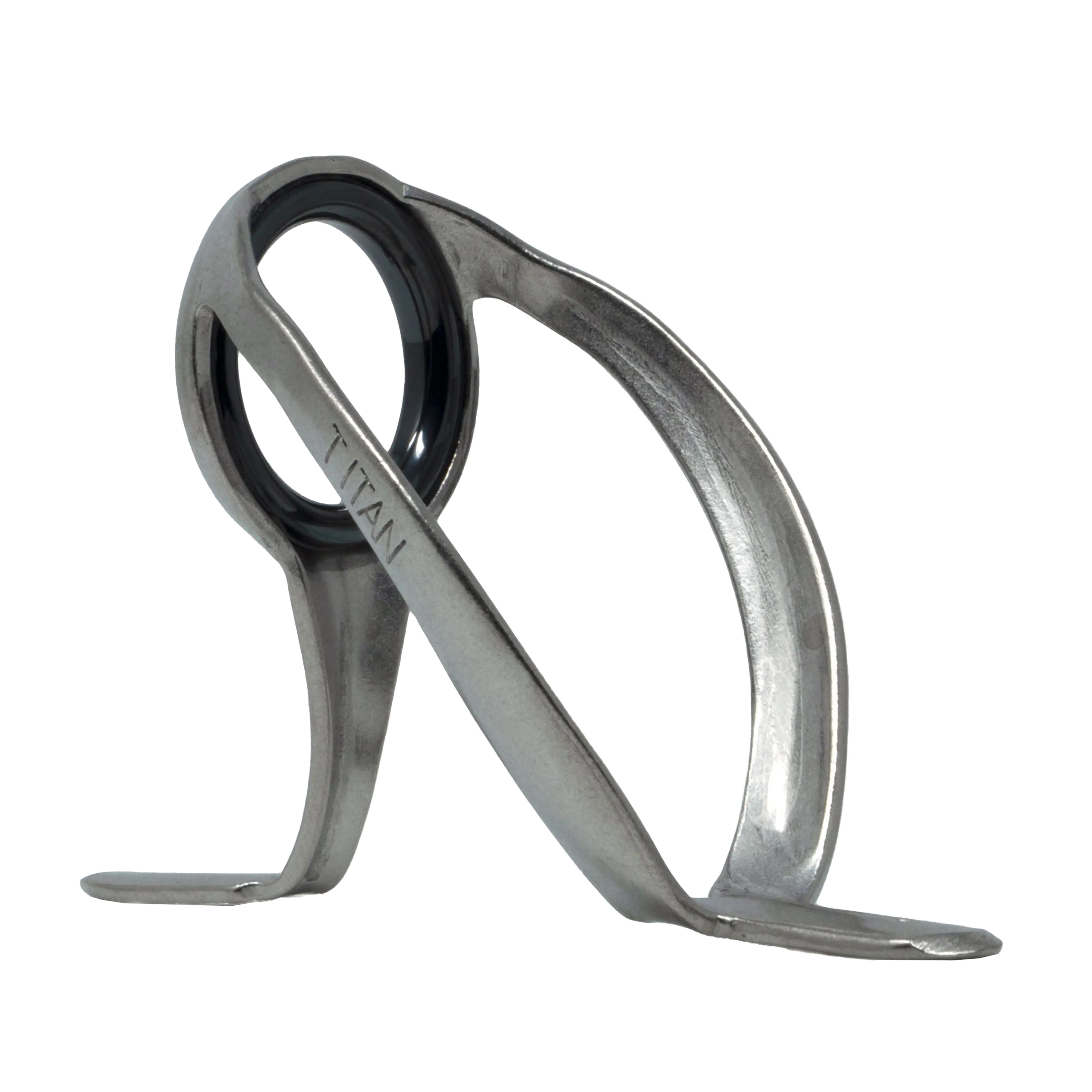

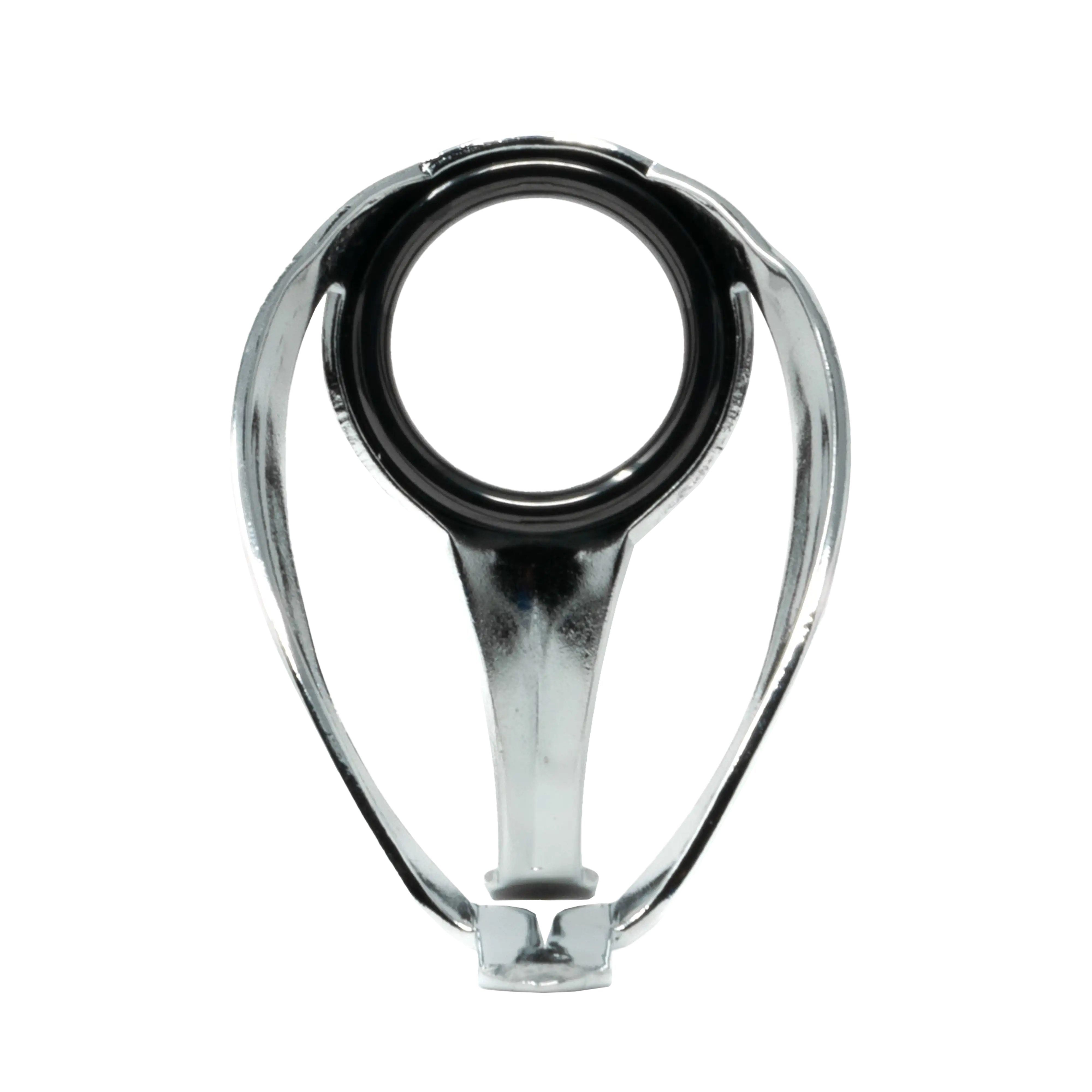

Engineered for the toughest offshore applications, the American Tackle Virtus UL Unlimited Class guides bring proven RingLock performance to the heaviest saltwater rods. Available in solid titanium or 316 stainless steel frame styles, these guides are built to handle 30–200 lb line classes with unmatched durability and corrosion resistance. Offered with your choice of Nanolite for maximum hardness or Duralite for reduced weight, and in a full range of sizes from 8mm through 25mm.

Features:

Solid titanium or 316SS frames for strength and corrosion resistance
Frame finishes: Solid Titanium, Black Diamond, or Chrome
Nanolite or Duralite ceramic ring options

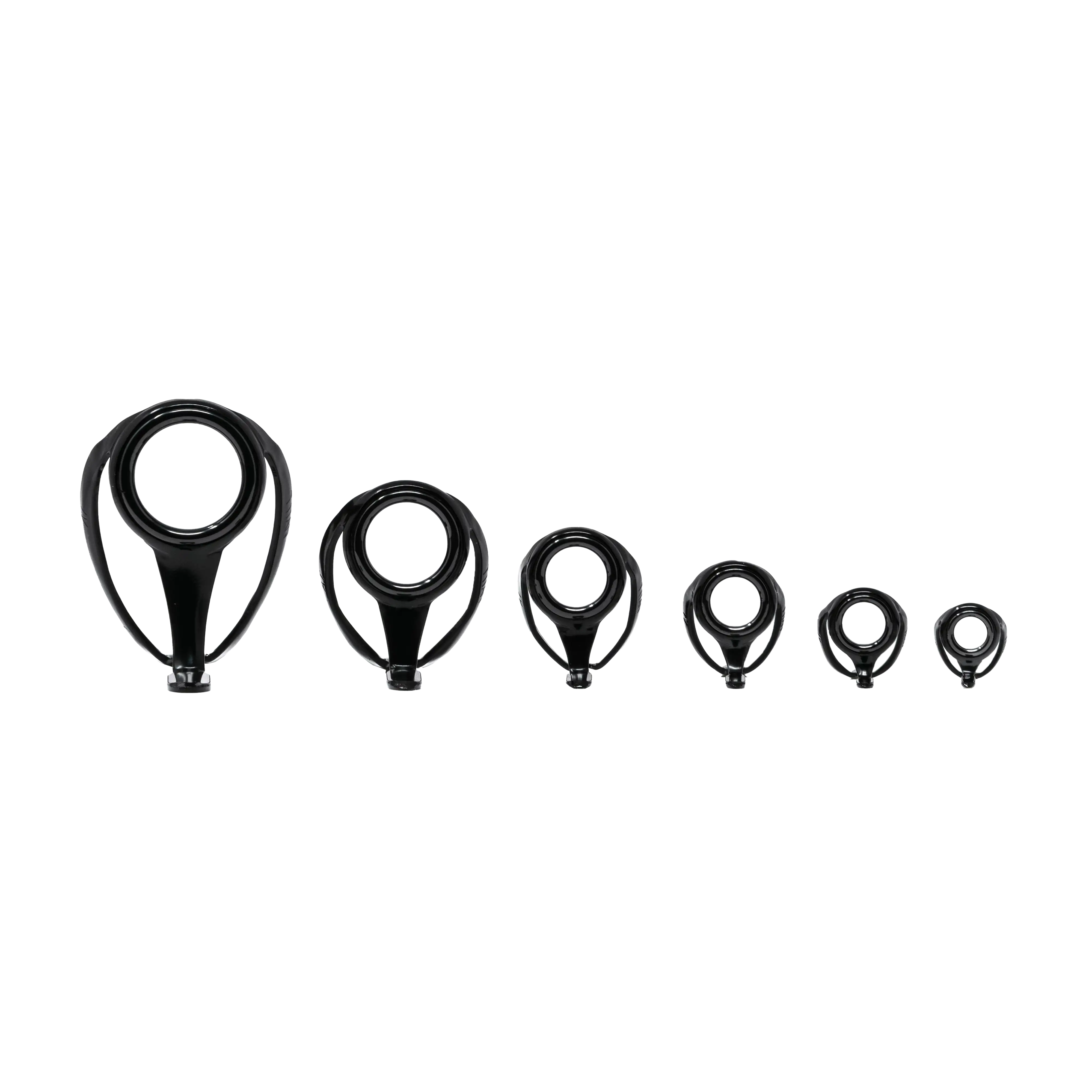

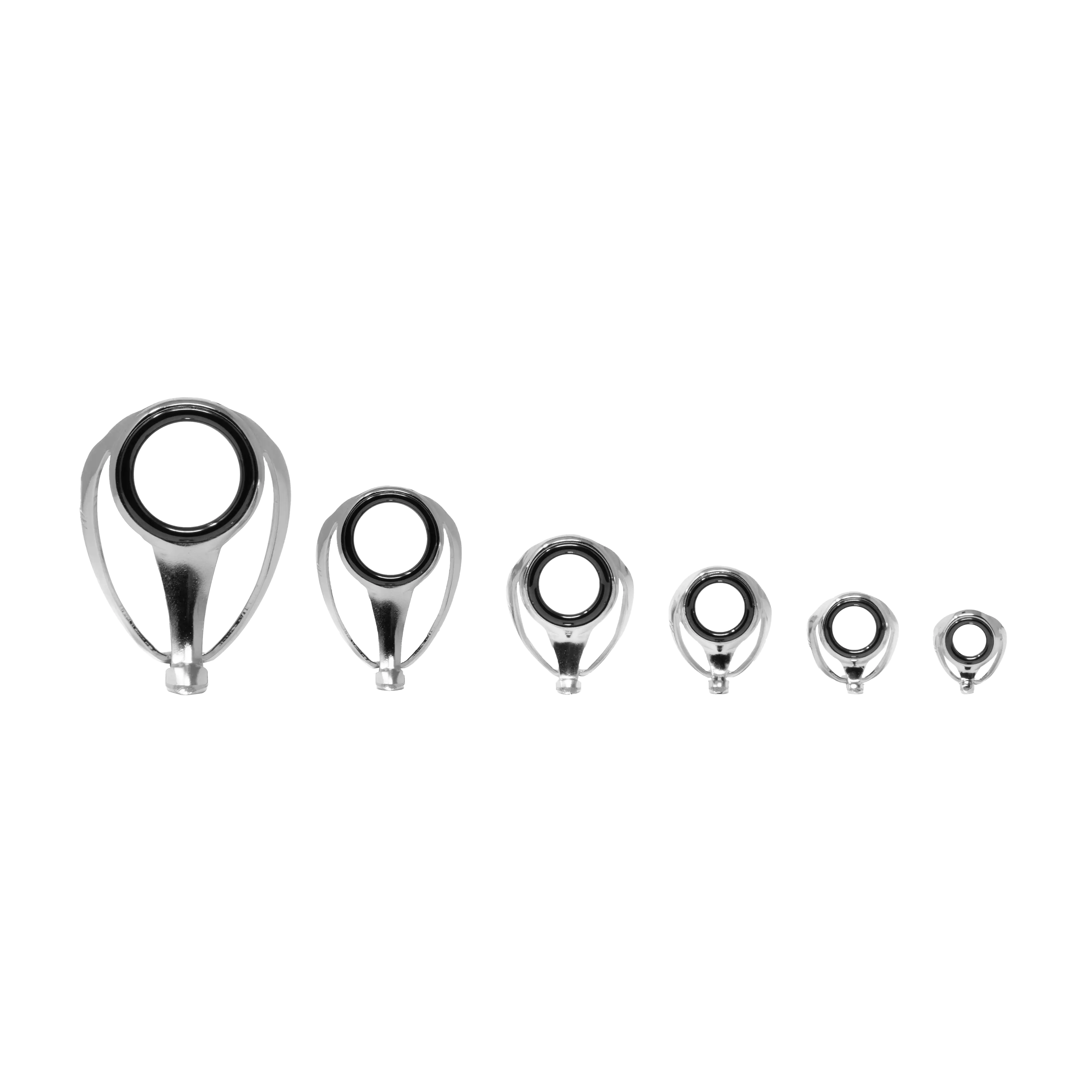

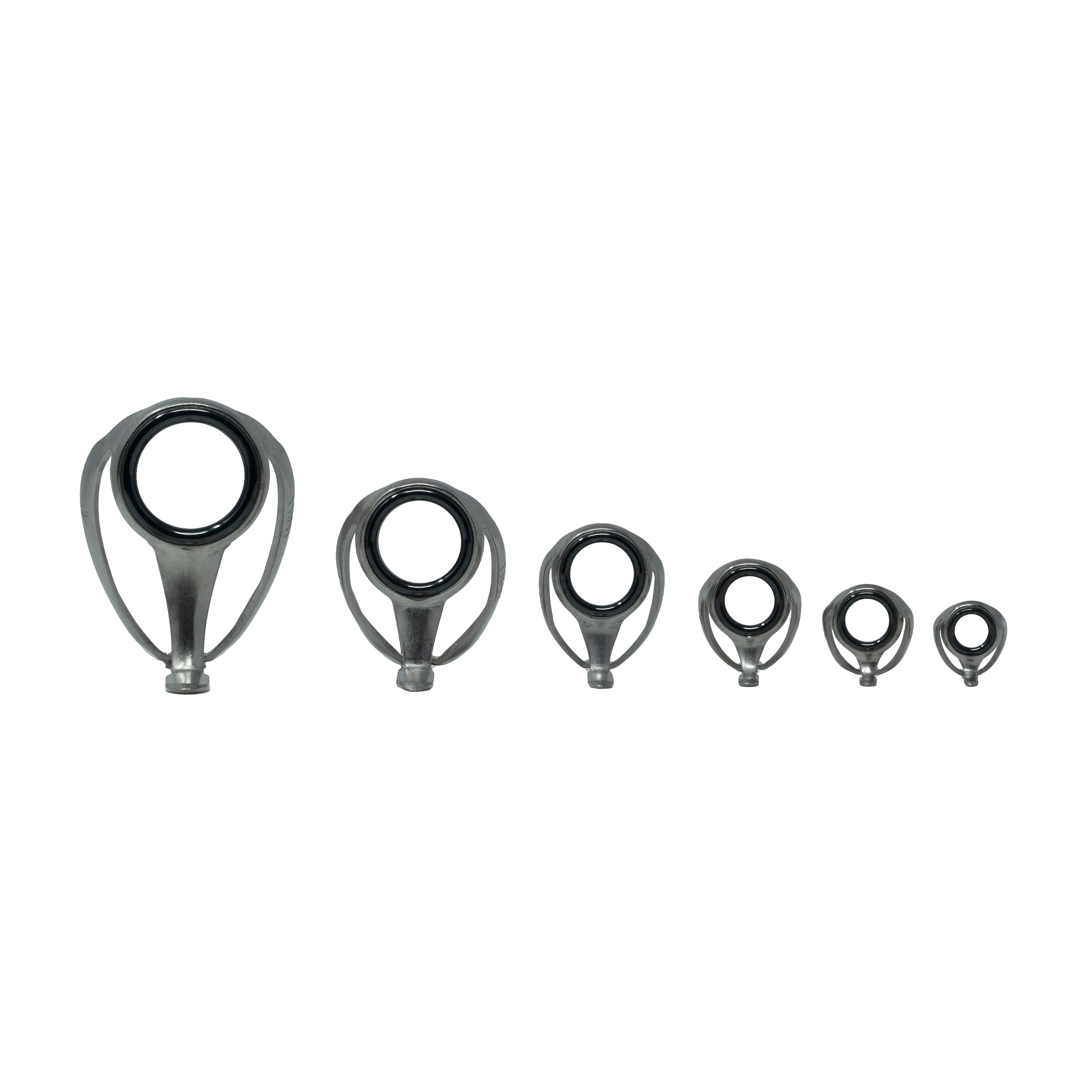

Sizes: 8mm – 25mm; Line range: 30–200 lb class
Built with RingLock technology to prevent ring loss under extreme loads
