RSFXB Black Pearl RECOIL Single Foot Snake Guides
Specifications

RSFXB Black Pearl RECOIL Single Foot Snake Guides
Product Details

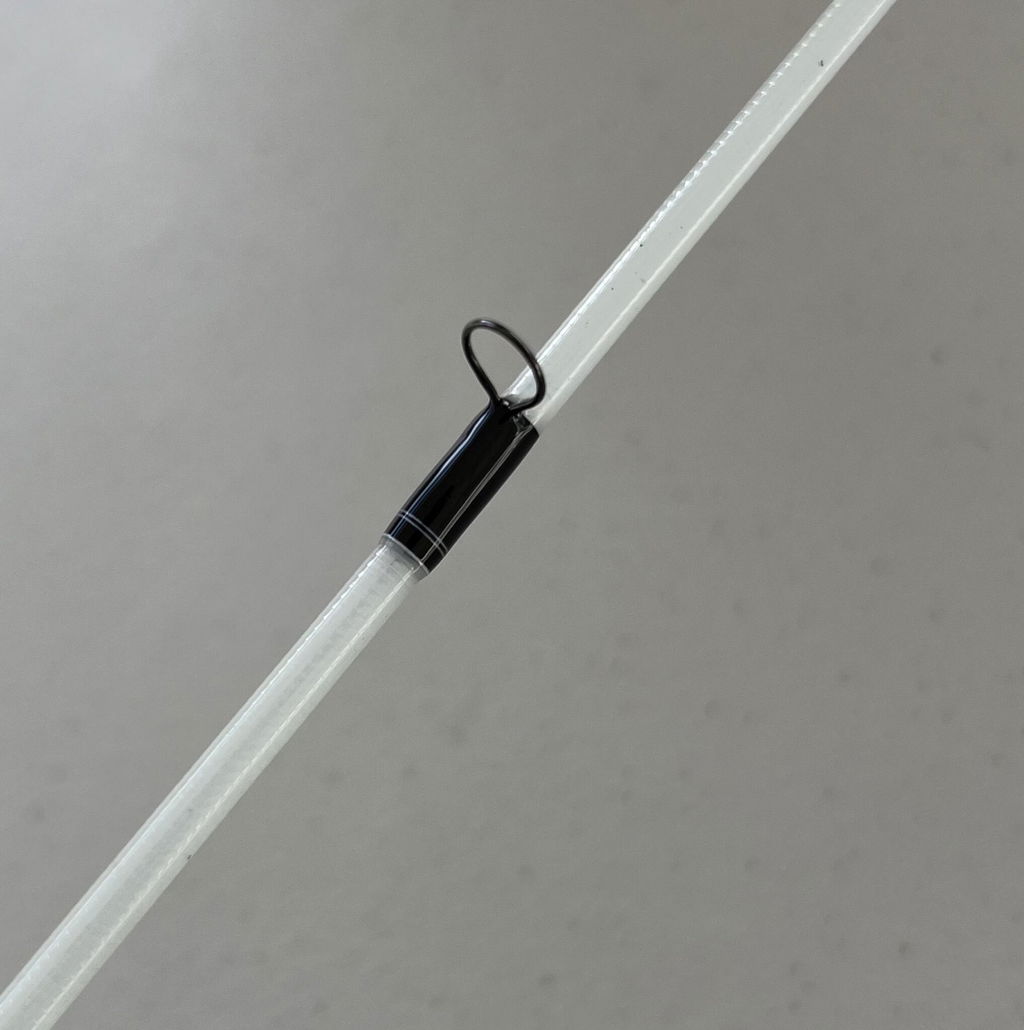

Black Pearl RECOIL single foot guides for 5wt rods and above. Nickel titanium alloy.
The RECOIL “black pearl” is a PVD (Physical Vapor Deposition) coated RECOIL guide. This is a flexible vacuum coating process that not only increase surface micro hardness but they also provide a decorative appearance on the RECOIL guides
SKU | Size | Wire Guage (Inches) | Loop Dia. I.D. (Inches) | Loop Dia. O.D. (Inches) | Height from CL of Loop off Blank | Height from Top of Loop off Blank | Pitch (Inches) - Start to End of Loop | Overall Length | Leg Length | Foot Preparation |
RSFX | 1 | 0.024 | 0.187 | 0.24 | 0.09 | 0.24 | N/A | N/A | 0.25 | Swage or Grind |
RSFX | 2 | 0.024 | 0.235 | 0.28 | 0.12 | 0.29 | N/A | N/A | 0.25 | Swage or Grind |
RSFX | 3 | 0.026 | 0.25 | 0.3 | 0.13 | 0.31 | N/A | N/A | 0.25 | Swage |
RSFX | 4 | 0.028 | 0.26 | 0.32 | 0.13 | 0.32 | N/A | N/A | 0.3 | Swage |
RSFX | 5 | 0.03 | 0.28 | 0.34 | 0.14 | 0.35 | N/A | N/A | 0.3 | Swage |
RSFX | 6 | 0.032 | 0.312 | 0.38 | 0.16 | 0.38 | N/A | N/A | 0.3 | Swage |
