American Tackle RingLock Typhoon Double Foot High Frame Guides

3.9
Sale price$7.09 USD
SKU: BTRLS-8
UPC: 099253063566
Color: TiChrome
Ring Type: Blue NanoPlasma
Size: 8
Size Chart - Typhoon Guides



Typhoon Stainless Steel Frame - Duralite Rings
Size Height A Height B Height C Weight Ring ID Foot Total Length
8 4.69 mm 10.09 mm 12.06 mm 0.5 gm 5.4 mm 6 mm 21.35 mm
10 5.52 mm 12.52 mm 14.91 mm 1.0 gm 7 mm 6.9 mm 23.85 mm
12 6.4 mm 14.75 mm 17.37 mm 1.4 gm 8.35 mm 9.2 mm 30.40 mm
16 8.74 mm 19.24 mm 22.43 mm 2.4 gm 10.5 mm 9.9 mm 34.5 mm
20 10.74 mm 23.77 mm 26.23 mm 4.1 gm 13.03 mm 12.63 mm 49.23 mm
25 17.6 mm 34.35 mm 39.51 mm 7.1 gm 17.75 mm 13.54 mm 56.68 mm
30 20.95 mm 44.42 mm 48.88 mm 10.5 gm 23.47 mm 16.5 mm 67.7 mm
40 27.84 mm 55.95 mm 61.03 mm 15.5 gm 28.11 mm 16.8 mm 71.91 mm
50 37.50 mm 78.00 mm 83.00 mm 25.0 gm 40.40 mm 22.0 mm 88.0 mm





Typhoon Stainless Steel Frame - Nanolite Rings
Size Height A Height B Height C Weight Ring ID Foot Total Length
8 4.25 mm 10.1 mm 11.8 mm 0.5 gm 5.85 mm 6 mm 21.35 mm
10 4.88 mm 12.51 mm 15.5 mm 1.0 gm 7.63 mm 6.9 mm 23.85 mm
12 5.91 mm 15.12 mm 17.3 mm 1.4 gm 9.21 mm 9.2 mm 30.4 mm
16 8.25 mm 19.8 mm 22.3 mm 2.5 gm 11.55 mm 9.9 mm 34.5 mm
20 10.79 mm 25.69 mm 28.56 mm 4.3 gm 14.9 mm 12.63 mm 49.23 mm
25 16.3 mm 35.85 mm 39.06 mm 7.5 gm 19.55 mm 13.54 mm 56.68 mm
30 21.1 mm 44.9 mm 49.32 mm 11.7 gm 23.8 mm 16.5 mm 67.7 mm
40 27.67 mm 56.17 mm 60.99 mm 17.2 gm 28.5 mm 16.8 mm 71.91 mm
50 37.50 mm 78.00 mm 83.00 mm 25.0 gm 40.40 mm 22.0 mm 88.0 mm



Typhoon Stainless Steel Frame - Nanoplasma Rings
Size Height A Height B Height C Weight Ring ID Foot Total Length
8 4.3 mm 10.09 mm 11.8 mm 0.5 gm 5.9 mm 6 mm 21.35 mm
10 5.43 mm 12.53 mm 15 mm 1.0 gm 7.6 mm 6.9 mm 23.85 mm
12 6.04 mm 15.48 mm 17.35 mm 1.4 gm 9.25 mm 9.2 mm 30.4 mm
16 8.82 mm 19.21 mm 22.8 mm 2.5 gm 11.6 mm 9.9 mm 34.5 mm
20 10.61 mm 22.40 mm 26.75 mm 4.3 gm 14 mm 12.63 mm 49.23 mm
25 16.95 mm 34.30 mm 38.48 mm 7.5 gm 17.8 mm 13.54 mm 56.68 mm
30 20.64 mm 45.13 mm 50.98 mm 11.7 gm 23.6 mm 16.5 mm 67.7 mm
40 26.61 mm 52.44 mm 59.11 mm 17.2 gm 27.40 mm 16.8 mm 71.91 mm
In stock
Free Shipping

Orders $99+ to USA lower 48. More →

Free Returns

100% Satisfaction guaranteed. More →

American Tackle RingLock Typhoon Double Foot High Frame Guides

Product Details

Designed for surf, jetty, and other long-casting applications, RingLock Typhoon™ Double Foot High Frame Guides deliver maximum line control and casting distance. Featuring American Tackle’s patented Ring Lock system, these guides virtually eliminate ring loss through a pressure-fit design, enlarged glue reservoir, and increased contact area around the ceramic ring. Built on corrosion-resistant ATLAS 316 stainless steel frames, the high-frame double-foot design provides exceptional strength and stability, even under heavy loads.

Choose from three advanced ceramic ring options:

  • Nanolite – Lightweight, ultra-strong ceramic for braid and super lines
  • Duralite – High-grade aluminum oxide for a balance of performance and value
  • NanoPlasma – Diamond-polished Nanolite with PVD coating for near-zero friction and extended line life

Features:

  • Patented Ring Lock system for secure ring retention and impact resistance
  • High-frame double-foot design for improved line control and casting distance
  • ATLAS 316 stainless steel frames for maximum strength and corrosion resistance
  • Available with Nanolite, Duralite, or NanoPlasma rings

Proposition 65 Warning


CA WARNING.

CA Proposition 65 Warning

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov

Files & Documents

You may also like

  • 5 stars: 4 (57%)
  • 4 stars: 1 (14%)
  • 3 stars: 0 (0%)
  • 2 stars: 1 (14%)
  • 1 star: 1 (14%)
T
Tony Boschi / BRR (Merritt Island, FL, US)
Stylish Eyes

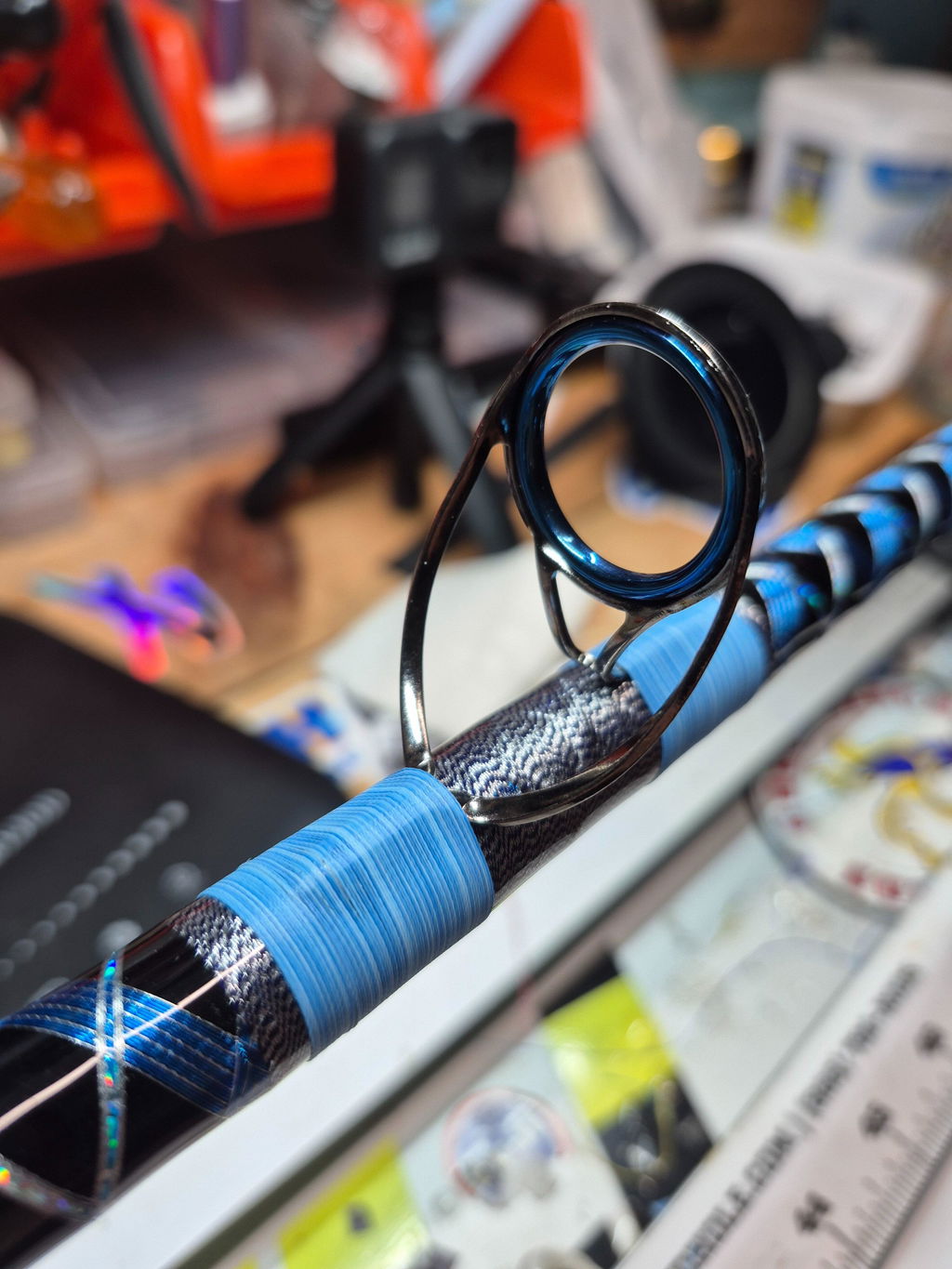

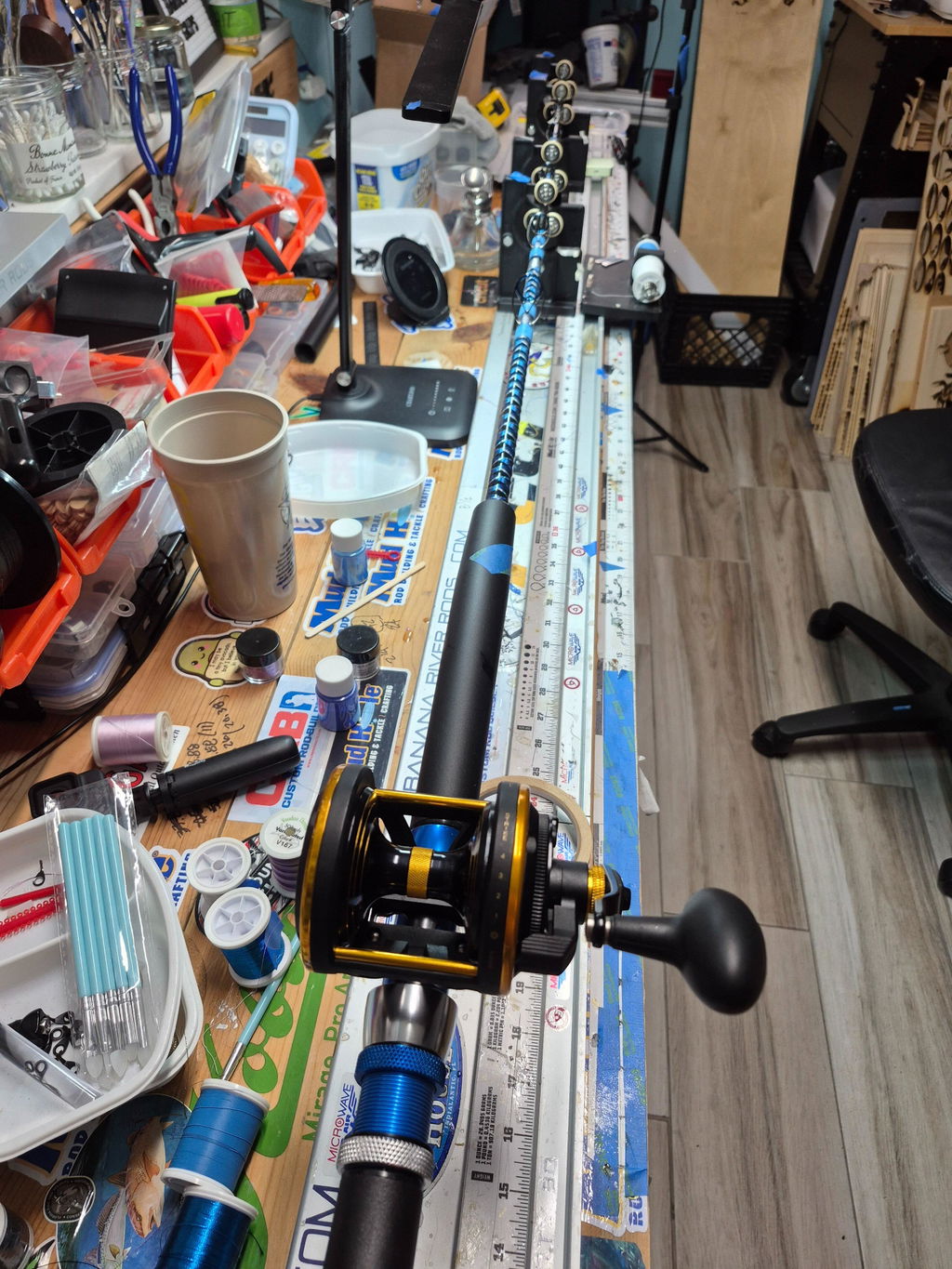

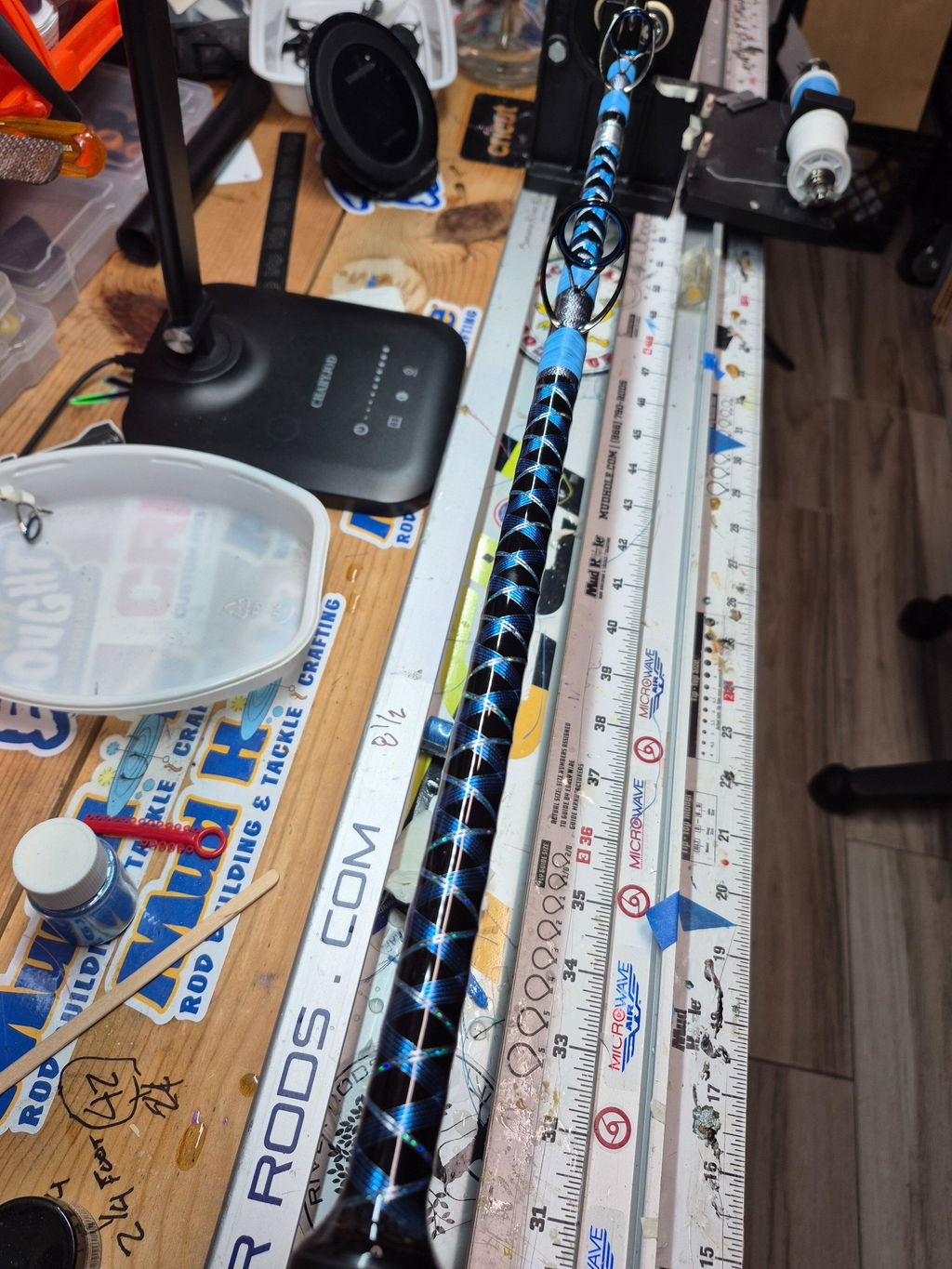

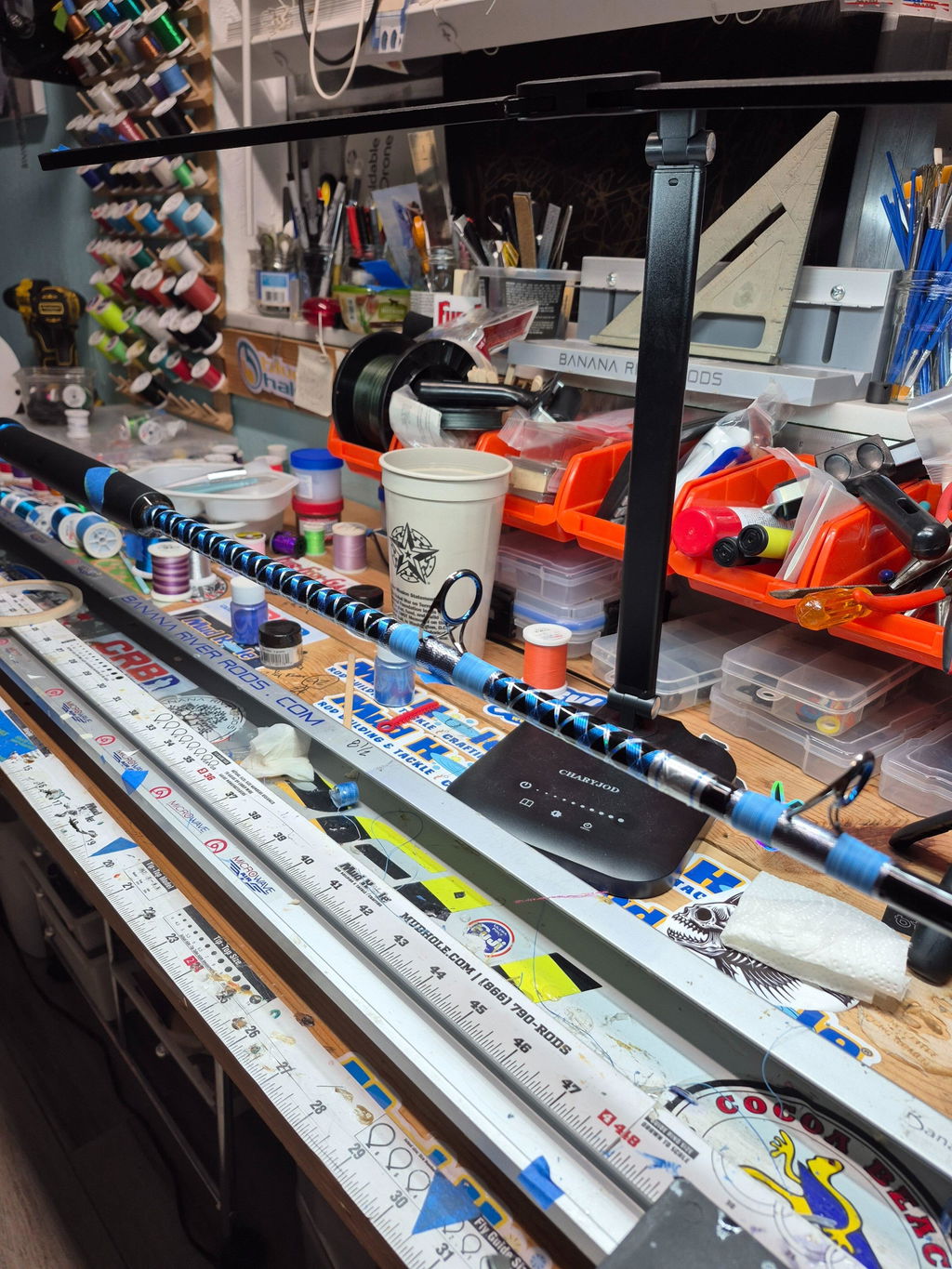

These eyes paired quite well with the MHX AHST66XH blank set up for an Gulf Tuna offshore / Amberjack yanker setup for a customer in Panama City Beach. The Blue hue on the eyes all come together with the Prowrap metalics and variegated thread. The blank wraps well and can easily be modified in length to the customer specifications. By the way, the reel shown in the pics is for setup, it is not the reel that went with this rod, it received a Avet LX 6G-2 Blue /Silver reel.

Tony Boschi / BRR review photo Tony Boschi / BRR review photo Tony Boschi / BRR review photo Tony Boschi / BRR review photo
J
James (Wilton, CT, US)
Look good, guide feet needed some work

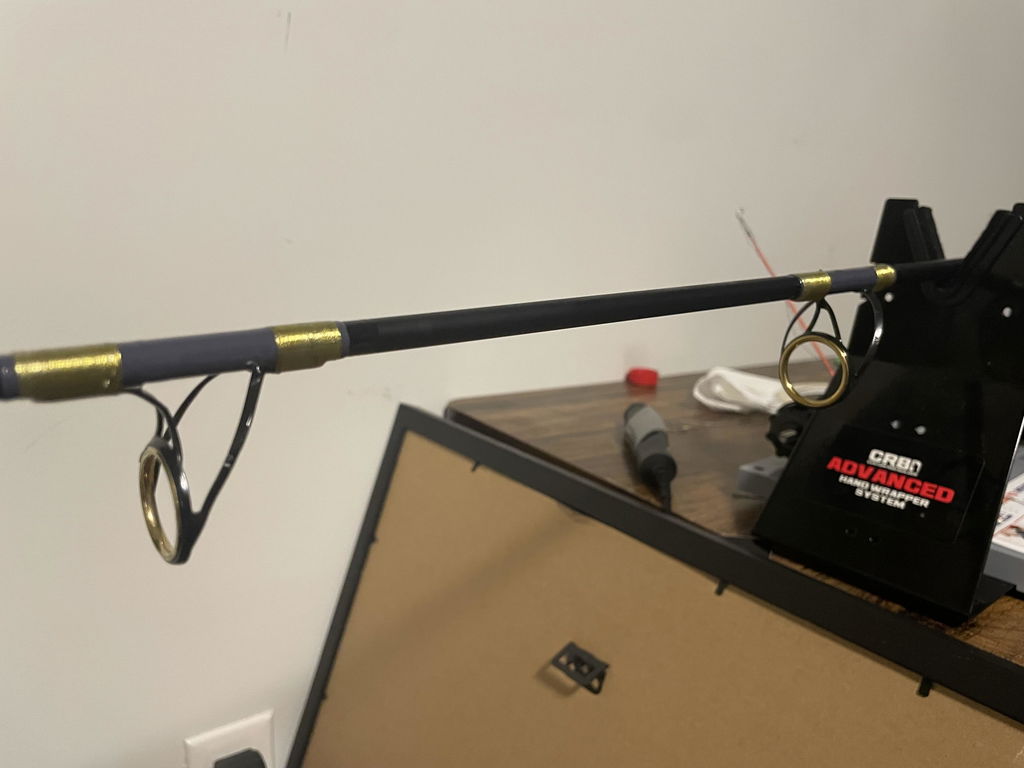

These guides look good and perform well. Used for a medium-heavy spinning setup for bluefish and stripers. Only time will tell how they last but they work well so far. Had to grind down the guide feet a fair amount to get the thread to smoothly run up the foot. Wish the feet came a little more ground down, especially the bigger sizes. Be sure to check the size chart because these are not quite as tall as other high frame guides.

James review photo
D
David (Fowler, MI, US)
RingLock Typhoon

Very nice guides.

David review photo
R
Robert Robinson (Corona, CA, US)
Great guide at a great price.

With a little sanding the guide becomes easy to wrap. Strong and dependable,

A
Adam b
Overated

These guides are ok but not as good as I expected , i should have just used a MN frame guide from the famous film makers .The frames on these were bent and needed serious work with a pair of needle nose pliers and a small file before they would sit strait on the blank and i could use them.

J
Jim Jacobs
not 40

Ordered size 40 guide. Measures 36 and staff explained that some manufacturers a 40 is actually a 40 but this product size 40 measures 36!

r
ryan repke
Excellent guides

So far so good. These guides have handled some big lake sturgeon and flathead catfish with ease. The nanolite ring is my favorite for the line I run (suffix 832). I definitely recommend these guides with the nanolite ring.

M
Marco Salamanno

How High it is the size 16? And feet lenght?

Mud Hole Custom Tackle

Height is 22.43mm and the foot length is 9.9mm per the sizing specs found at https://www.americantackle.us/product-page/ringlock-typhoon-high-frame-guides
