4.2

RingLock Casting & Stripping Guides

American Tackle Co.

SKU: BTRLC-6

$6.69 USD

Color:

TiChrome

BlackChromeTitanium

Ring Type:

Blue NanoPlasma

Blue NanoPlasmaDuraliteNanoliteGold NanoPlasma

Size:

6

Size Chart - RingLock Casting & Stripping Guides

Duralite Ring
Size	Height A	Height B	Height C	Weight	Ring ID	Foot Length	Total Length
6	3.16 mm	7.07 mm	8.69 mm	0.3 gm	3.91 mm	4.30 mm	15.66 mm
7	3.85 mm	8.51 mm	9.80 mm	0.4 gm	4.66 mm	4.89 mm	17.39 mm
8	4.5 mm	9.86 mm	11.76 mm	0.4 gm	5.36 mm	5.02 mm	18.51 mm
10	4.8 mm	11.88 mm	14.60 mm	0.7 gm	7.08 mm	5.5 mm	20.8 mm
12	6.1 mm	14.44 mm	16.66 mm	1.10 gm	8.34 mm	5.75 mm	24.5 mm
16	8.79 mm	19.31 mm	21.46 mm	2.0 gm	10.52 mm	8 mm	31 mm
20	12.95 mm	26.9 mm	28.88 mm	3.6 gm	13.95 mm	12.13 mm	44.8 mm

Nanolite Ring
Size	Height A	Height B	Height C	Weight	Ring ID	Foot Length	Total Length
6	2.73 mm	7.13 mm	8.48 mm	0.2 gm	4.40 mm	4.30 mm	15.66 mm
7	3.6 mm	8.2 mm	9.80 mm	0.3 gm	4.6 mm	4.89 mm	17.39 mm
8	4.22 mm	10.22 mm	11.78 mm	0.4 gm	5.8 mm	5.02 mm	18.51 mm
10	5.1 mm	12.74 mm	14.81 mm	0.6 gm	7.64 mm	5.5 mm	20.8 mm
12	5.7 mm	14.9 mm	16.25 mm	1.0 gm	9.2 mm	5.75 mm	24.5 mm
16	8 mm	19.6 mm	22.01 mm	1.6 gm	11.6 mm	8 mm	31 mm
20	11.8 mm	29.41 mm	28.88 mm	3.2 gm	14.88 mm	12.13 mm	44.8 mm

Nanoplasma Ring
Size	Height A	Height B	Height C	Weight	Ring ID	Foot Length	Total Length
6	2.73 mm	7.13 mm	8.48 mm	0.2 gm	4.40 mm	4.30 mm	15.66 mm
7	3.6 mm	8.2 mm	9.80 mm	0.3 gm	4.6 mm	4.89 mm	17.39 mm
8	4.22 mm	10.22 mm	11.78 mm	0.4 gm	5.8 mm	5.02 mm	18.51 mm
10	5.1 mm	12.74 mm	14.81 mm	0.6 gm	7.64 mm	5.5 mm	20.8 mm
12	5.7 mm	14.9 mm	16.25 mm	1.0 gm	9.2 mm	5.75 mm	24.5 mm
16	8 mm	19.6 mm	22.01 mm	1.6 gm	11.6 mm	8 mm	31 mm
20	11.8 mm	29.41 mm	28.88 mm	3.2 gm	14.88 mm	12.13 mm	44.8 mm

Variant

In stock

Quantity:

Free Shipping

Orders $99+ to USA lower 48. More →

Free Returns

100% Satisfaction guaranteed. More →

Specifications

SKU	BTRLC-6
Color	TiChrome/Blue
Material	Stainless Steel
Ring material	Zirconia
Ring size	6

About American Tackle Co.

With more than three decades servicing the tackle industry, Team American Tackle is still leading the way with innovations and improvements that every angler will appreciate. Being avid anglers and rod builders ourselves, we take pride in offering the ultimate in diversity, durability – and above all – performance.

American Tackle Co.RingLock Casting & Stripping Guides

$6.69 USD

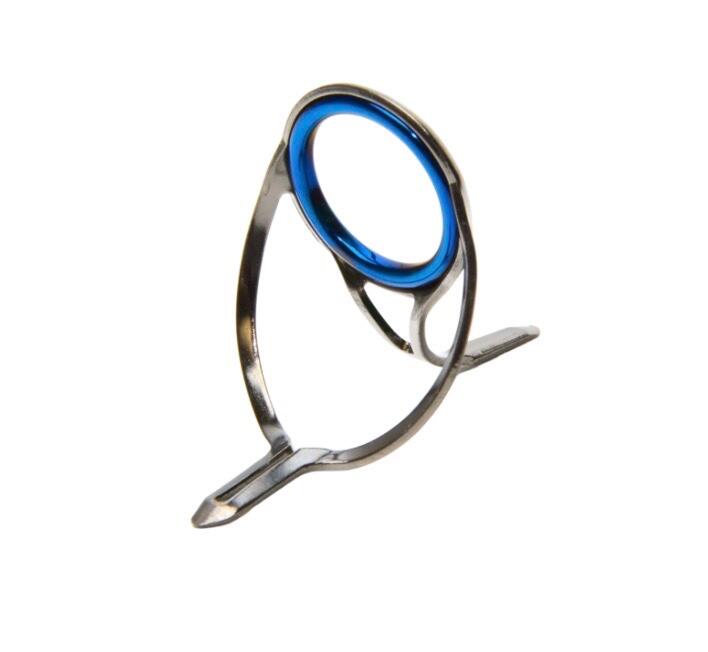

RingLock Casting & Stripping Guides

Product Details

American Tackle Ring Lock guides are designed for the ultimate in performance and durability. They incorporate a system of pressure fit, enlarged glue reservoir and increased contact area around the ceramic ring to dramatically reduce ring failure. Added bracing and unique frame features greatly reduce ring popping lateral torque through a more stable frame. ATLAS 316SS frame material adds tremendous strength to weight ratio giving this series of guides the edge to outlast and outperform all others.

SPECIAL DESIGN
RING LOCK SYSTEM

The Ring Lock system is focused on preventing ring loss and protection from impact to provide the strongest and most innovative guide on the market today!

ATLAS 316 stainless steel frame material

ATLAS 316SS
STAINLESS STEEL

Frames comprised of 316SS stainless steel adds tremendous strength to weight ratio giving this series of guides the edge to outlast and outperform all others.

RING LOCK
OFFICIALLY PATENTED

The American Tackle Company is proud to own the official Ring Lock Patented Design. US-Patent No. D627,032

Nanolite is the ultimate ceramic ring material

Nanolite Ring

The strength of our NanoLite ring allows elimination of material which results in reduced weight without sacrificing strength. Hardness and low coefficient of friction means these rings will easily handle all of today's modern braids and super lines.

Duralite offers durability and functionality at a low entry price

Duralite Ring

A new and improved, proprietary high grade Aluminum Oxide based ring material allows for the reduction of material volume meaning lighter weight and higher compression strength. Economical and highly durable, these rings are popular with rod manufacturers.

NanoPlasma Ring

Our NanoPlasma ring features high tensile strength, diamond polished, braid proof NanoLite ring with rounded ID's and a new PVD Titanium Nitride or Titanium Oxide coating. The Plasma deposition ring gives you a near zero coefficient of friction extending line life while increasing hardness.

Warning: California's Proposition 65

Proposition 65 Warning

CA WARNING.

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov

Files & Documents

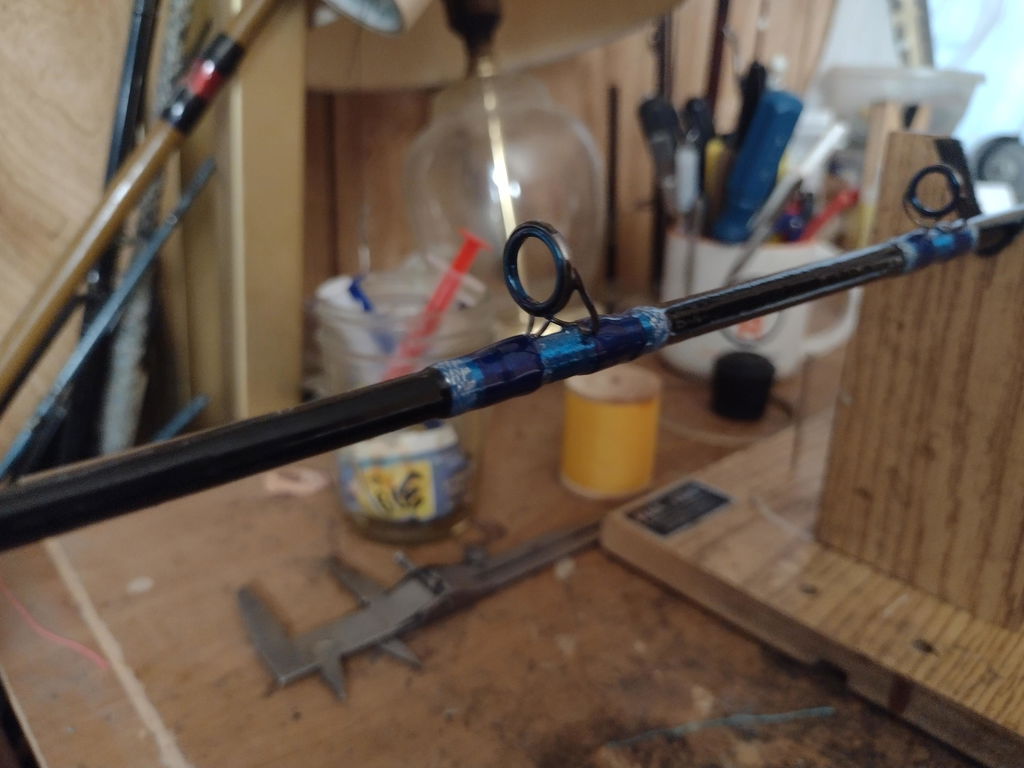

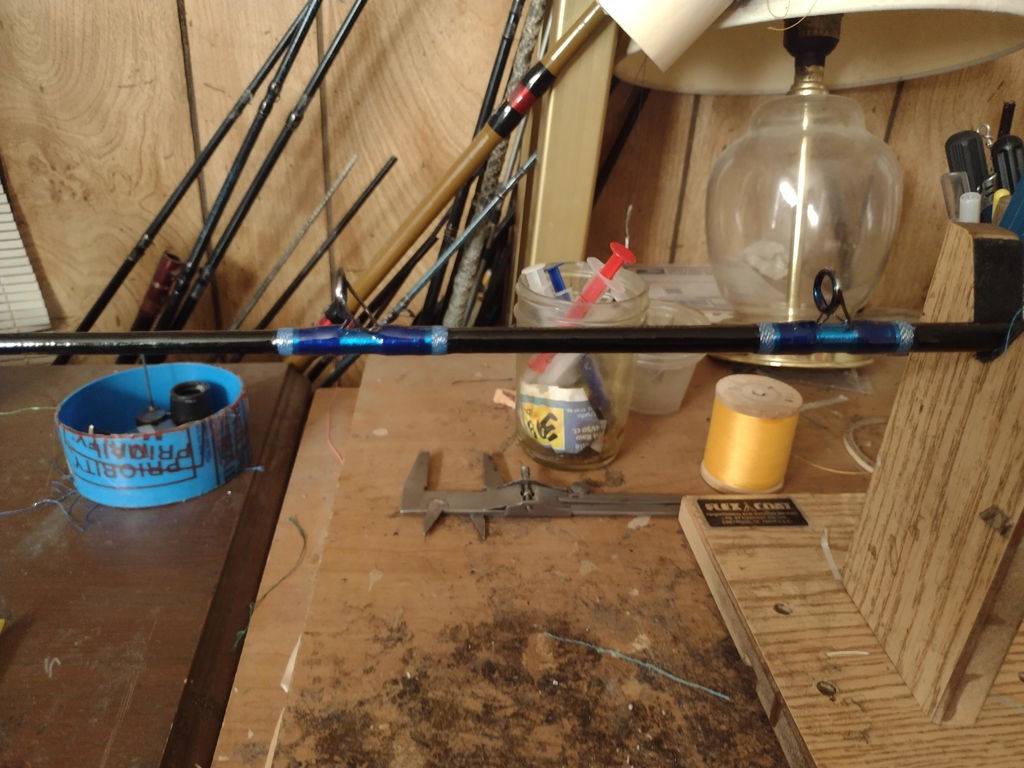

I bought a 16 and 10 for a stripper set on a 7wt fast action rod. The guides themselves seem fairly well made, with no real issues. You will need to file the foot a little to get a more gradual ramp or else it will be hard to stop thread from slipping off. Just remember don’t use a permanent marker to reapply a black paint (it will react with epoxy). Use a liquid based black paint marker, or a quick shot of spray paint.

No issues with trueness of the guide. Overall a great guide for the price and will be buying more for future builds.

Great guides for price

I have built many rods. Partial to single foot guides. I like the ringlock guides for weight and durability. Love the Titan titanium guides for saltwater here are the guides on a Safe Salt 3 11 wt. Fished a lot in saltwater for tarpon 6-7 trips no impact. More expensive but if building for salt spend the extra $40 for the guides.
