MHX Mag Taper Rod Blanks
Specifications
| SKU | MB782-MHX |
|---|---|
| Action | Fast |
| Butt diameter | 0.46 in |
| Classification | Freshwater |
| Color | Slate |
| Fishing technique | Mag Bass |
| Length | 78 in |
| Line weight | 8-14 lb. |
| Lure weight | 3/16 - 5/8 oz. |
| Material | 45MM Toray Fiber |
| Pieces | 1 |
| Power | Medium |
| Target species | Bass, Redfish, and Walleye |
| Tip size | 5 |
| Weight | 1.85 oz |
About MHX
MHX rod building blanks are the culmination of decades of combined experience in fishing rod manufacturing, custom rod building and fishing. Incorporating a series of advanced material & manufacturing techniques, application-specific designs, and warranty innovations, MHX has become the benchmark for quality and performance.
Limited Lifetime Warranty
If it is determined that your blank is within the designated warranty period and failed due to a defect in material or workmanship your rod blank will be replaced for the warranty service fee which includes Shipping/handling.
These warranties are limited to the repair or replacement of the rod blank and does not cover rod components.

MHX Mag Taper Rod Blanks
Product Details
MHX Mag Taper Rod Blanks – The Ultimate Workhorse
Built on the foundation of ultra resin-infused 45M modulus Toray graphite fiber, the MHX Mag Taper Series is the definition of a versatile, all-purpose rod blank. Designed with a powerful mid and butt section and a fast, responsive tip, these blanks offer the strength to control hard-charging fish and the finesse needed for precise bait presentation. Whether you're hitting your favorite local pond, targeting lunkers on the bank, or working jigs along an oyster bar for redfish, this series should be your "go to".
While originally designed for freshwater species like largemouth, smallmouth, peacock bass, walleye, and pike, the Mag Taper Series is consistently a top choice for inshore saltwater, handling redfish, snook, speckled trout, and more with confidence. If you want one blank that can do it all—this is the one.
Key Features:
- Ultra resin-infused 45M modulus Toray graphite fiber construction
- Mag Taper: strong mid and butt sections with a fast, responsive tip
- Multiple Color Options for some models.
- Ideal for crossover applications in freshwater and inshore saltwater
Best For:
- Largemouth, Smallmouth & Peacock Bass
- Big Walleye, Mid-Size Pike
- Inshore species like Redfish, Snook, and Speckled Trout
- Jigging, spinnerbaits, plastics, and power fishing techniques
If you’re building one rod to do it all—fresh or salt—the MHX Mag Taper is built for the job.

Get More with MHX
- Protective packet
- MHX blank spec decal
- Individually serialized decal
- MHX sticker
- Cleaning wipe
- Tip protector

Individual Serial Numbers

Limited Lifetime Warranty
MHX Mag Taper Rod Blanks
Featured Technology

MHX 45 Million Modulus Toray Fiber
Toray 12K Intermediate modulus Fiber of 42-47 million modulus with 853 ksi and an Ultra Resin System.

Ultra Resin System
Hard resin formula works to boost rod blank material's impact resistance, sensitivity, and overall straightness.
Warning: California's Proposition 65
Proposition 65 Warning
CA WARNING.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov
Product Chart
MB782 / 6'6" / 8-14 lb. / Slate
MB782 / 6'6" / 8-14 lb. / Slate
MB783 / 6'6" / 10-17 lb. / Slate
MB783 / 6'6" / 10-17 lb. / Slate
MB783 / 6'6" / 10-17 lb. / White
MB783 / 6'6" / 10-17 lb. / White
MB783 / 6'6" / 10-17 lb. / Metallic Black Pearl
MB783 / 6'6" / 10-17 lb. / Metallic Black Pearl
MB783 / 6'6" / 10-17 lb. / Metallic Blue
MB783 / 6'6" / 10-17 lb. / Metallic Blue
MB783 / 6'6" / 10-17 lb. / Metallic Copper
MB783 / 6'6" / 10-17 lb. / Metallic Copper
MB783 / 6'6" / 10-17 lb. / Metallic Green
MB783 / 6'6" / 10-17 lb. / Metallic Green
MB783 / 6'6" / 10-17 lb. / Metallic Gunsmoke
MB783 / 6'6" / 10-17 lb. / Metallic Gunsmoke
MB783 / 6'6" / 10-17 lb. / Metallic Light Blue
MB783 / 6'6" / 10-17 lb. / Metallic Light Blue
MB783 / 6'6" / 10-17 lb. / Metallic Lime Green
MB783 / 6'6" / 10-17 lb. / Metallic Lime Green
MB783 / 6'6" / 10-17 lb. / Metallic Pink
MB783 / 6'6" / 10-17 lb. / Metallic Pink
MB783 / 6'6" / 10-17 lb. / Metallic Purple
MB783 / 6'6" / 10-17 lb. / Metallic Purple
MB783 / 6'6" / 10-17 lb. / Metallic Red
MB783 / 6'6" / 10-17 lb. / Metallic Red
MB783 / 6'6" / 10-17 lb. / Metallic Seafoam
MB783 / 6'6" / 10-17 lb. / Metallic Seafoam
MB783 / 6'6" / 10-17 lb. / Metallic Silver
MB783 / 6'6" / 10-17 lb. / Metallic Silver
MB784 / 6'6" / 12-20 lb. / Slate
MB784 / 6'6" / 12-20 lb. / Slate
MB785 / 6'6" / 12-25 lb. / Slate
MB785 / 6'6" / 12-25 lb. / Slate
MB842 / 7'0" / 8-15 lb. / Slate
MB842 / 7'0" / 8-15 lb. / Slate
MB842-2 / 7'0" / 8-15 lb. / 2pc / Slate
MB842-2 / 7'0" / 8-15 lb. / 2pc / Slate
MB843 / 7'0" / 10-17 lb. / Slate
MB843 / 7'0" / 10-17 lb. / Slate
MB843 / 7'0" / 10-17 lb. / White
MB843 / 7'0" / 10-17 lb. / White
MB843 / 7'0" / 10-17 lb. / Metallic Black Pearl
MB843 / 7'0" / 10-17 lb. / Metallic Black Pearl
MB843 / 7'0" / 10-17 lb. / Metallic Blue
MB843 / 7'0" / 10-17 lb. / Metallic Blue
MB843 / 7'0" / 10-17 lb. / Metallic Copper
MB843 / 7'0" / 10-17 lb. / Metallic Copper
MB843 / 7'0" / 10-17 lb. / Metallic Green
MB843 / 7'0" / 10-17 lb. / Metallic Green
MB843 / 7'0" / 10-17 lb. / Metallic Gunsmoke
MB843 / 7'0" / 10-17 lb. / Metallic Gunsmoke
MB843 / 7'0" / 10-17 lb. / Metallic Light Blue
MB843 / 7'0" / 10-17 lb. / Metallic Light Blue
MB843 / 7'0" / 10-17 lb. / Metallic Lime Green
MB843 / 7'0" / 10-17 lb. / Metallic Lime Green
MB843 / 7'0" / 10-17 lb. / Metallic Pink
MB843 / 7'0" / 10-17 lb. / Metallic Pink
MB843 / 7'0" / 10-17 lb. / Metallic Purple
MB843 / 7'0" / 10-17 lb. / Metallic Purple
MB843 / 7'0" / 10-17 lb. / Metallic Red
MB843 / 7'0" / 10-17 lb. / Metallic Red
MB843 / 7'0" / 10-17 lb. / Metallic Seafoam
MB843 / 7'0" / 10-17 lb. / Metallic Seafoam
MB843 / 7'0" / 10-17 lb. / Metallic Silver
MB843 / 7'0" / 10-17 lb. / Metallic Silver
MB843-2 / 7'0" / 10-17 lb. / 2pc / Slate
MB843-2 / 7'0" / 10-17 lb. / 2pc / Slate
MB844 / 7'0" / 12-20 lb. / Slate
MB844 / 7'0" / 12-20 lb. / Slate
MB844 / 7'0" / 12-20 lb. / White
MB844 / 7'0" / 12-20 lb. / White
MB844-2 / 7'0" / 12-20 lb. / 2pc / Slate
MB844-2 / 7'0" / 12-20 lb. / 2pc / Slate
MB845 / 7'0" / 15-30 lb. / Slate
MB845 / 7'0" / 15-30 lb. / Slate
MB873 / 7'3" / 10-17 lb. / Slate
MB873 / 7'3" / 10-17 lb. / Slate
MB873 / 7'3" / 10-17 lb. / White
MB873 / 7'3" / 10-17 lb. / White
MB873 / 7'3" / 10-17 lb. / Metallic Black Pearl
MB873 / 7'3" / 10-17 lb. / Metallic Black Pearl
MB873 / 7'3" / 10-17 lb. / Metallic Blue
MB873 / 7'3" / 10-17 lb. / Metallic Blue
MB873 / 7'3" / 10-17 lb. / Metallic Copper
MB873 / 7'3" / 10-17 lb. / Metallic Copper
MB873 / 7'3" / 10-17 lb. / Metallic Green
MB873 / 7'3" / 10-17 lb. / Metallic Green
MB873 / 7'3" / 10-17 lb. / Metallic Gunsmoke
MB873 / 7'3" / 10-17 lb. / Metallic Gunsmoke
MB873 / 7'3" / 10-17 lb. / Metallic Light Blue
MB873 / 7'3" / 10-17 lb. / Metallic Light Blue
MB873 / 7'3" / 10-17 lb. / Metallic Lime Green
MB873 / 7'3" / 10-17 lb. / Metallic Lime Green
MB873 / 7'3" / 10-17 lb. / Metallic Pink
MB873 / 7'3" / 10-17 lb. / Metallic Pink
MB873 / 7'3" / 10-17 lb. / Metallic Purple
MB873 / 7'3" / 10-17 lb. / Metallic Purple
MB873 / 7'3" / 10-17 lb. / Metallic Red
MB873 / 7'3" / 10-17 lb. / Metallic Red
MB873 / 7'3" / 10-17 lb. / Metallic Seafoam
MB873 / 7'3" / 10-17 lb. / Metallic Seafoam
MB873 / 7'3" / 10-17 lb. / Metallic Silver
MB873 / 7'3" / 10-17 lb. / Metallic Silver
MB874 / 7'3" / 12-20 lb. / Slate
MB874 / 7'3" / 12-20 lb. / Slate
MB874 / 7'3" / 12-20 lb. / White
MB874 / 7'3" / 12-20 lb. / White
MB874 / 7'3" / 12-20 lb. / Metallic Black Pearl
MB874 / 7'3" / 12-20 lb. / Metallic Black Pearl
MB874 / 7'3" / 12-20 lb. / Metallic Blue
MB874 / 7'3" / 12-20 lb. / Metallic Blue
MB874 / 7'3" / 12-20 lb. / Metallic Copper
MB874 / 7'3" / 12-20 lb. / Metallic Copper
MB874 / 7'3" / 12-20 lb. / Metallic Green
MB874 / 7'3" / 12-20 lb. / Metallic Green
MB874 / 7'3" / 12-20 lb. / Metallic Gunsmoke
MB874 / 7'3" / 12-20 lb. / Metallic Gunsmoke
MB874 / 7'3" / 12-20 lb. / Metallic Light Blue
MB874 / 7'3" / 12-20 lb. / Metallic Light Blue
MB874 / 7'3" / 12-20 lb. / Metallic Lime Green
MB874 / 7'3" / 12-20 lb. / Metallic Lime Green
MB874 / 7'3" / 12-20 lb. / Metallic Pink
MB874 / 7'3" / 12-20 lb. / Metallic Pink
MB874 / 7'3" / 12-20 lb. / Metallic Purple
MB874 / 7'3" / 12-20 lb. / Metallic Purple
MB874 / 7'3" / 12-20 lb. / Metallic Red
MB874 / 7'3" / 12-20 lb. / Metallic Red
MB874 / 7'3" / 12-20 lb. / Metallic Seafoam
MB874 / 7'3" / 12-20 lb. / Metallic Seafoam
MB874 / 7'3" / 12-20 lb. / Metallic Silver
MB874 / 7'3" / 12-20 lb. / Metallic Silver
MB903 / 7'6" / 10-17 lb. / Slate
MB903 / 7'6" / 10-17 lb. / Slate
MB904 / 7'6" / 12-20 lb. / Slate
MB904 / 7'6" / 12-20 lb. / Slate
MB941 / 7'10" / 10-17 lb. / Slate
MB941 / 7'10" / 10-17 lb. / Slate
Files & Documents
MHX Mag Taper Rod Blanks

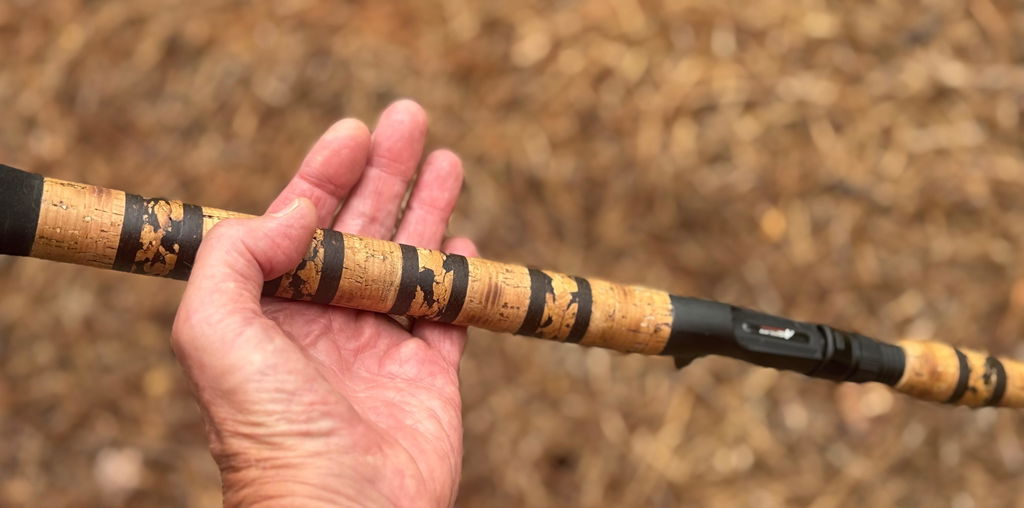

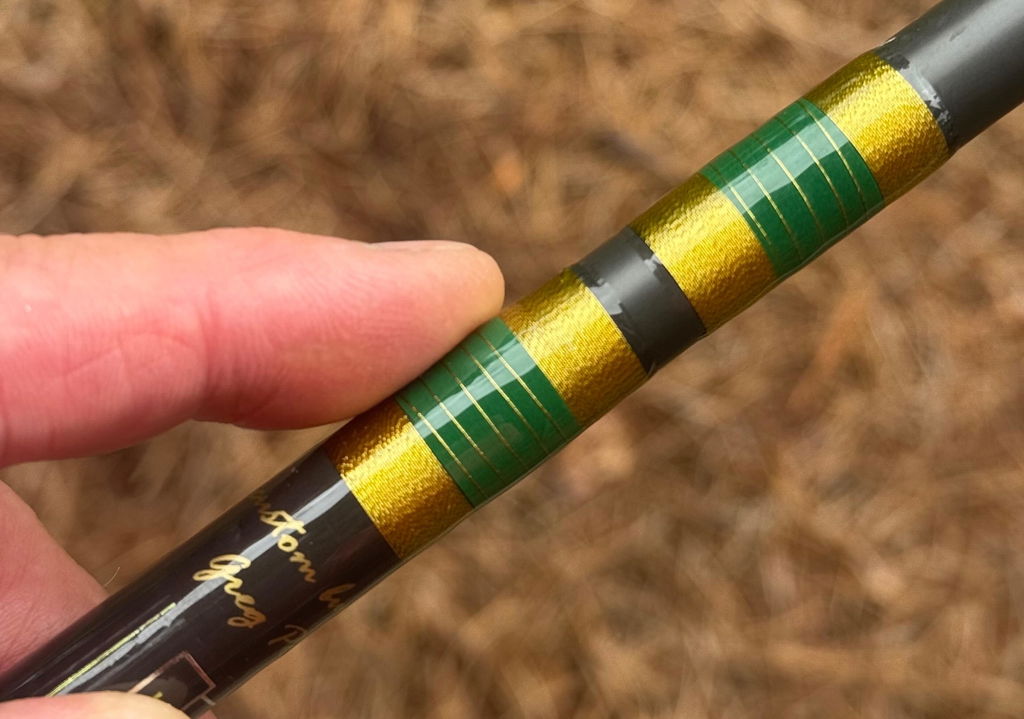

Love it
I love this blank. The action is perfect for shallow water reds and snook. The color was a perfect match for a friend from Ole Miss to
