American Tackle AGR Radiused Aluminum Gimbals
Specifications
American Tackle AGR Radiused Aluminum Gimbals
Product Details

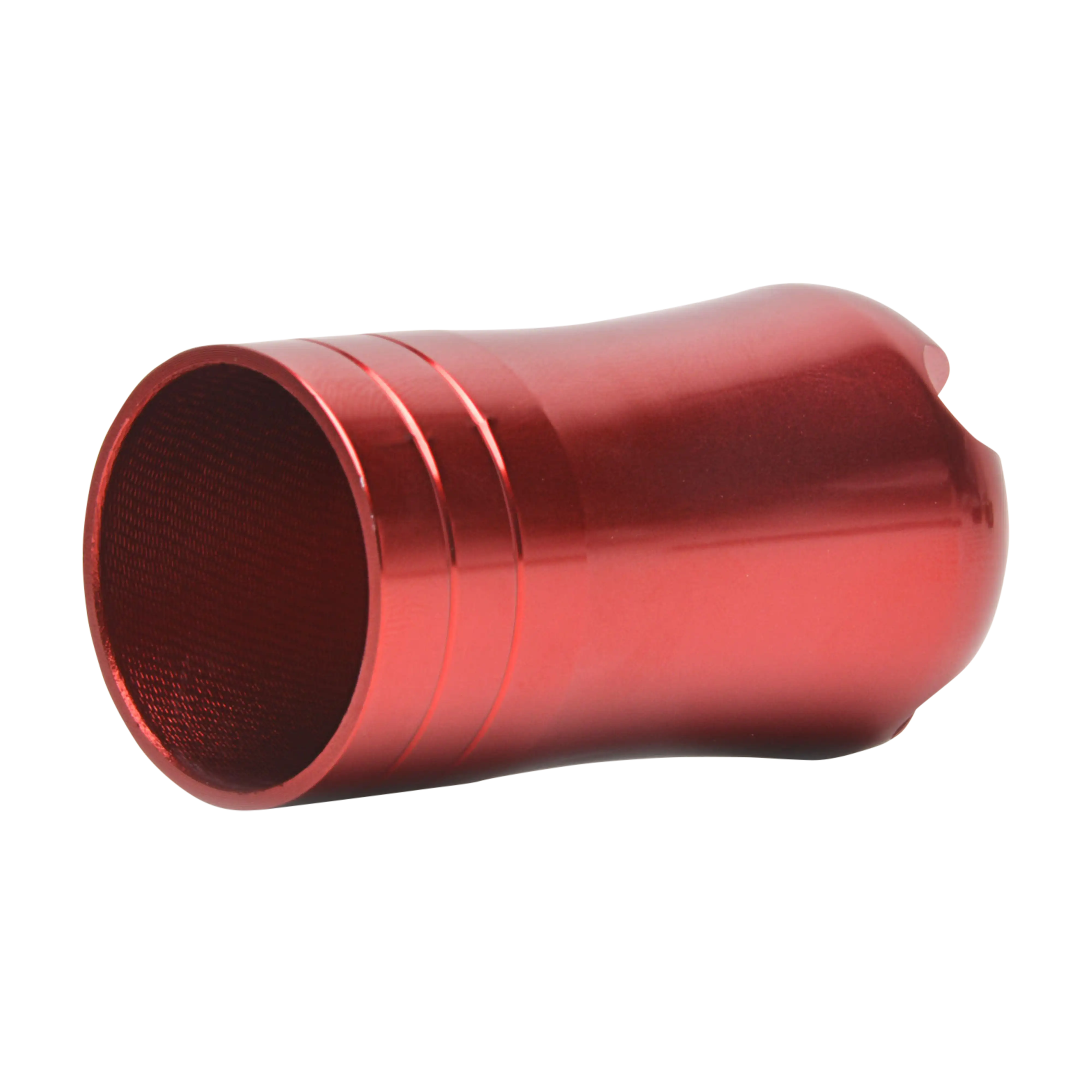

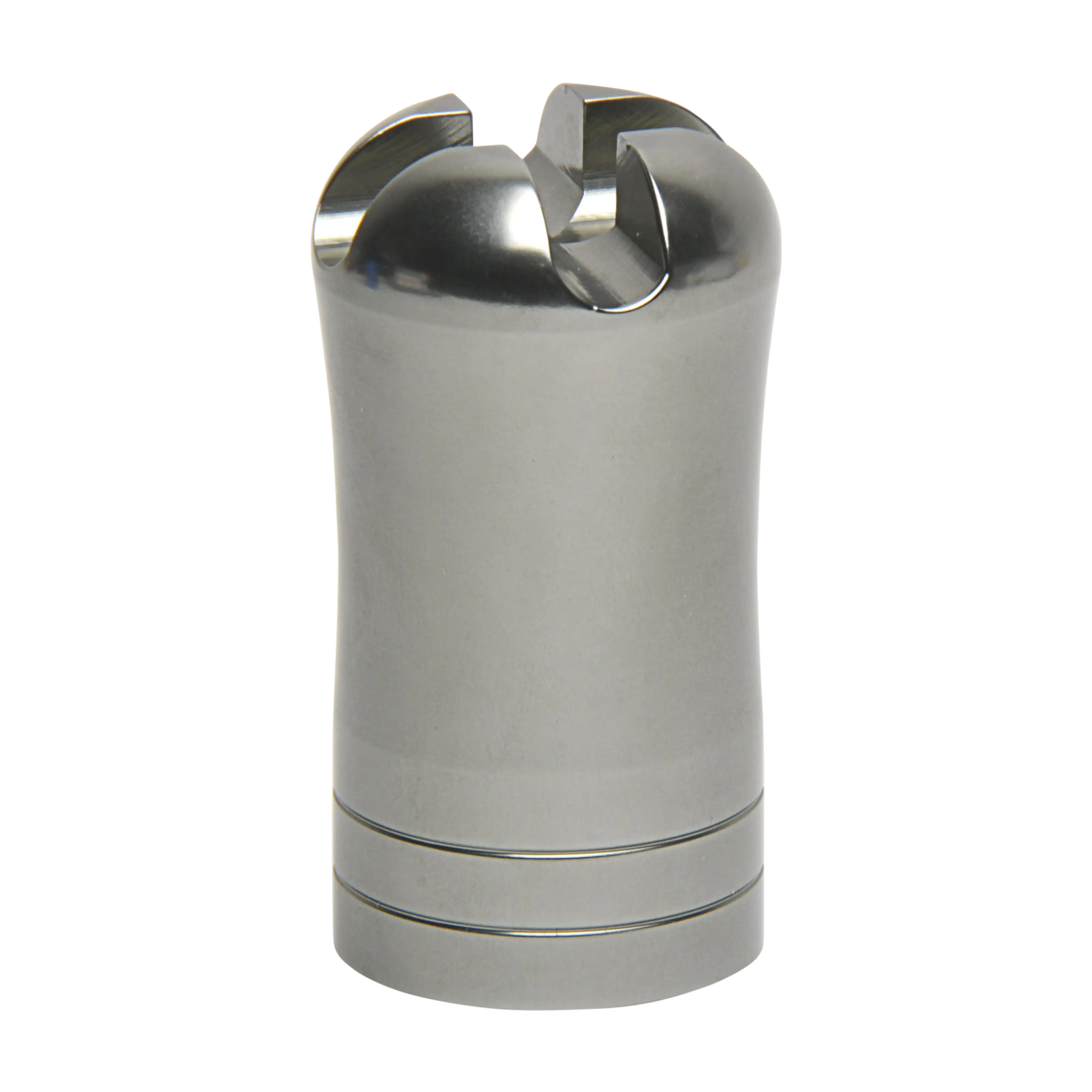

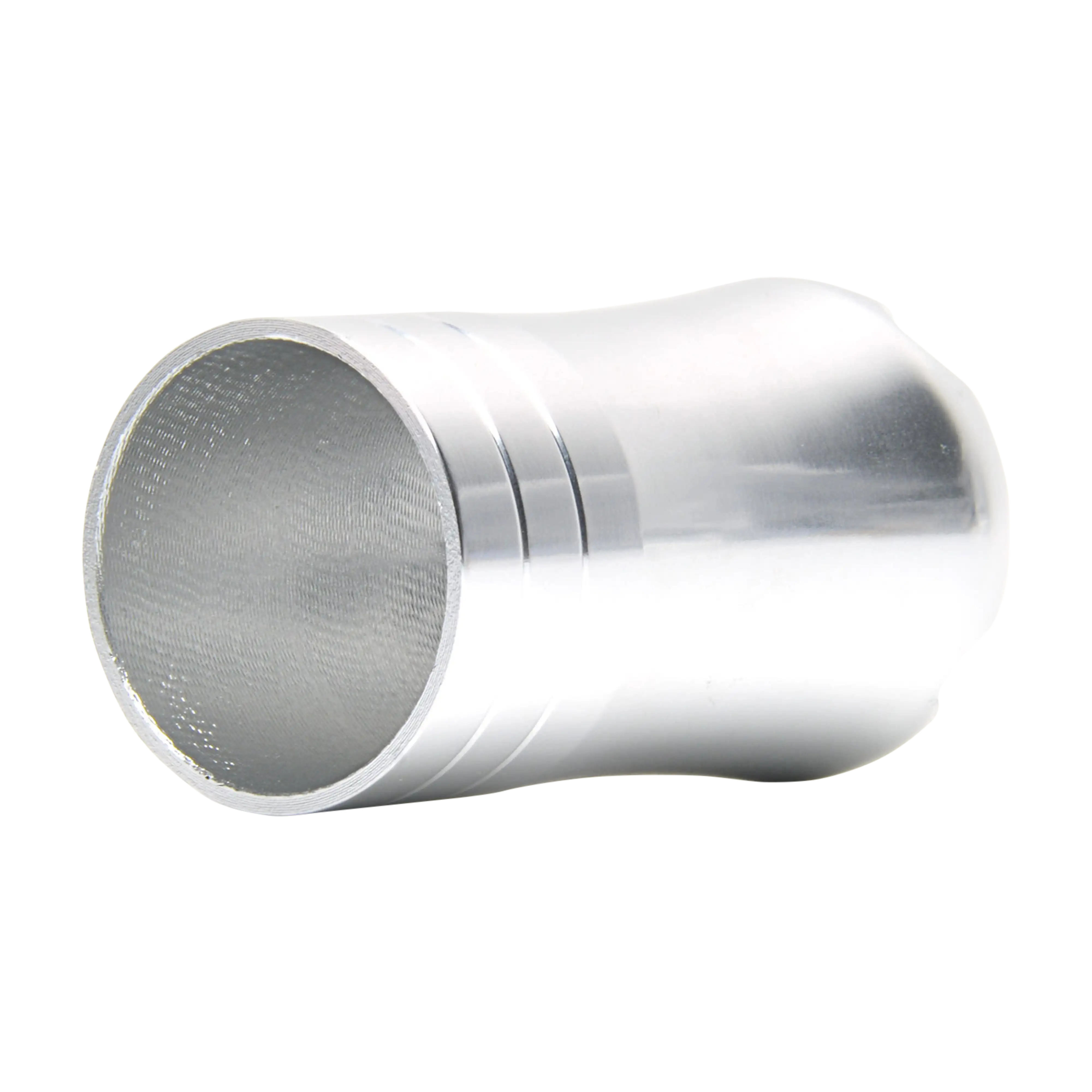

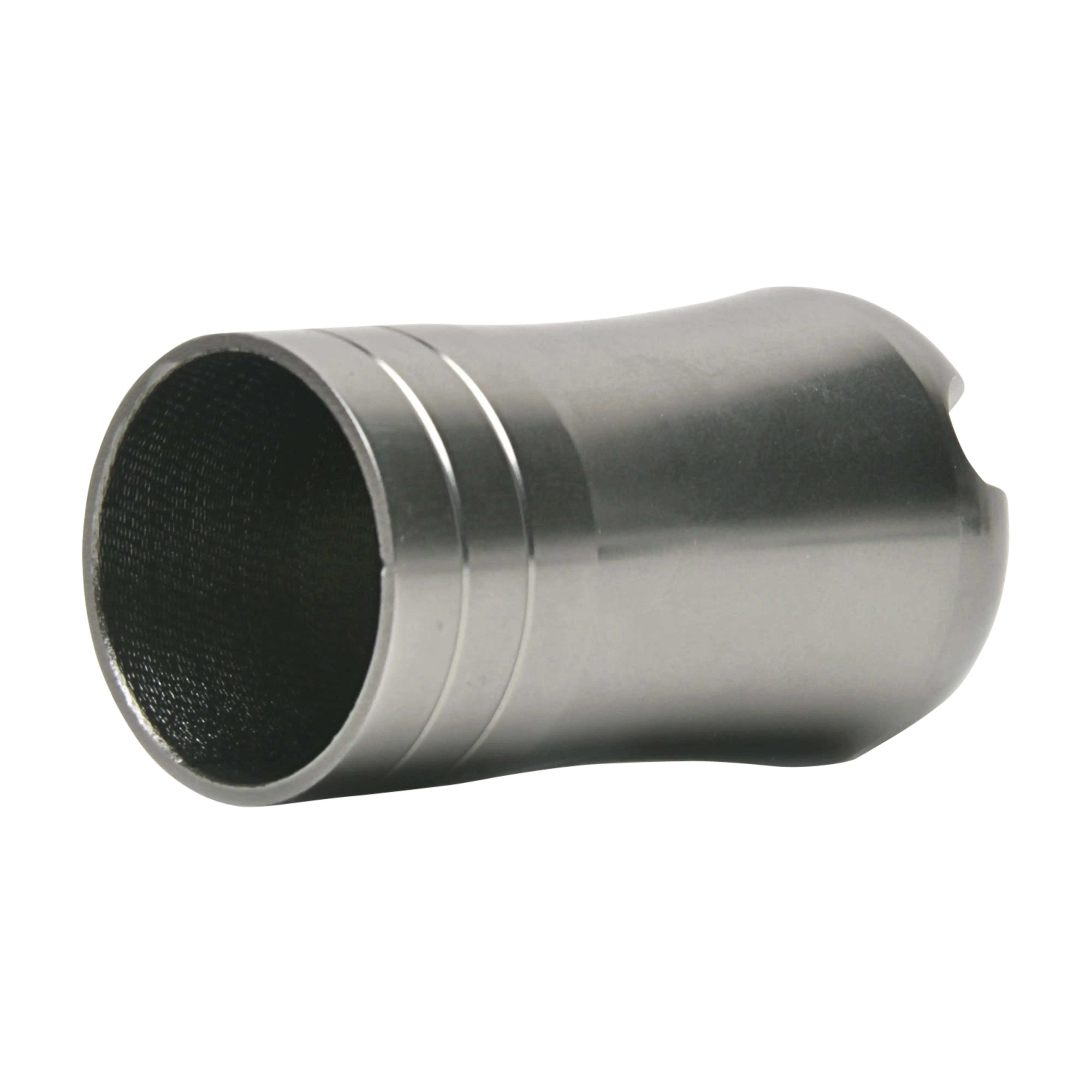

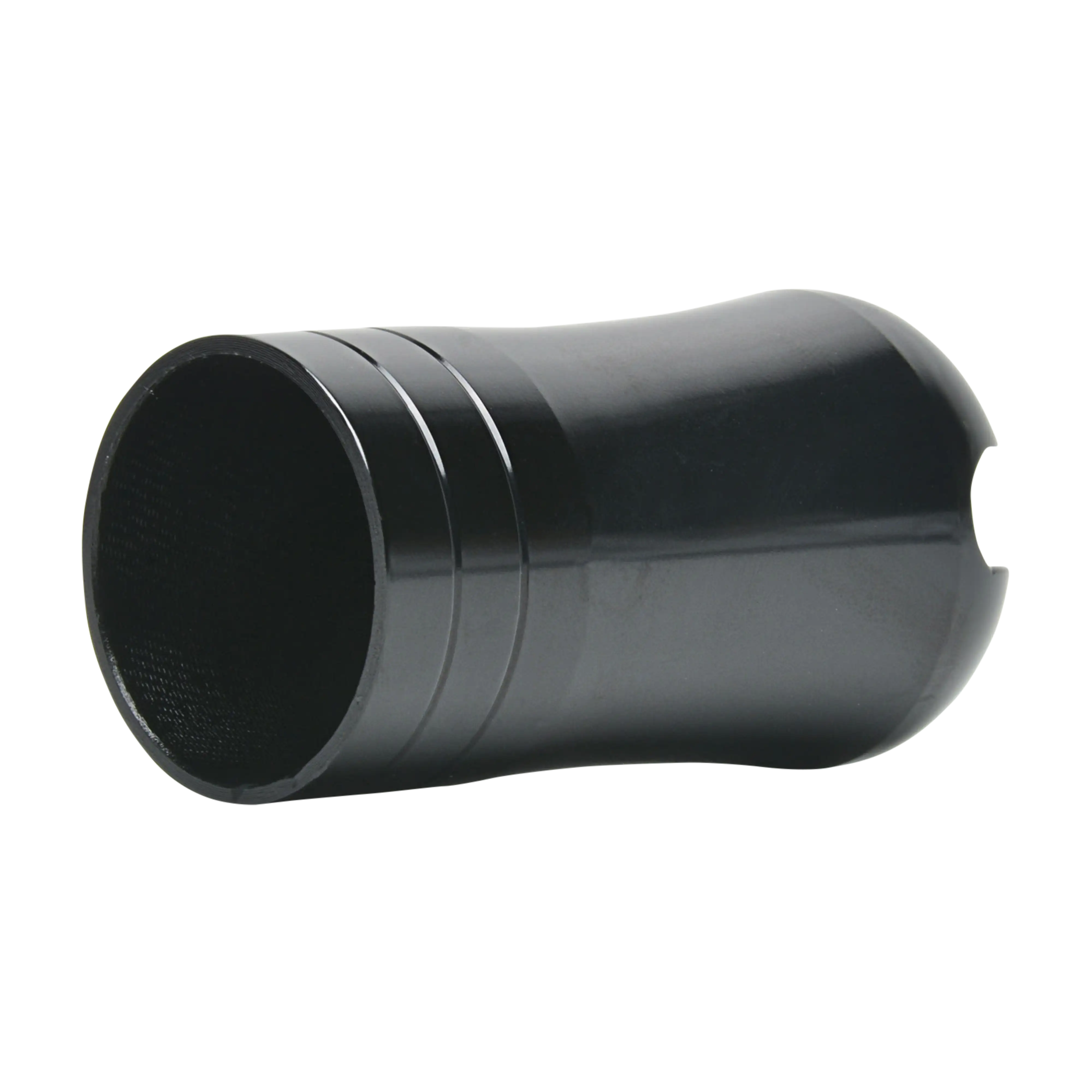

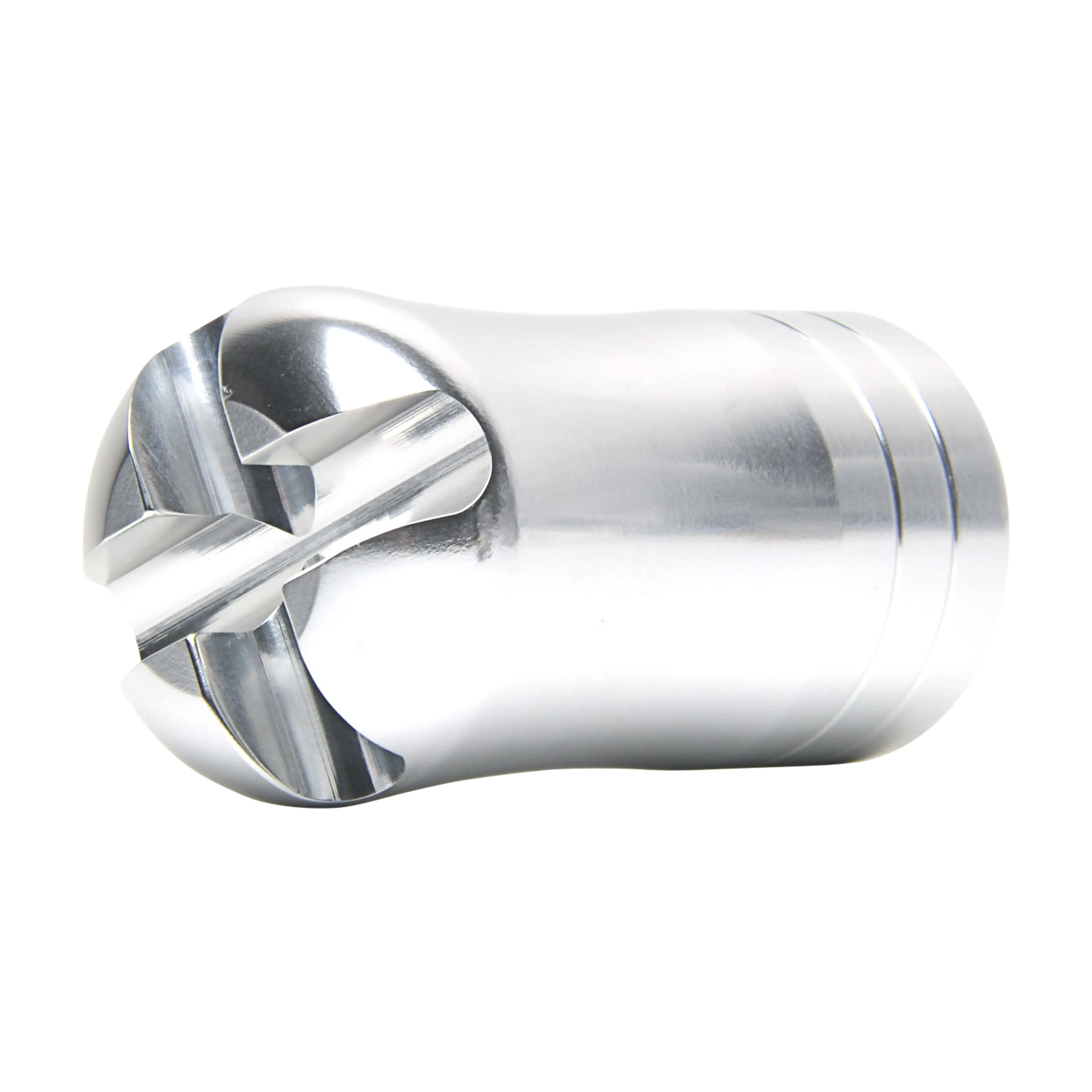

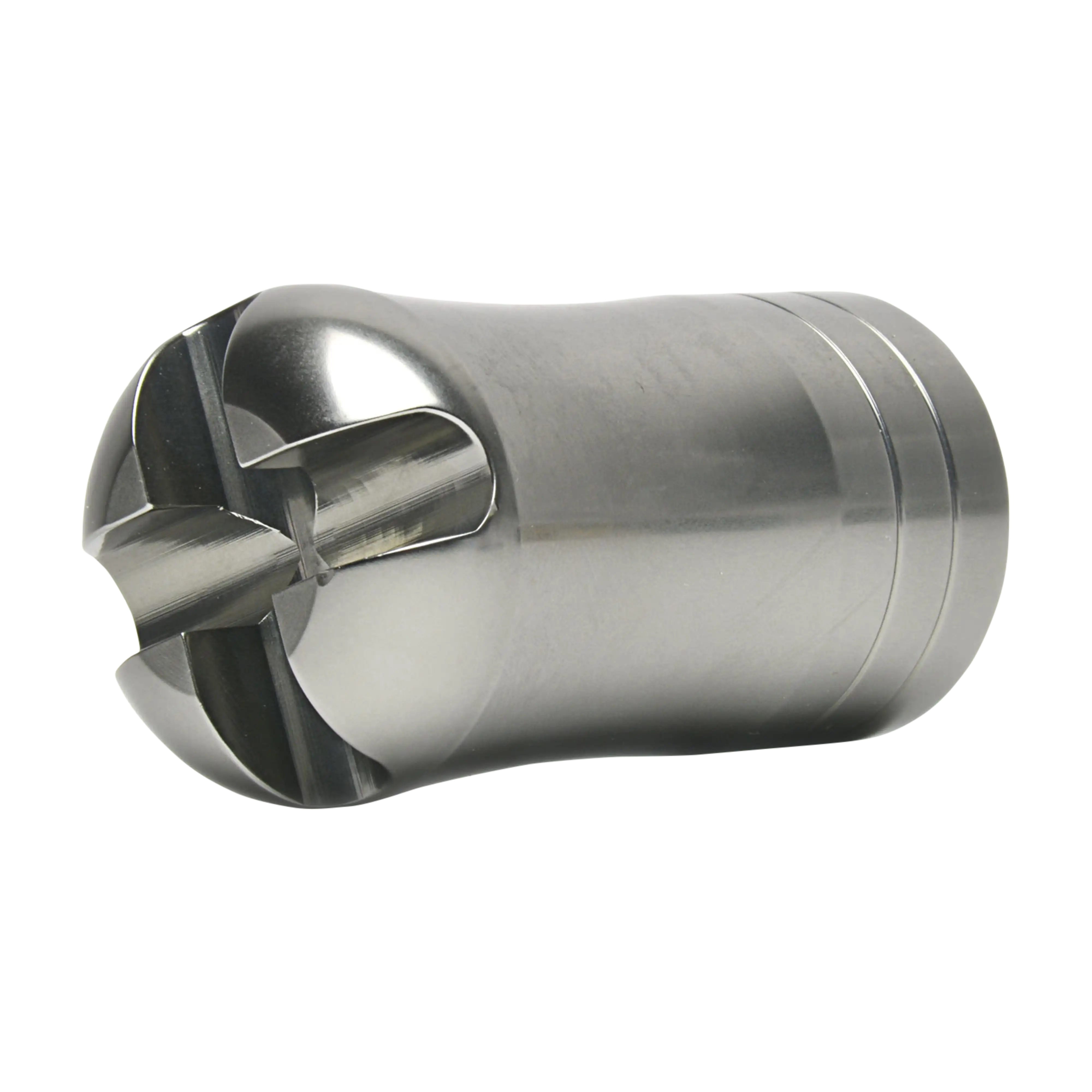

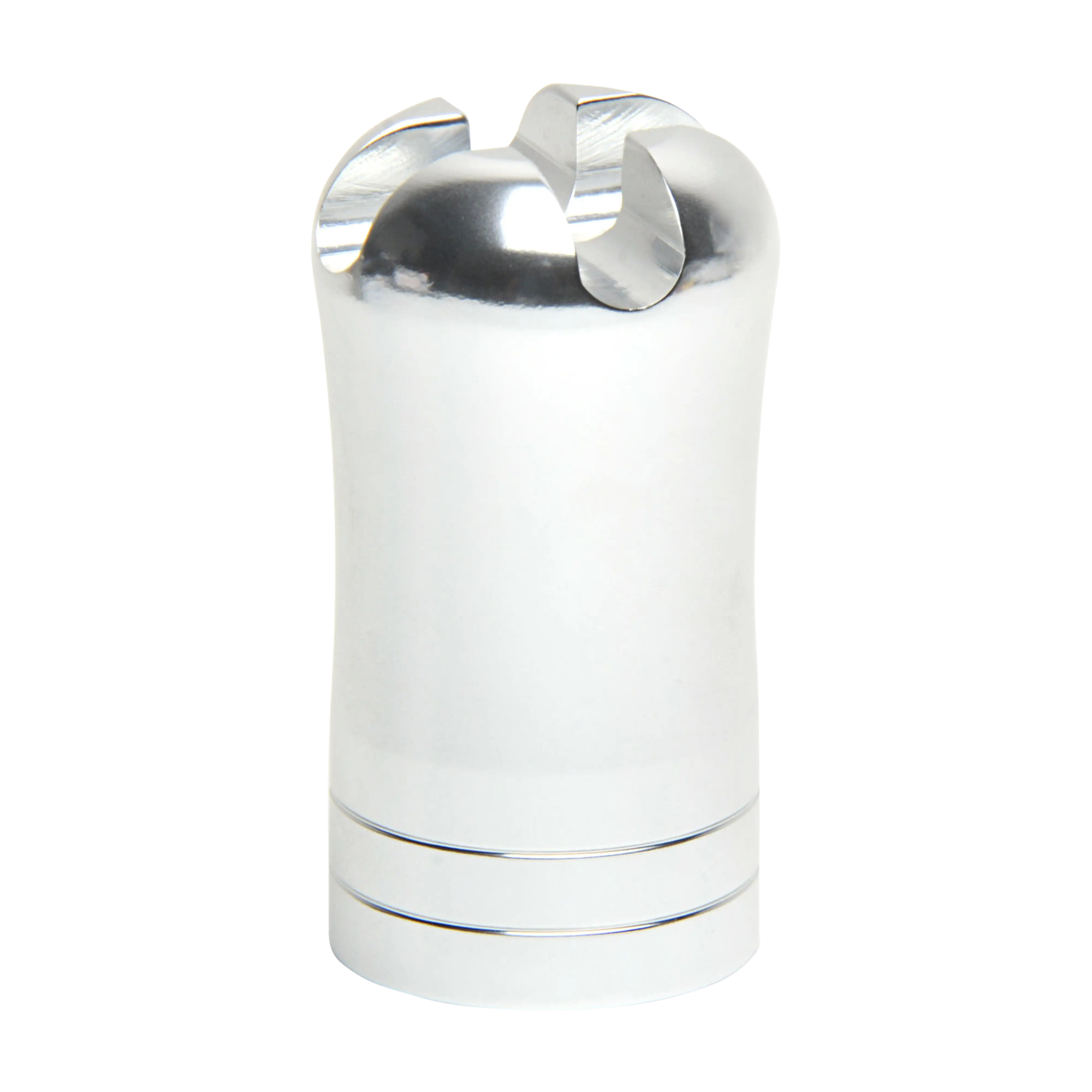

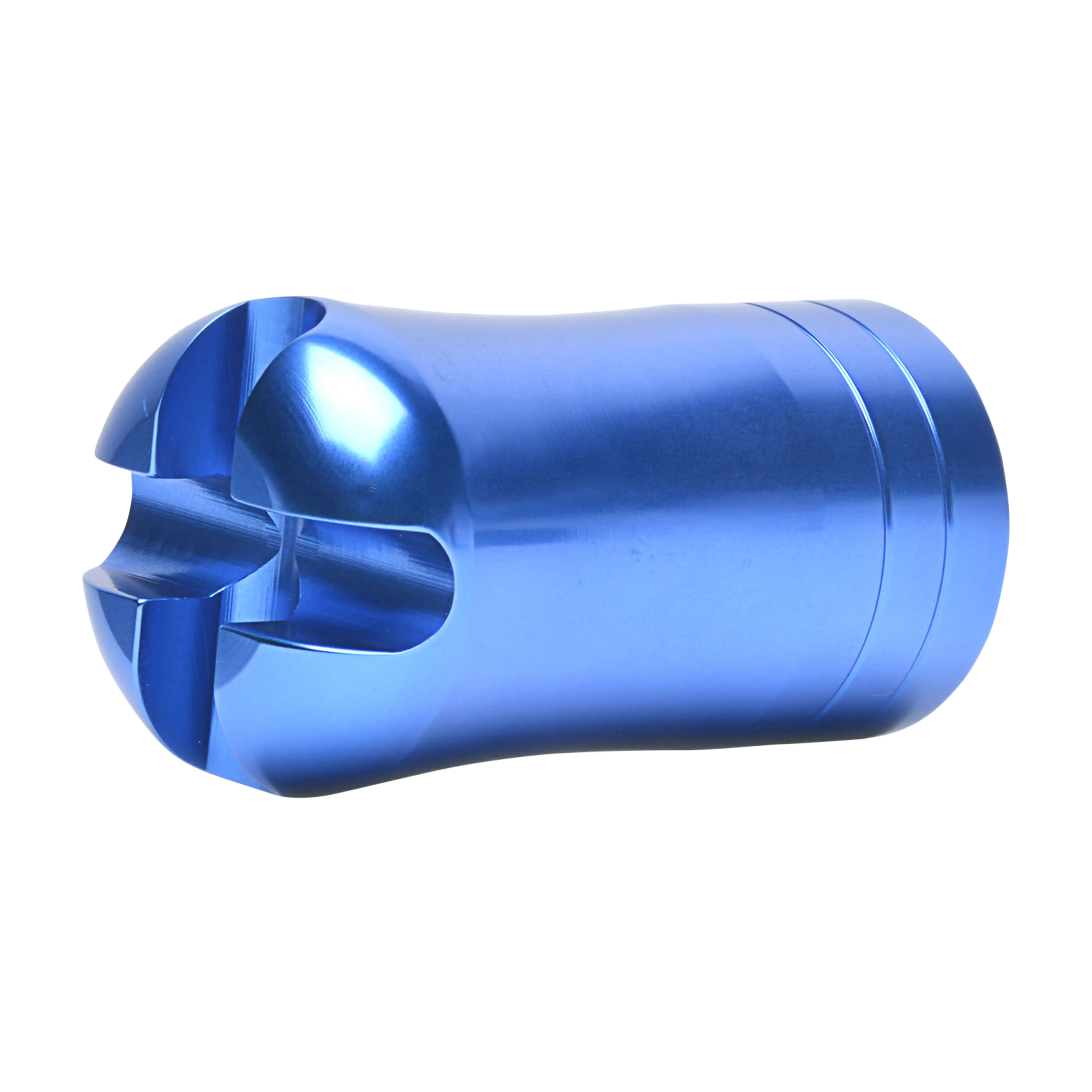

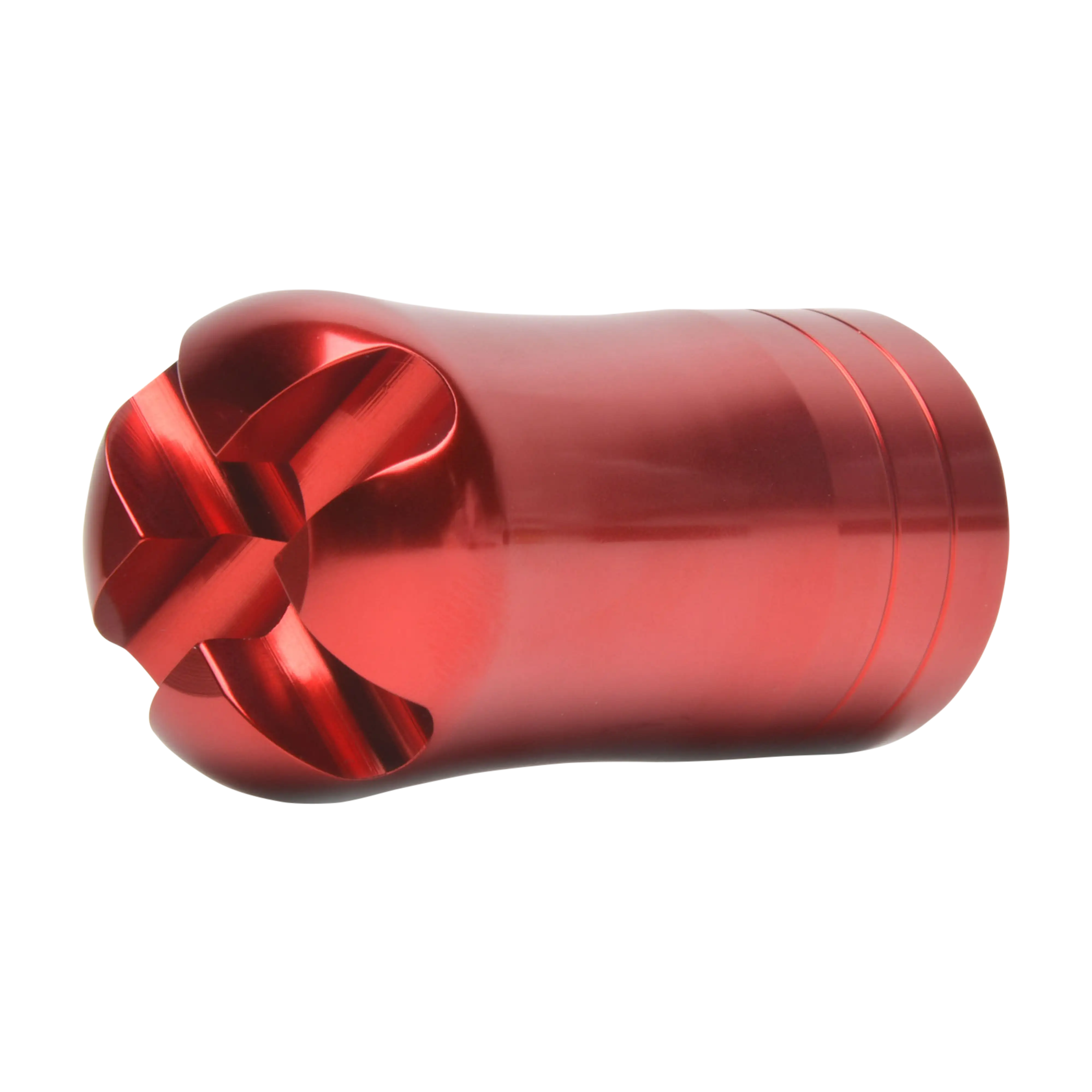

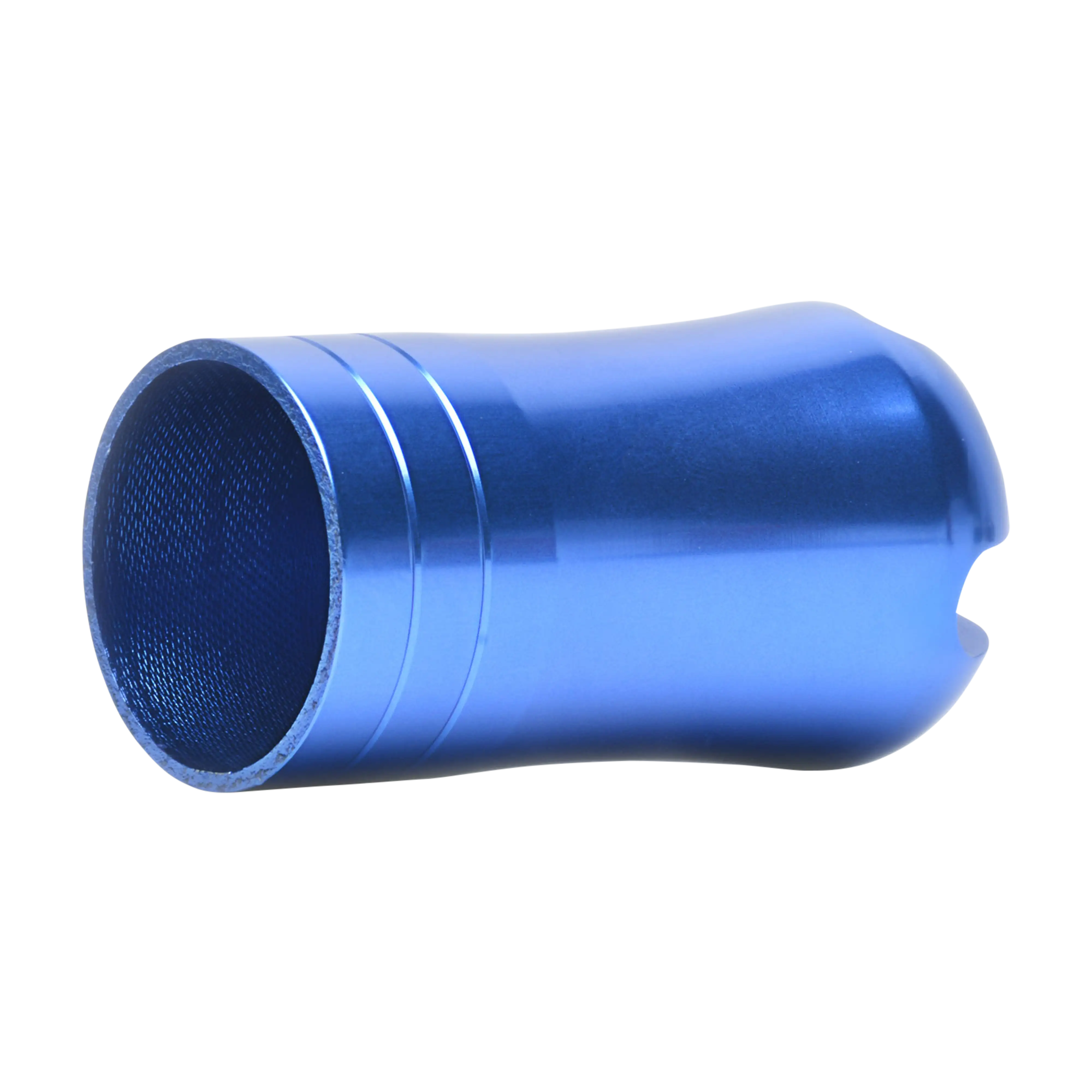

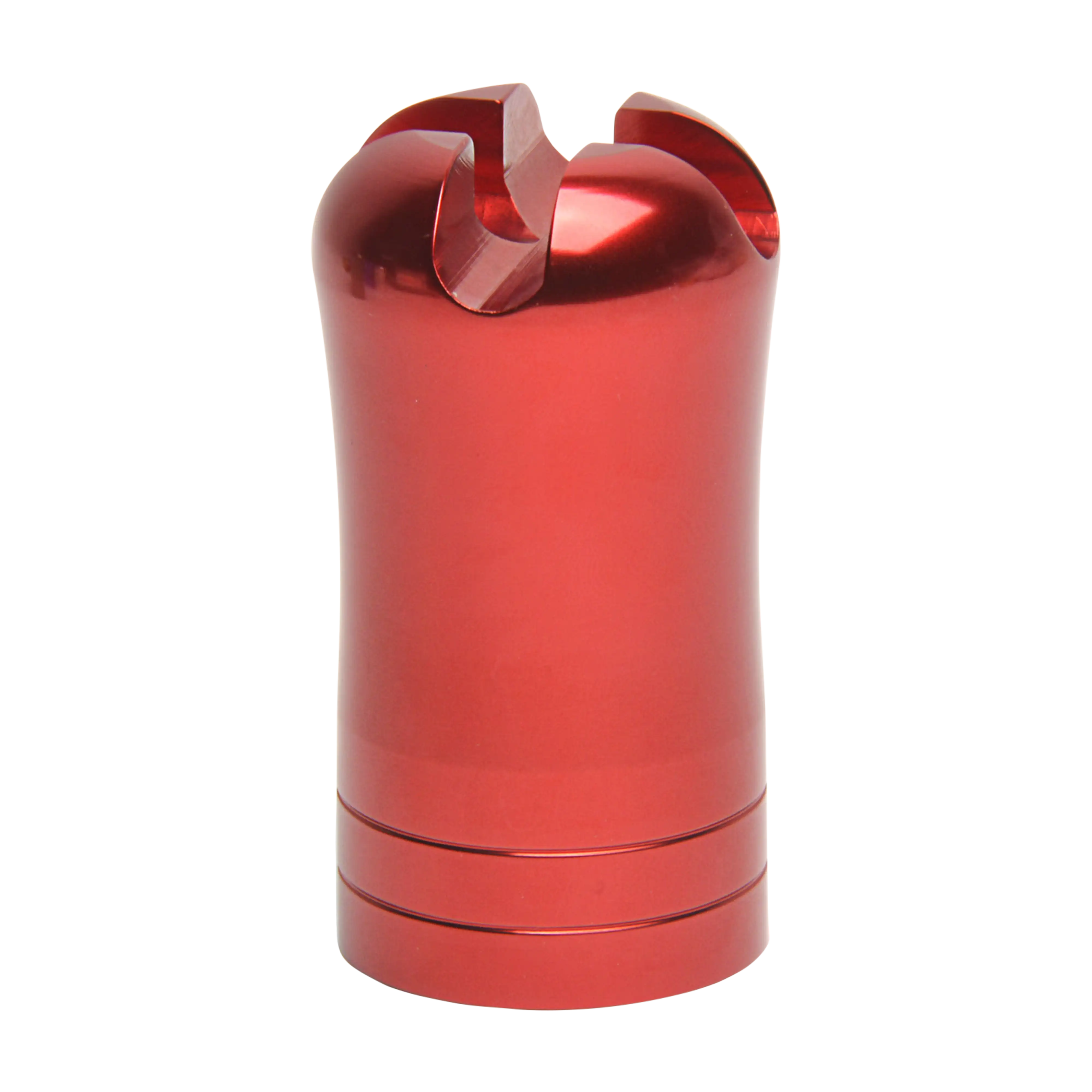

Built for maximum durability and comfort, the AGR Radiused Aluminum Gimbal is precision-machined from aircraft-grade aluminum to withstand the harshest offshore conditions. Its rounded, ball-shaped design provides comfort against the body and stability during the fight—perfect for going belt-free when battling big fish.
Features:
- Available in 3 standard sizes for custom rod builds
- Precision-machined from aircraft-grade aluminum for strength and corrosion resistance
- Radiused (rounded) design for comfort without a belt
- Available in 5 anodized colors: Black, Blue, Gunsmoke, Red, and Silver
Note: Due to the anodizing process, color variations may occur between batches.
Specifications
| Model | Inside Diameter | Length |
|---|---|---|
| AGR-2 | 22.2mm | 2 1/8" |
| AGR-3 | 25.2mm | 2 1/4" |
| AGR-4 | 28.6mm | 2 1/2" |
Warning: California's Proposition 65
Proposition 65 Warning
CA WARNING.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov
Files & Documents
I love these butts. They work very nice on the builds that I do

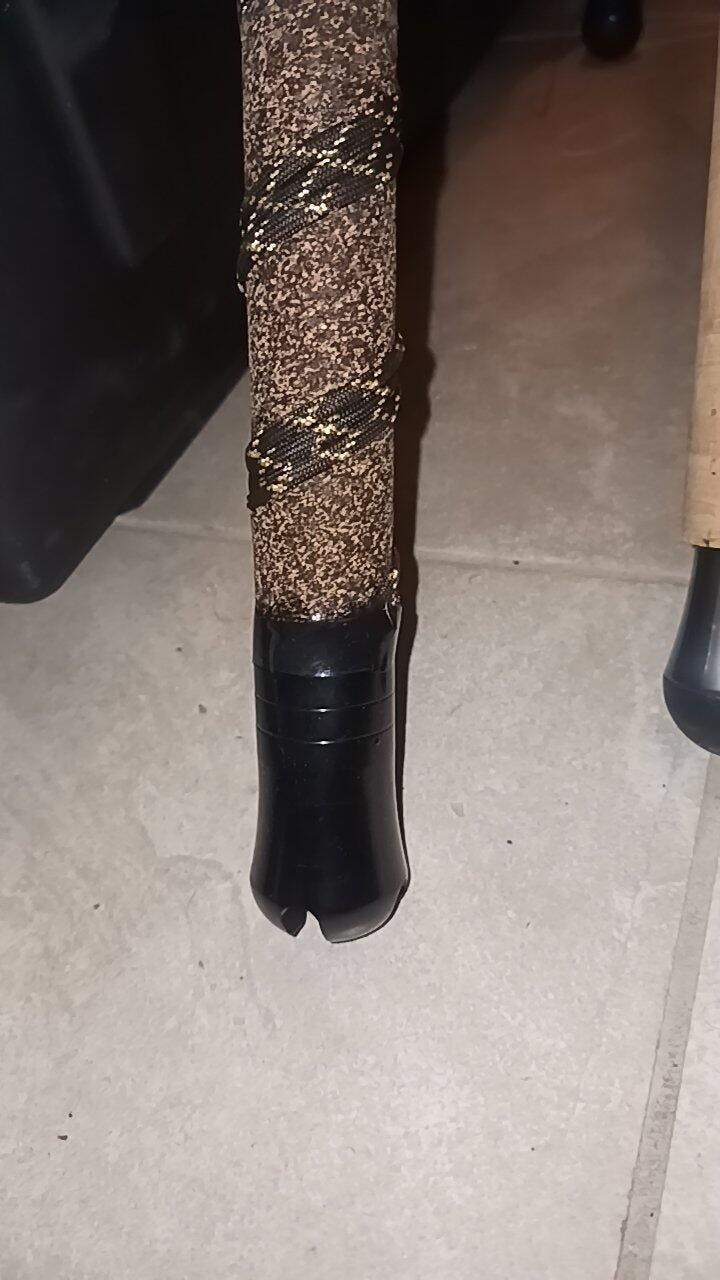

Nice large grip works fine for my surf rods
Liking the look of the radius gimbal
The perfect end to a great build. Allow it to lock on to the rod holder but also way more comfortable fighting big fis!!
Which the rounded butt I think this is going to be much more comfortable when fighting fish when you don’t have time for the belt. Or when you do have belt on it will lock in perfectly
Color doesn’t flake or chip. Amongst the finest I have used
Works great!!
American Tackle Radiused Aluminum Gimbals - AGR
The gimbals are built well but unfortunately they do not work in some of my rod holders. The radius flares outward too wide and stop the rod short of the gimbal pin in some of my large clamp on rail rod holders. The rod drops in but the gimbal width is too wide fir the tapered interior bottom of my rod holders.
Built very well should hold up to the abuse the salt water will put on it.
What is the O.D. where the gimbal meets the grip, I need = or > 26.5 MM
Hey Jack, the OD of these gimbals at the point that it will meet up to the grip is as fallows.
AGR-2: 25.45mm
AGR-3: 38.5mm
AGR-4: 31.7mm
How’s it going I’m trying to build a rod with a 10 ft, CRB heavy mod fast actIon blank. I got the guides and grips figured out however I don’t understand how to figure out the right size reel seat and butt. If you could recommend that would be awesome.
Hey Mike, The size of the reel seat and Gimbal are going top be determined by the diameter of the rod at the point that those parts are going to sit. The Gimbal will need to fit over the butt of the rod blank, so you will need to find out the butt diameter of that blank. And for the reel seat you will need to know the diameter of the blank at the location that you would want to reel seat. - Mud Hole
