American Tackle AFS8L2 Aluminum Fly Reel Seat – Dual Locking Nuts
Specifications
American Tackle AFS8L2 Aluminum Fly Reel Seat – Dual Locking Nuts
Product Details

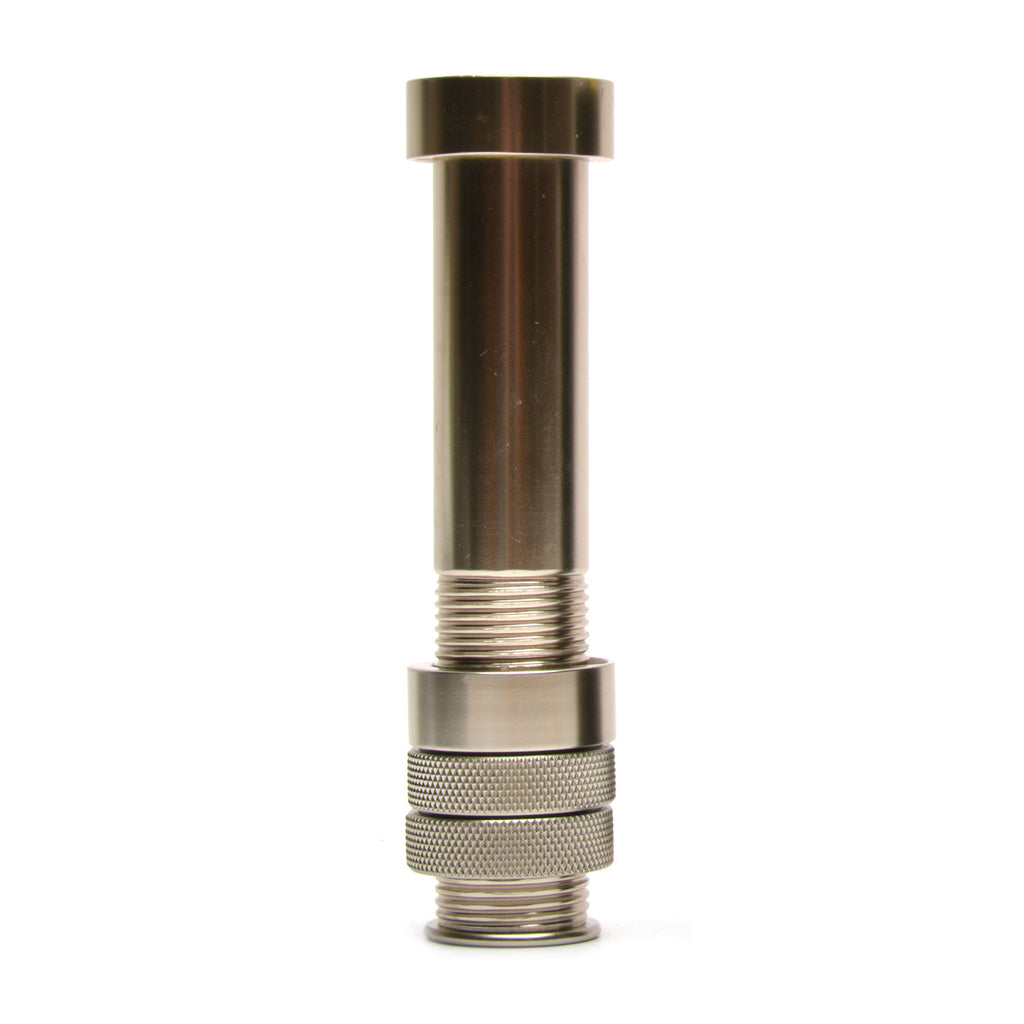

The AFS8L2 is a precision-machined, fully assembled aluminum fly reel seat designed for maximum reel security and long-term durability. Available in gloss black or titanium finishes, it features an uplocking design with dual locking nuts and Delrin O-rings—perfect for heavy-duty freshwater or light saltwater fly applications.
Features:
- Up-locking configuration for a secure, rattle-free reel fit
- Dual locking nuts with Delrin O-rings for heavy-duty performance
- Fully assembled anodized aluminum body with removable end cap
- Available in gloss black or titanium finishes
- Size #8 ideal for 5–9 wt. fly rods
AFS8L2 Size Chart
| LENGTH | ID | HOOD OD | BARREL OD | FOR RODS | |
|---|---|---|---|---|---|
| AFS8L2 | 4.15" | 0.615" | 1.00" | 0.750" | 5-9 wt. |
Warning: California's Proposition 65
Proposition 65 Warning
CA WARNING.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov
Files & Documents
Simple, but quality component. Can also leave off the bottom cap if looking to mount a fighting butt to your rod.
Well made reel seats that look good.
Good - no issues
I was disappointed that the prdocut has the CRB logo on it. I am not building a rod for commerical purposes and it would have been nice to know if that was on the product. Other wise it is fine.
I'm building a rod for a friend who is an innovative fly fisherman and guide but not a rod builder. He asked specifically for a dual nut down-locking reel seat with a short fighting butt. When I look at this fly reel seat, the AFS8L2, the page says it has a removable cap. First question, can I mount this seat in the down-locking configuration? Then, I would like to add the AFPB-P Fighting Butt Adapter Plug and the AFBE-T Fighting Butt Extension/Stem Piece, capped with a cork butt cap. Are these parts compatable? Can the fighting butt be removed and replaced with the AFBC butt cap? Finally the F2MB fighting butt appears, but does not state specifically, to be made from the adapter plug and the extension stem. Is the F2BM made from the two parts above and a cork cap? Can it be removed and replaced with AFBC at will (threaded?), or is it permanently glued?
These reel seats are able to be mounted both downlocking and uplocking. They are compatible with the AFBP, and if you feel the need to remove your fighting butt, you can cap it off with the AFBC when not using the fighting butt. I would recommend using the FBCC-6 or the FBCC-7 as a cork fighting butt, or any of the Winn fly fighting butts, as they fit the AFBE near flush.
Regarding the F2M, it is threaded, so it is removable, and the dimensions on it are near identical to the AFBC and its accessories are interchangeable with one another. However the finishes are very different, with the American Tackle version's black being glossy and the Pacific Bay version being matte, along with the Pacific Bay version having a titanium colored finish vs the American Tackle version being a polished silver/chrome finish. - Mud Hole
