RECOIL RSG Double Foot Casting/Stripping Guides – Natural Titanium
Specifications
RECOIL RSG Double Foot Casting/Stripping Guides – Natural Titanium
Product Details

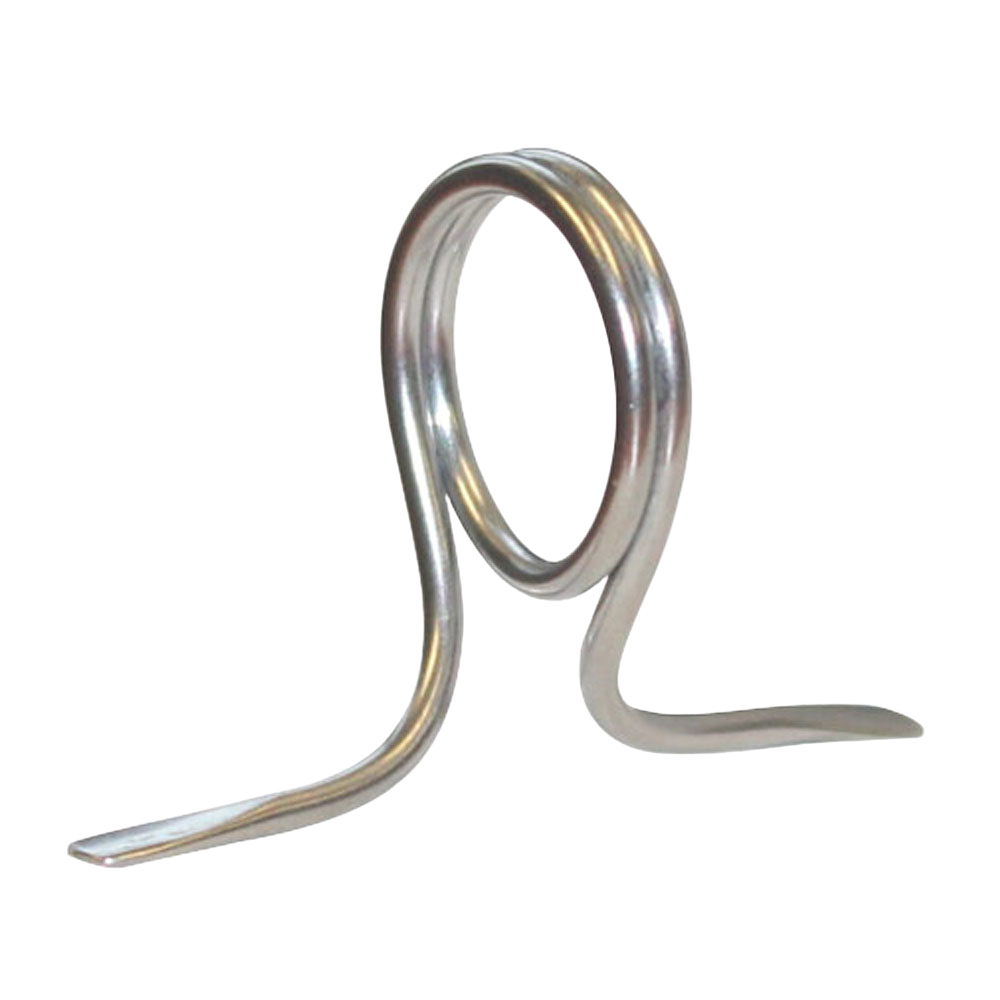

RECOIL Double Foot Casting/Stripping Guides are crafted from nickel titanium alloy with a shape-memory design, allowing them to flex and return to their original form after repeated impacts. The Natural Titanium finish offers a clean, polished appearance while delivering exceptional corrosion resistance and ultra-lightweight performance. Ideal for use as casting guides on conventional rods or as stripping guides on fly rods.
Key Features:
- Nickel titanium alloy construction with shape-memory design
- Natural Titanium finish for a classic, polished appearance
- Corrosion-proof for any fishing environment
- Ultra-lightweight to enhance rod sensitivity
- Suitable for casting or stripping guide applications
- Designed for double-foot support and maximum durability
Guide Specifications:
| SKU | Size | Wire Guage (Inches) | Loop Dia. I.D. (Inches) | Loop Dia. O.D. (Inches) | Height from CL of Loop off Blank | Height from Top of Loop off Blank | Pitch (Inches) - Start to End of Loop | Foot to Foot - Overall Length | Foot Swage Length | Foot Preparation |
| RSG | 6 | 0.03 | 0.18 | 0.24 | 0.17 | 0.29 | N/A | 0.6 | 0.15 | Swage |
| RSG | 7 | 0.035 | 0.22 | 0.29 | 0.21 | 0.35 | N/A | 0.66 | 0.2 | Swage |
| RSG | 8 | 0.04 | 0.28 | 0.36 | 0.28 | 0.45 | 0.31 | 0.79 | 0.22 | Swage |
| RSG | 10 | 0.045 | 0.32 | 0.41 | 0.35 | 0.55 | 0.35 | 0.91 | 0.22 | Swage |
| RSG | 12 | 0.045 | 0.39 | 0.48 | 0.39 | 0.63 | 0.39 | 1.03 | 0.26 | Swage |
| RSG | 16 | 0.055 | 0.47 | 0.58 | 0.54 | 0.83 | 0.47 | 1.26 | 0.32 | Swage |
| RSG | 20 | 0.06 | 0.63 | 0.75 | 0.65 | 1.02 | 0.71 | 1.65 | 0.35 | Swage |
| RSG | 25 | 0.06 | 0.83 | 0.95 | 0.79 | 1.26 | 0.87 | 2.03 | 0.44 | Swage |
Warning: California's Proposition 65
Proposition 65 Warning
CA WARNING.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov
Files & Documents

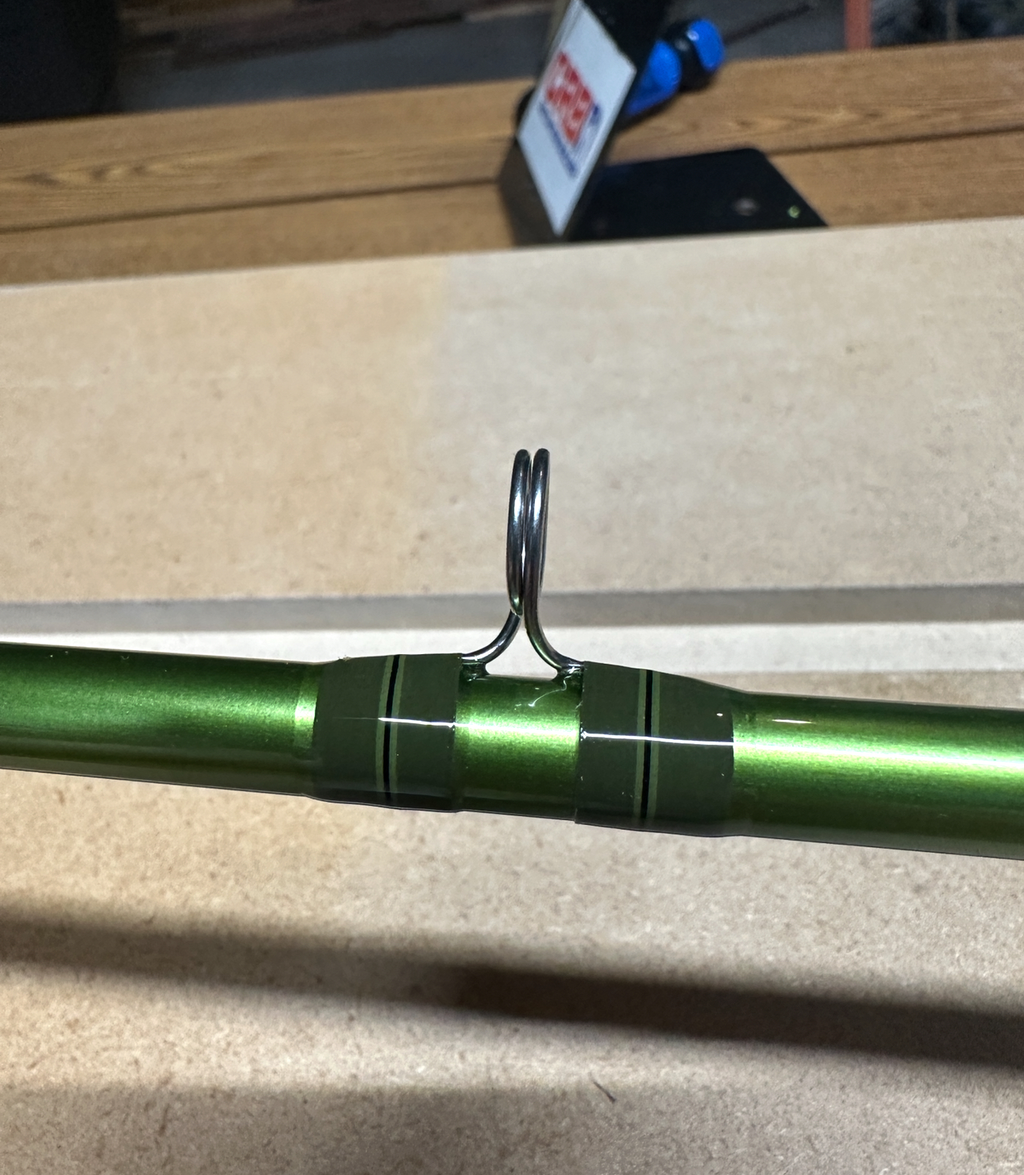

Used this one a 12ft 4wt trout spay. Really like how it came out. Be careful not to tweak the guide foots out of alignment or you will end up with a gap between the stripping guide loops. I accidentally left a small gap in one of mine
I bought these to go on two different fly rods and tested out both rods. From this point forward all my rods will have titanium guides. They are lightweight, flexible, and best of all I didn’t have to sand down the feet for the thread (size A) to wrap on top. I have a couple of spinning and casting rods I’d like to try them out on as well.
Exactly what I ordered
Great. They are what I ordered
Good
Good
Good
Good
Good
Good
is it a kit with multiple eyelets or do we have to get the right sizes and such
Hey Kolby, these guide are sold individually. Under the "product details" part of this page there is a size reference chart that lists the internal diameter of each guide. - Mud Hole
