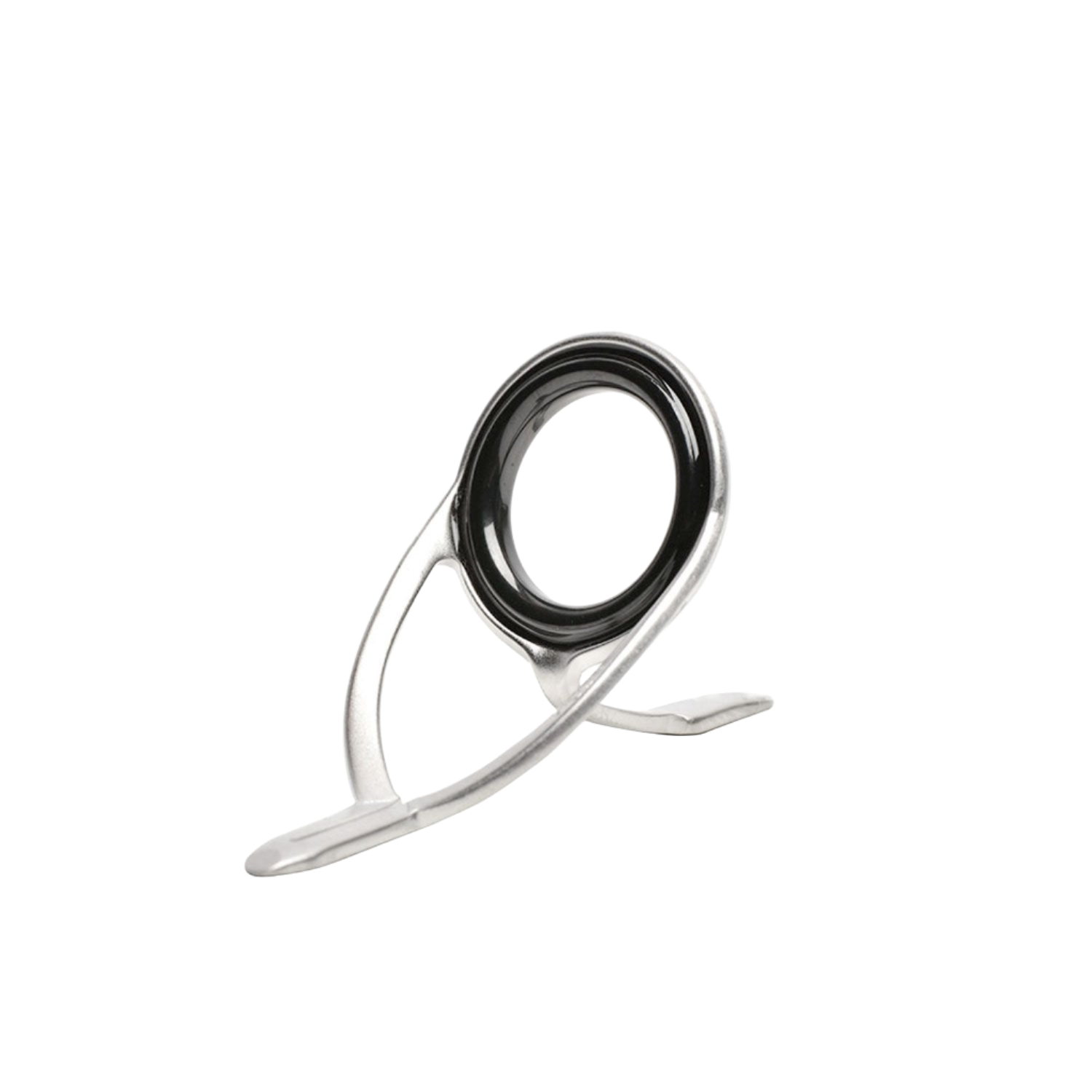

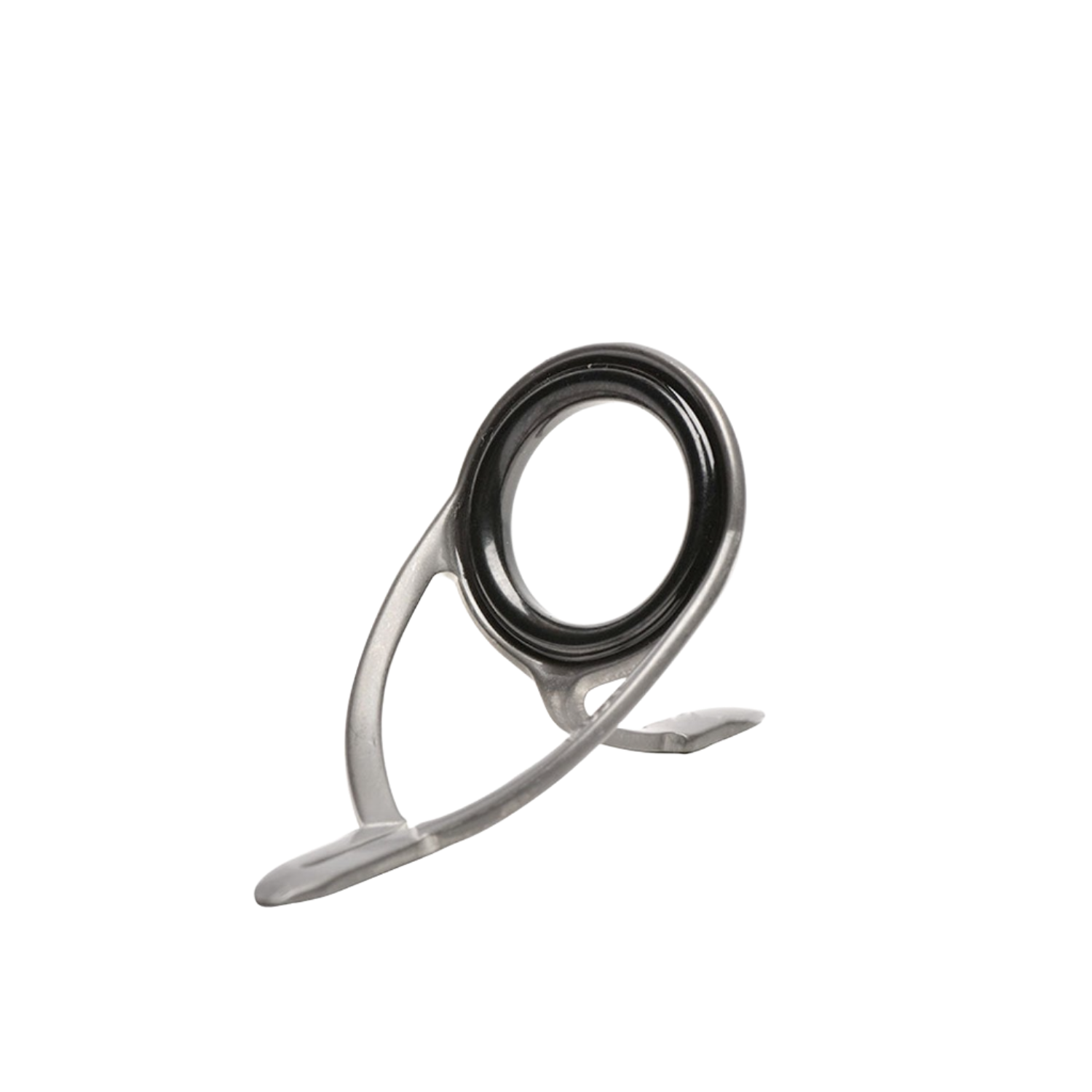

Fuji K-Series KW Double Foot Casting/Spinning Guides - Alconite
Specifications
Fuji K-Series KW Double Foot Casting/Spinning Guides - Alconite
Product Details
Fuji’s KW Series guides are built on the proven K-Series platform, offering a rugged double-foot frame with a sloped, tangle-free design optimized for both casting and spinning rod builds. Engineered to handle the demands of modern fishing techniques, KW guides provide strength, control, and exceptional performance across a wide range of applications—from freshwater bass rods to saltwater surf and boat rods.
Key Features:
- Tangle-Free K-Series Design: Sloped frame eliminates line wrap, especially with braided lines.
- Double-Foot Frame Construction: Provides maximum strength and stability for heavy-duty use.
- Multiple Ring Options: Available with Fuji’s full lineup of ring materials including Torzite®, SiC, Alconite®, Fazlite®, and Concept “O” – covering every performance need and price point.
- Corrosion-Resistant Frame Finishes: Choose from standard stainless steel or premium corrosion-control options for saltwater environments.
- KR Concept Compatible: Ideal as part of a KR Concept layout for enhanced line control and reduced weight.
Recommended For:
Spinning and casting rods used in freshwater, inshore, offshore, and surf environments. Perfect for custom rod builders seeking a high-performance, versatile guide series.
KR Guide Placement Software
Size Chart
| Ring Size | Height (mm) | L1 Rear Foot (mm) | L2 Front Foot (mm) | Length (mm) |
|---|---|---|---|---|
| 5.5 | 7.6 | 5.1 | 4.7 | 17.7 |
| 6 | 8.7 | 5.3 | 4.8 | 20.0 |
| 7 | 10.3 | 5.6 | 5.0 | 20.9 |
| 8 | 12.3 | 6.0 | 5.9 | 25.2 |
| 10 | 14.6 | 7.0 | 6.8 | 29.2 |
| 10M | 18.1 | 9.8 | 8.0 | 36.5 |
| 12 | 17.4 | 8.0 | 8.0 | 33.4 |
| 12M | 25.6 | 12.1 | 10.0 | 43.3 |
| 16 | 21.2 | 9.5 | 9.5 | 43.0 |
| 20 | 28.6 | 11.0 | 11.3 | 50.2 |
| 25 | 41.2 | 14.0 | 14.3 | 61.9 |
| 30 | 49.4 | 16.3 | 14.0 | 71.5 |
| 30L | 59.6 | 16.0 | 16.4 | 76.6 |
| 40 | 59.7 | 20.0 | 18.0 | 96.6 |
| 40L | 59.7 | 20.2 | 18.0 | 90.0 |
| 50 | 85.1 | 24.1 | 24.6 | 113.4 |
Note: Frame Height Codes – L = Low, M = Medium
