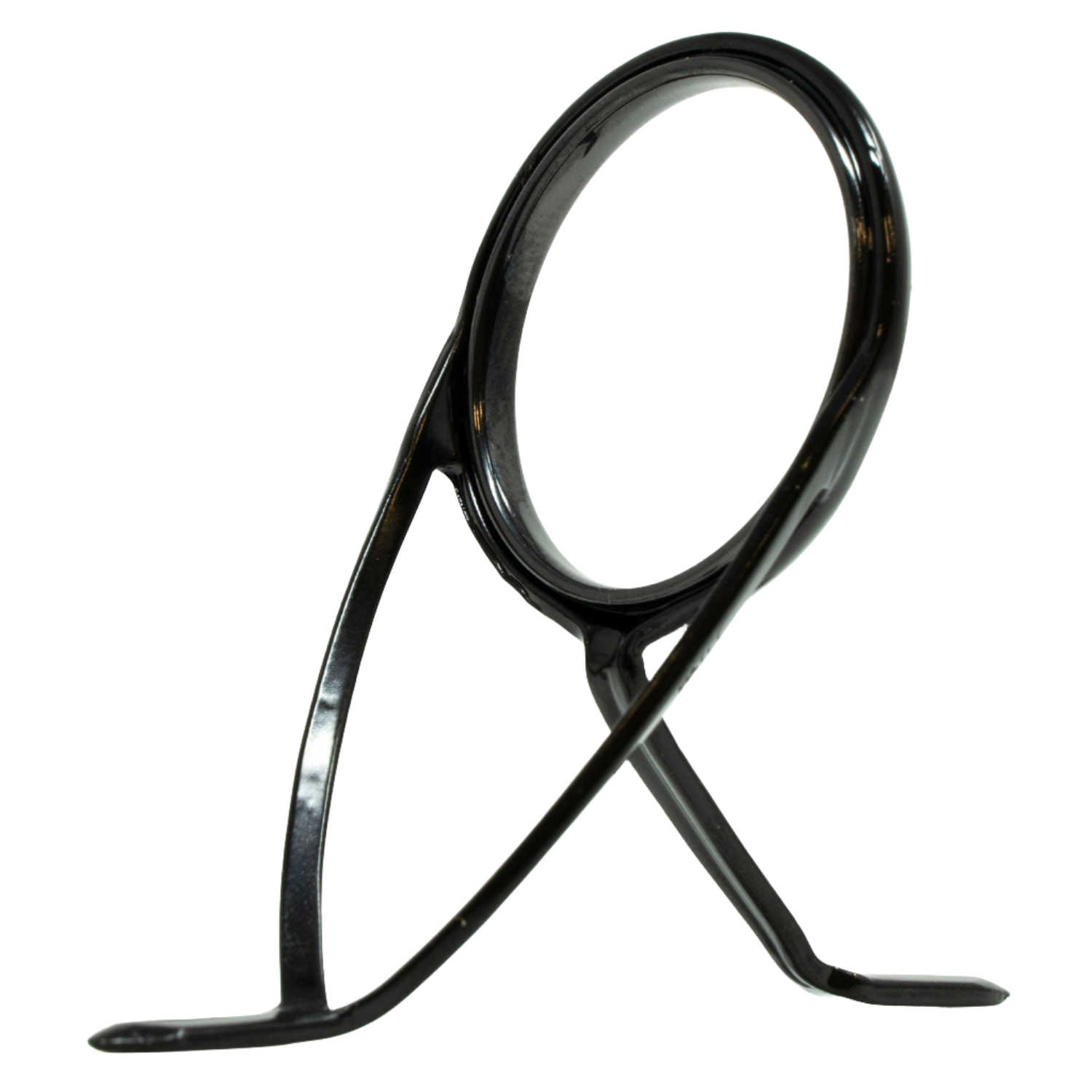

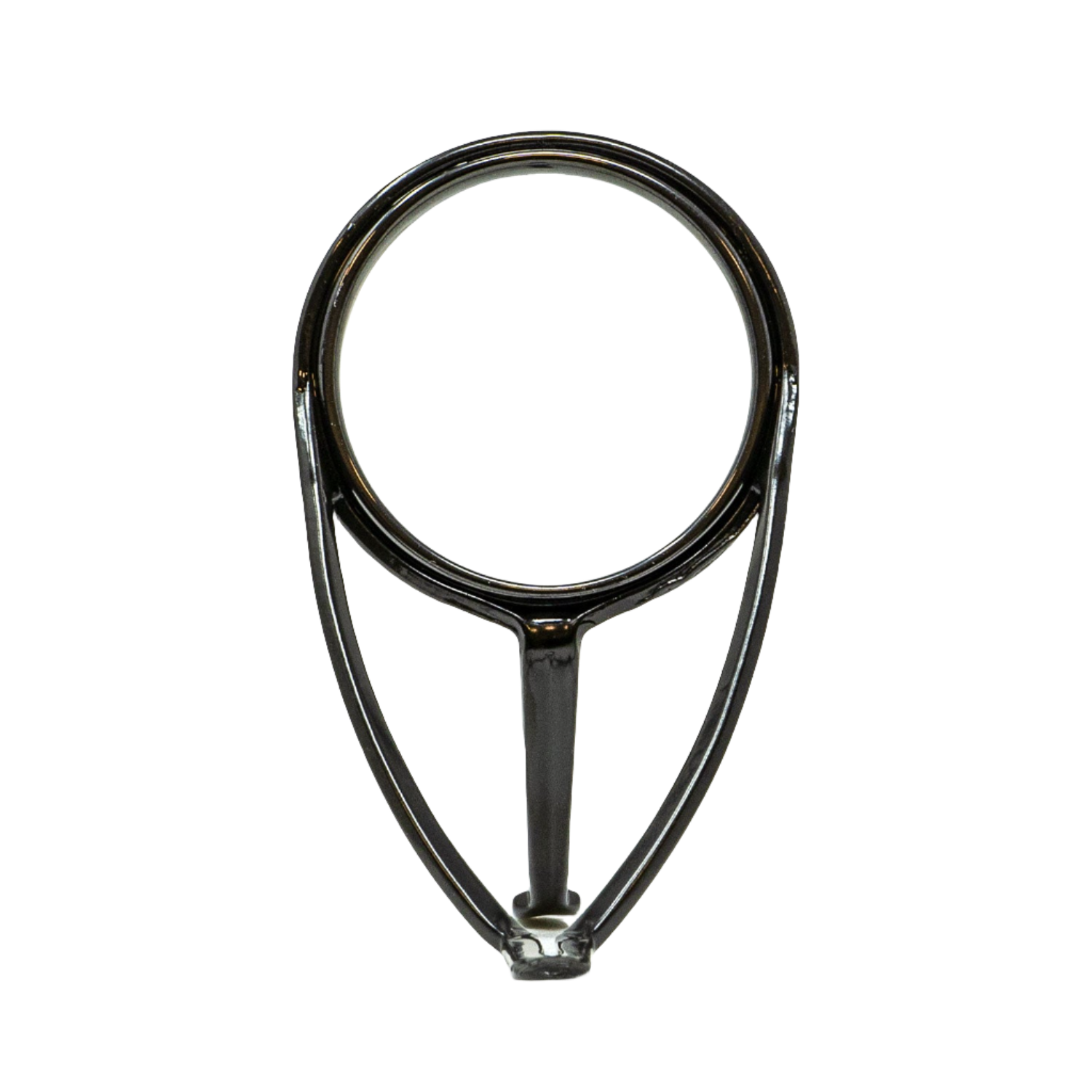

American Tackle TiForged Double Foot Spin/Cast Guides - Pentalite

Sale price$5.79 USD
SKU: PIBTDF-5.5
UPC: 099253038519

Ring Type: Pentalite
Color: Black Titanium
Size: 5.5
Size Chart - TiForged TDF Guides with Pentalite Rings

TiForged TDF guide with Pentalite ring diagram, front and side views, with lettered measurement points matching the size chart



Titanium Frame - Pentalite Ring
Size Height A Height B Height C Weight Ring ID Foot 1 Foot 2 Total Length
5.5 2.55 mm 6.00 mm 7.40 mm 0.10 gm 3.95 mm 5.00 mm 5.00 mm 18.00 mm
6 2.85 mm 7.60 mm 8.50 mm 0.20 gm 4.25 mm 5.50 mm 5.00 mm 20.20 mm
7 3.40 mm 8.10 mm 9.80 mm 0.30 gm 4.90 mm 5.50 mm 5.50 mm 21.80 mm
8 4.75 mm 10.95 mm 12.40 mm 0.40 gm 5.85 mm 5.50 mm 5.50 mm 24.20 mm
10 5.45 mm 13.65 mm 15.20 mm 0.60 gm 7.75 mm 7.00 mm 6.50 mm 26.50 mm
12 6.50 mm 10.20 mm 23.00 mm 0.90 gm 9.15 mm 10.00 mm 9.00 mm 39.00 mm
16 4.65 mm 16.30 mm 23.00 mm 1.60 gm 11.60 mm 10.00 mm 9.00 mm 39.00 mm
20 10.95 mm 26.30 mm 29.00 mm 2.30 gm 15.00 mm 12.20 mm 11.00 mm 51.00 mm
25 23.50 mm 42.40 mm 44.50 mm 4.90 gm 19.30 mm 15.00 mm 15.00 mm 59.00 mm
30 29.45 mm 53.60 mm 59.00 mm 6.43 gm 25.10 mm 15.00 mm 15.00 mm 67.25 mm
30L 23.20 mm 48.75 mm 49.50 mm 5.50 gm 25.10 mm 15.00 mm 15.00 mm 63.70 mm
40L 27.75 mm 57.50 mm 61.75 mm 10.30 gm 30.85 mm 18.50 mm 18.50 mm 87.95 mm
50L 37.00 mm 78.40 mm 82.50 mm 16.90 gm 42.70 mm 21.50 mm 22.00 mm 105.00 mm
In stock
Free Shipping

Orders $99+ to USA lower 48. More →

Free Returns

100% Satisfaction guaranteed. More →

Out of stock

American Tackle TiForged Double Foot Spin/Cast Guides - Pentalite

Get notified when it's back

Enter your email and we'll let you know as soon as this item is restocked.

American Tackle TiForged Double Foot Spin/Cast Guides - Pentalite

Product Details



Engineered for strength, performance, and minimal drag, the American Tackle TiForged TDF Double Foot Guides are ideal for demanding spinning or casting builds. Lightweight yet tough, these guides feature a snagless profile and are available with premium ring and frame options to match your performance goals.

Features:

  • Snagless double foot frame for spinning and casting applications
  • Offered with Duralite, Nanolite, or Pentalite ring options

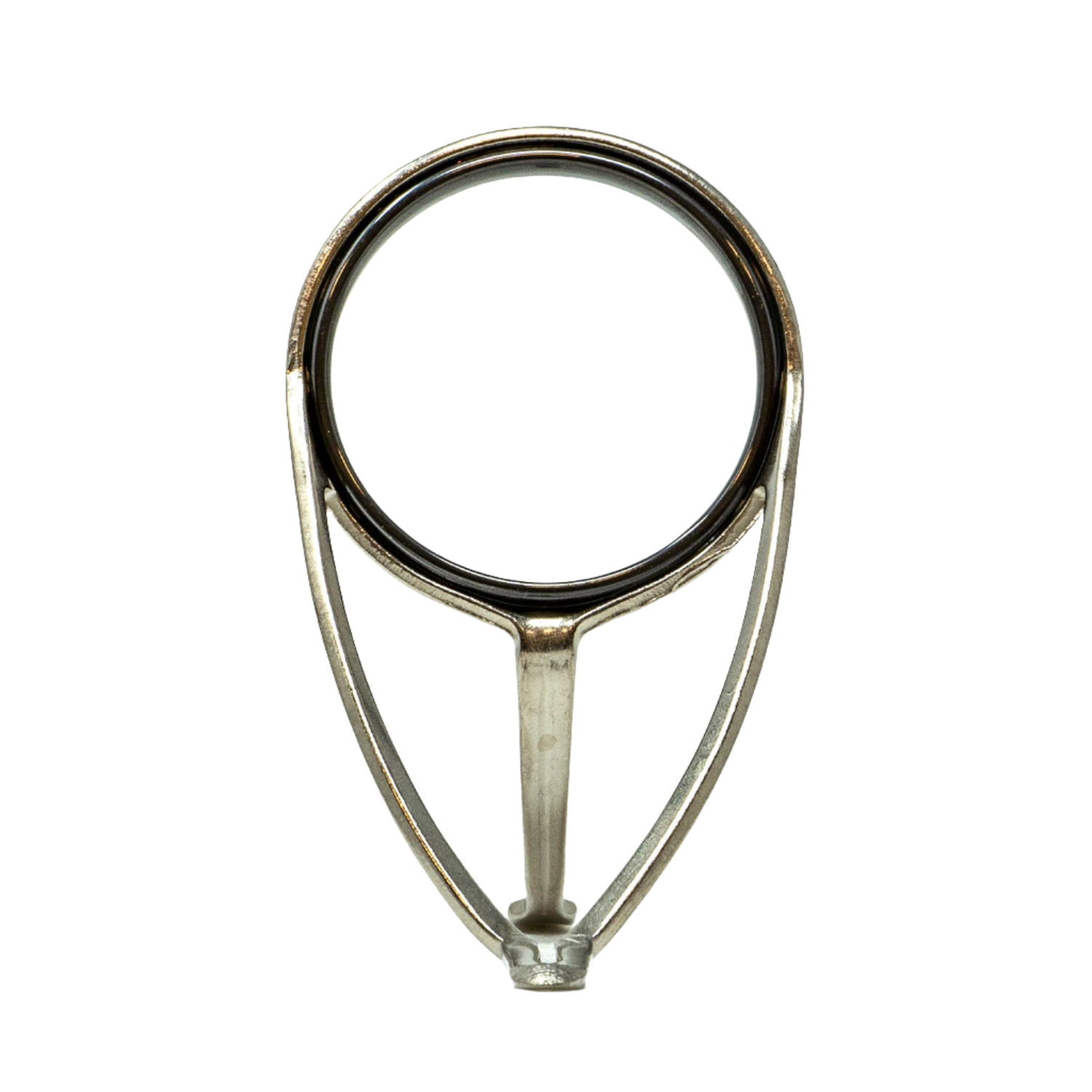

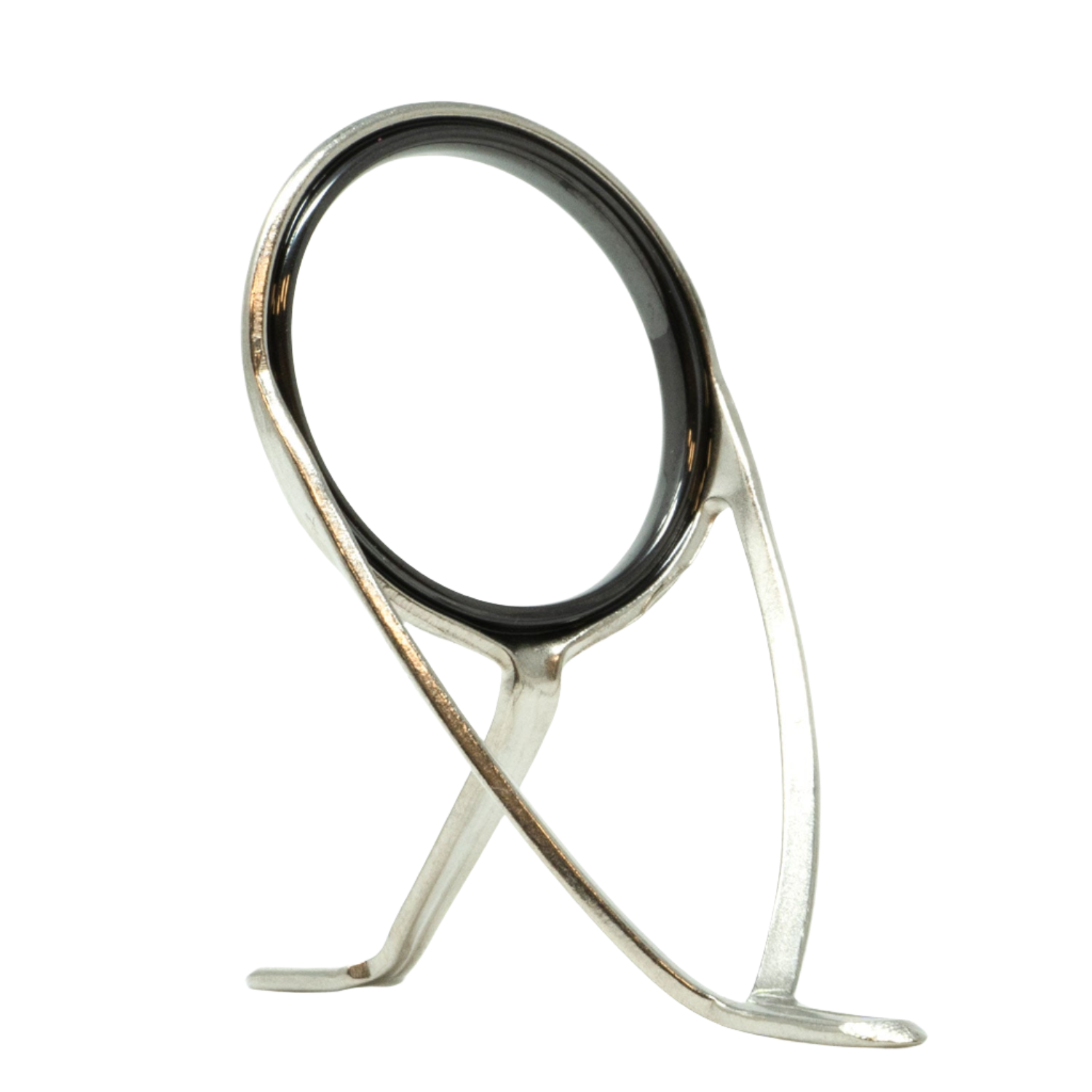

  • 316SS: Black or Polished finish (Duralite/Nanolite rings)
  • Titanium: Black Titanium or Natural Titanium finish (Nanolite/Pentalite rings)

Why It Performs:
TiForged TDF guides offer ultra-smooth line flow, extreme ring retention, and reduced weight—ideal for freshwater to inshore saltwater rods. Choose your ring and frame combo to dial in performance, weight, and corrosion resistance.


Featured Technology

American Tackle Pentalite

A unique blend of ceramic material is used to create this extremely hard and smooth
ring option for discerning builders and anglers who appreciate high caliber products.
It’s added strength permits less material used, reducing weight in an ultra-slim profile
ring for overall lower guide weight.

Proposition 65 Warning


CA WARNING.

CA Proposition 65 Warning

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov

  • 5 stars: 13 (68%)
  • 4 stars: 3 (16%)
  • 3 stars: 2 (11%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (5%)
Some of the reviews shown are from related products the merchant grouped with this one.
B
Brandon Truong (Orlando, FL, US)
Noice guide

Toad

B
Brandon Truong (Orlando, FL, US)
Littler better than fuji

I dont know yet if they last as long as fuji but heard there a littler better

W
Walter Backstrom (Brockton, MA, US)
TiForged

Great guides I use these quite a bit, really good value

J
Joey Lascelles (Guatemala City, 01, GT)
Titanium

I bought both the ss and the titanium. Here is my humble opinion- the titanium are nearly impossible to grind down. Getting threads to go up the ramp was ****. I am newer to rod building so there’s that. But the stainless didn’t give me the same issue. Obviously there are trade offs. But from here forward I’m sticking to Fuji for the titanium. Their feet are a little more precise.

T
Trey Schneider (Houston, TX, US)

These guides are incredible if you want to get a good guide tackle the tri forge double foot spin cast. They are durable and tough hold up to the biggest fights.

a
al partelow (Westfield, NJ, US)
7’6” Bushido spinning rod. Grateful Dead Theme

Used TiForged Double Foot guides with Nanolite inserts on a 7’6” Bushido 20-40lb Warrior. Turned out great.

a
al partelow (Westfield, NJ, US)
Size 30 Ti Forge double foot guide with Nanolite insert

Just repaired a rod replacing a size 30 spin guide. The guide feet were pre prepared very well. I had to do little work before installing

D
Durkee Custom Rods (Sebastian, FL, US)
TiForged double foot guides . DURKEECUSTOMRODS

I use them on almost all of my spinning builds and start with a 16 for conventional builds . No come backs or complaints won't let me post a pic

K
Kenny Correll (Orlando, FL, US)
Great guides

Use them in all my saltwater rods

K
K.C. (Orlando, FL, US)
Work

Great

K
Kenny Correll (Orlando, FL, US)
Guides

Good

A
Anonymous (Orlando, FL, US)
Good quality

Guides

K
K.C. (Orlando, FL, US)
Great guides

Quality guides

T
Tommy Crenshaw (Orlando, FL, US)
Great set of guides

Purchased a set of these for an offshore build I was doing. Have not put them to the test yet, but they look great. They went on nice and easy with minimal prep before wrapping, and look amazing!

A
Anonymous (Philadelphia, PA, US)
Order not delivered

This item was not delivered. The package that arrived at my door was never sealed properly. This item needs to be replaced or my money returned.

H
Hunter Roraff (Dubuque, IA, US)
High performance but paint wears

These are the lightest titanium guides that I have used however the black paint wears/chips pretty easily

S
Shane

Not the color advertised

F
Francisco Umpierre
Spinning

Best spinning guide on the market! Super heavy duty

W
William Rivera (Orlando, FL, US)
American Tackle TiForged Double Foot Guides TDF - Nanolite

The most lightest and durable guides in the industry
