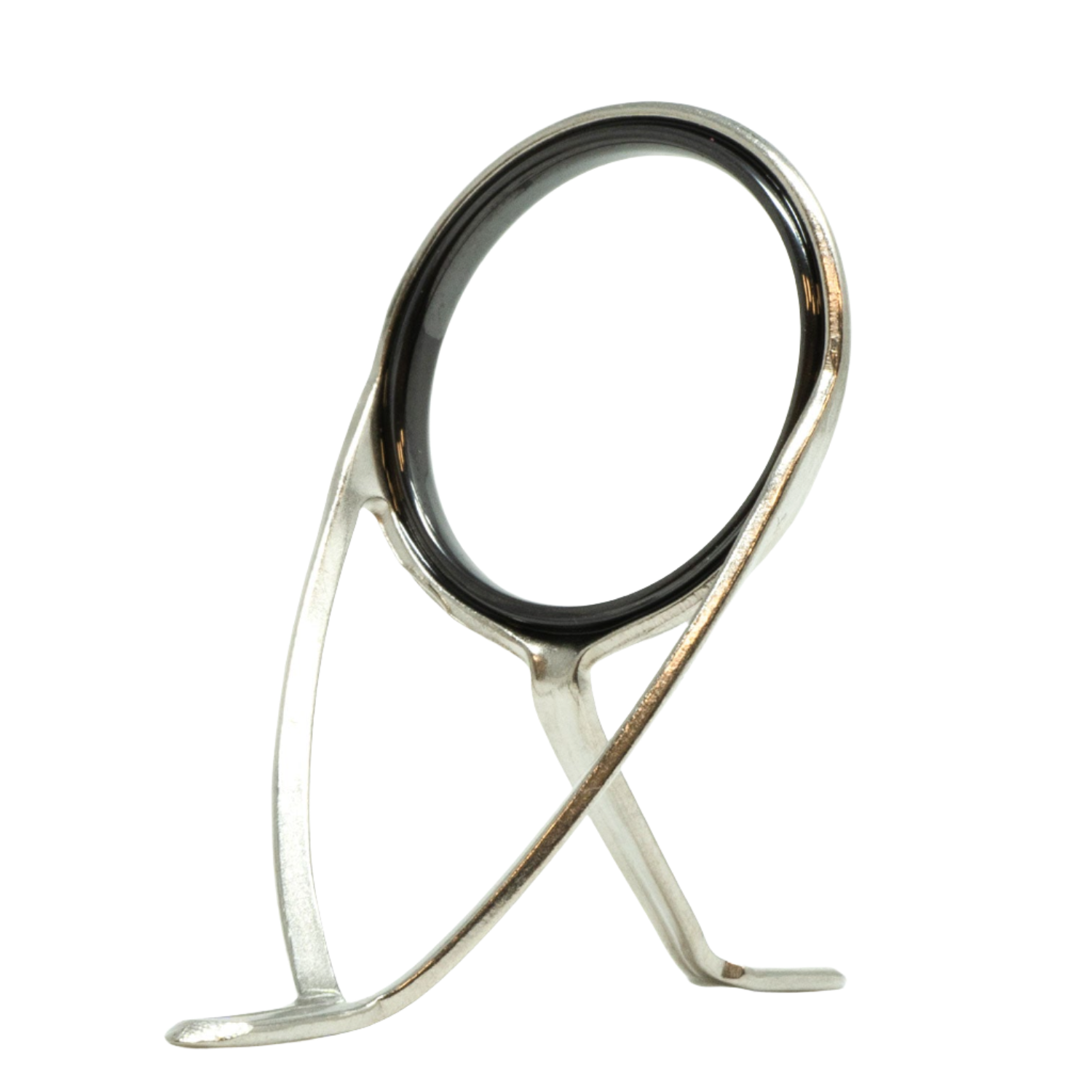

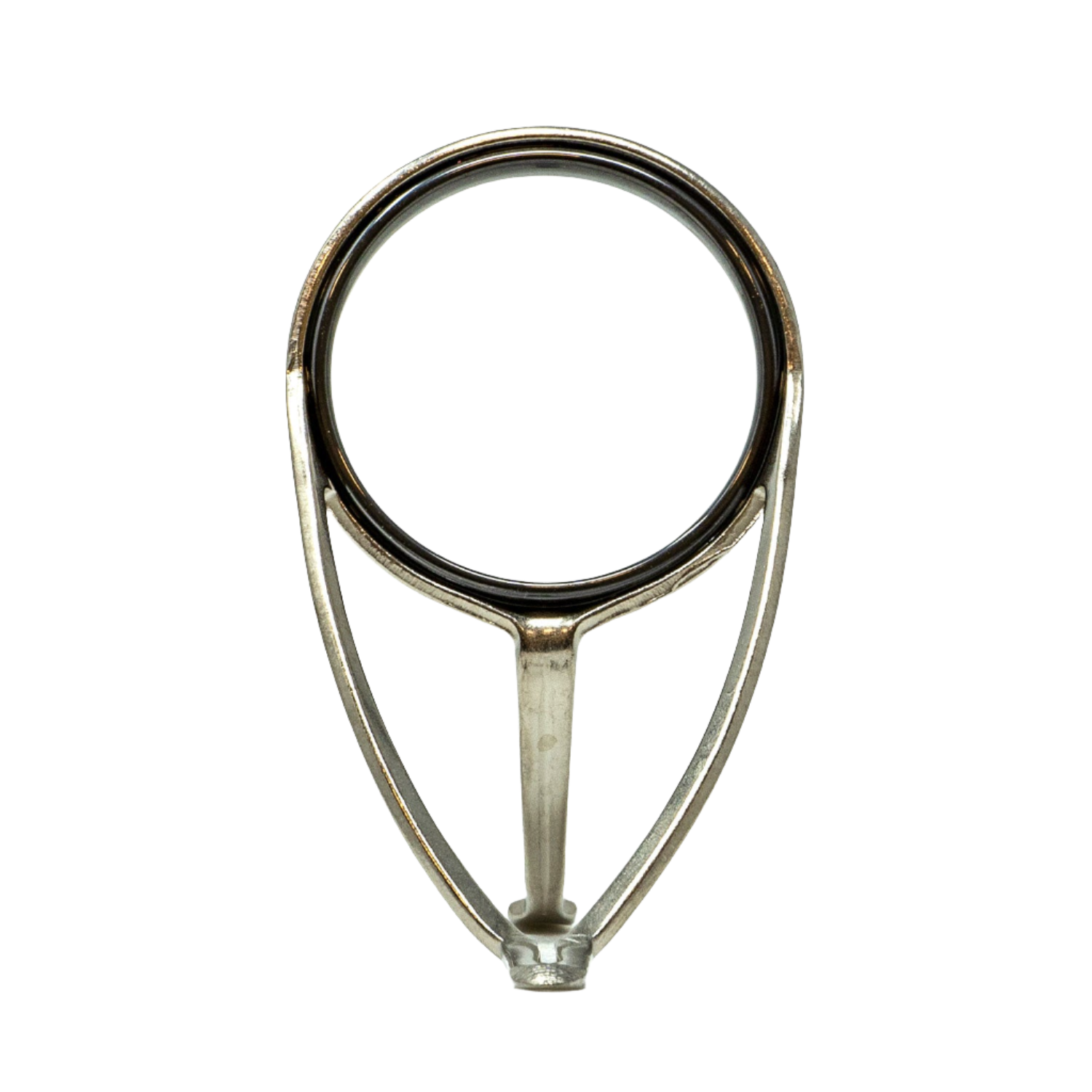

American Tackle TiForged Double Foot Guides TDF - Duralite

4.8

American Tackle TiForged Double Foot Guides TDF - Duralite

American Tackle Co.

SKU: DBTDF-5.5

$1.89 USD

Color:

Black

Polished Stainless

Size:

5.5

Size Chart - TiForged TDF Double Foot Guides

SS Frame - Duralite Ring
Size	Height A	Height B	Height C	Weight	Ring ID	Foot 1	Foot 2	Total Length
5.5	2.60 mm	6.15 mm	7.40 mm	0.25 gm	3.50 mm	5.00mm	5.00 mm	19.00 mm
6	3.05 mm	7.00 mm	8.50 mm	0.33 gm	4.00 mm	5.50 mm	5.00 mm	20.20 mm
7	3.55 mm	8.15 mm	9.80 mm	0.53 gm	4.95 mm	5.50 mm	5.50 mm	21.80 mm
8	4.85 mm	10.05 mm	12.40 mm	0.70 gm	5.60 mm	5.50 mm	5.50 mm	24.20 mm
10	5.50 mm	12.50 mm	15.20 mm	1.15 gm	7.40 mm	7.00 mm	6.50 mm	26.50 mm
12	6.00 mm	14.15 mm	23.00 mm	1.50 gm	8.85 mm	10.00 mm	9.00 mm	39.00 mm
16	8.45 mm	17.80 mm	23.00 mm	2.60 gm	11.00 mm	10.00 mm	9.00 mm	39.00 mm
20	10.15 mm	24.25 mm	29.00 mm	4.10 gm	14.46 mm	12.20 mm	11.00 mm	51.00 mm
25	22.60 mm	40.00 mm	44.50 mm	7.90 gm	18.75 mm	15.00 mm	15.00 mm	59.00 mm
30	34.15 mm	56.75 mm	64.00 mm	11.00 gm	24.60 mm	16.50 mm	16.00 mm	68.00 mm
30L	24.30 mm	47.00 mm	49.50 mm	9.60 gm	24.60 mm	15.00 mm	15.00 mm	63.70 mm
40L	31.00 mm	56.80 mm	62.00 mm	17.2 gm	28.60 mm	18.00 mm	18.50 mm	90.50 mm
50L	32.60 mm	74.80 mm	80.00 mm	24.00 gm	40.40 mm	24.00 mm	24.50 mm	105.00 mm

SS Frame - Nanolite Ring
Size	Height A	Height B	Height C	Weight	Ring ID	Foot 1	Foot 2	Total Length
5.5	2.60 mm	6.15 mm	7.40 mm	0.25 gm	2.75 mm	5.00mm	5.00 mm	19.00 mm
6	3.05 mm	7.00 mm	8.50 mm	0.30 gm	4.25 mm	5.50 mm	5.00 mm	20.20 mm
7	3.55 mm	8.15 mm	9.80 mm	0.50 gm	4.90 mm	5.50 mm	5.50 mm	21.80 mm
8	4.85 mm	10.05 mm	12.40 mm	0.67 gm	5.85 mm	5.50 mm	5.50 mm	24.20 mm
10	5.50 mm	12.50 mm	15.20 mm	1.10 gm	7.75 mm	7.00 mm	6.50 mm	26.50 mm
12	6.00 mm	14.15 mm	23.00 mm	1.40 gm	9.15 mm	10.00 mm	9.00 mm	39.00 mm
16	8.45 mm	17.80 mm	23.00 mm	2.50 gm	11.60 mm	10.00 mm	9.00 mm	39.00 mm
20	10.15 mm	24.25 mm	29.00 mm	3.90 gm	15.00 mm	12.20 mm	11.00 mm	51.00 mm
25	22.60 mm	40.00 mm	44.50 mm	7.70 gm	19.30 mm	15.00 mm	15.00 mm	59.00 mm
30	34.15 mm	56.75 mm	64.00 mm	10.80 gm	24.90 mm	16.50 mm	16.00 mm	68.00 mm
30L	24.00 mm	47.30 mm	49.50 mm	9.40 gm	25.10 mm	15.00 mm	15.00 mm	63.70 mm
40L	30.50 mm	57.30 mm	62.00 mm	16.30 gm	29.60 mm	18.00 mm	18.50 mm	90.50 mm
50L	32.60 mm	74.80 mm	80.00 mm	24.00 gm	40.40 mm	24.00 mm	24.50 mm	105.00 mm

Titanium Frame - Nanolite Ring
Size	Height A	Height B	Height C	Weight	Ring ID	Foot 1	Foot 2	Total Length
5.5	2.60 mm	6.15 mm	7.40 mm	0.17 gm	2.75 mm	5.00mm	5.00 mm	19.00 mm
6	3.05 mm	7.00 mm	8.50 mm	0.24 gm	4.25 mm	5.50 mm	5.00 mm	20.20 mm
7	3.55 mm	8.15 mm	9.80 mm	0.31 gm	4.90 mm	5.50 mm	5.50 mm	21.80 mm
8	4.85 mm	10.05 mm	12.40 mm	0.40 gm	5.85 mm	5.50 mm	5.50 mm	24.20 mm
10	5.50 mm	12.50 mm	15.20 mm	0.64 gm	7.75 mm	7.00 mm	6.50 mm	26.50 mm
12	6.00 mm	14.15 mm	23.00 mm	1.00 gm	9.15 mm	10.00 mm	9.00 mm	39.00 mm
16	8.45 mm	17.80 mm	23.00 mm	1.77 gm	11.60 mm	10.00 mm	9.00 mm	39.00 mm
20	10.15 mm	24.25 mm	29.00 mm	2.60 gm	15.00 mm	12.20 mm	11.00 mm	51.00 mm
25	22.60 mm	40.00 mm	44.50 mm	4.90 gm	19.30 mm	15.00 mm	15.00 mm	59.00 mm
30	34.15 mm	56.75 mm	64.00 mm	7.20 gm	24.90 mm	16.50 mm	16.00 mm	68.00 mm
30L	24.00 mm	47.30 mm	49.50 mm	6.70 gm	25.10 mm	15.00 mm	15.00 mm	63.70 mm
40L	30.50 mm	57.30 mm	62.00 mm	11.00 gm	29.60 mm	18.00 mm	18.50 mm	90.50 mm
50L	32.60 mm	74.80 mm	80.00 mm	21.00 gm	40.40 mm	24.00 mm	24.50 mm	105.00 mm

Titanium Frame - Duralite Ring
Size	Height A	Height B	Height C	Weight	Ring ID	Foot 1	Foot 2	Total Length
5.5	2.60 mm	6.15 mm	7.40 mm	0.17 gm	3.50 mm	5.00mm	5.00 mm	19.00 mm
6	3.05 mm	7.00 mm	8.50 mm	0.25 gm	4.00 mm	5.50 mm	5.00 mm	20.20 mm
7	3.55 mm	8.15 mm	9.80 mm	0.32 gm	4.95 mm	5.50 mm	5.50 mm	21.80 mm
8	4.85 mm	10.05 mm	12.40 mm	0.45 gm	5.60 mm	5.50 mm	5.50 mm	24.20 mm
10	5.50 mm	12.50 mm	15.20 mm	0.70 gm	7.40 mm	7.00 mm	6.50 mm	26.50 mm
12	6.00 mm	14.15 mm	23.00 mm	1.05 gm	8.85 mm	10.00 mm	9.00 mm	39.00 mm
16	8.45 mm	17.80 mm	23.00 mm	1.90 gm	11.00 mm	10.00 mm	9.00 mm	39.00 mm
20	10.15 mm	24.25 mm	29.00 mm	2.80 gm	14.46 mm	12.20 mm	11.00 mm	51.00 mm
25	22.60 mm	40.00 mm	44.50 mm	5.20 gm	18.75 mm	15.00 mm	15.00 mm	59.00 mm
30	34.15 mm	56.75 mm	64.00 mm	7.60 gm	24.60 mm	16.50 mm	16.00 mm	68.00 mm
30L	24.30 mm	47.00 mm	49.50 mm	6.90 gm	24.60 mm	15.00 mm	15.00 mm	63.70 mm
40L	31.00 mm	56.80 mm	62.00 mm	12.00 gm	28.60 mm	18.00 mm	18.50 mm	90.50 mm
50L	32.60 mm	74.80 mm	80.00 mm	21.00 gm	40.40 mm	24.00 mm	24.50 mm	105.00 mm

Variant

In stock

Quantity:

Free Shipping

Orders $99+ to USA lower 48. More →

Free Returns

100% Satisfaction guaranteed. More →

Specifications

SKU	DBTDF-5.5
Color	Black
Fishing technique	Spinning
Height	7.4 mm
Height bottom	2.6 mm
Height top	6.15 mm
Length	19 mm
Length foot 1	5 mm
Length foot 2	5 mm
Material	Stainless Steel
Ring inside diameter	3.5 mm
Ring material	Duralite
Ring size	5.5
Weight	0.25 g

About American Tackle Co.

With more than three decades servicing the tackle industry, Team American Tackle is still leading the way with innovations and improvements that every angler will appreciate. Being avid anglers and rod builders ourselves, we take pride in offering the ultimate in diversity, durability – and above all – performance.

American Tackle Co.American Tackle TiForged Double Foot Guides TDF - Duralite

$1.89 USD

American Tackle TiForged Double Foot Guides TDF - Duralite

Product Details

316SS or solid Titanium alloy frames
Snagless frame designs in spinning and casting configurations
Hardened frames for extreme strength, keeping rings secure and safe from frame deformation
Slim ring design to reduce weight and polished round for increased casting distances and extended line life
Available with American Tackle proprietary Nanolite or Duralite ring options
American Tackle's ceramic rings provide a near zero coefficient of friction with wet line — extending line life while increasing hardness to that of Silicone Carbide (SiC)
Chrome option is only available in size 6. (Running guides for MicroWave 12 DF Casting Set)
