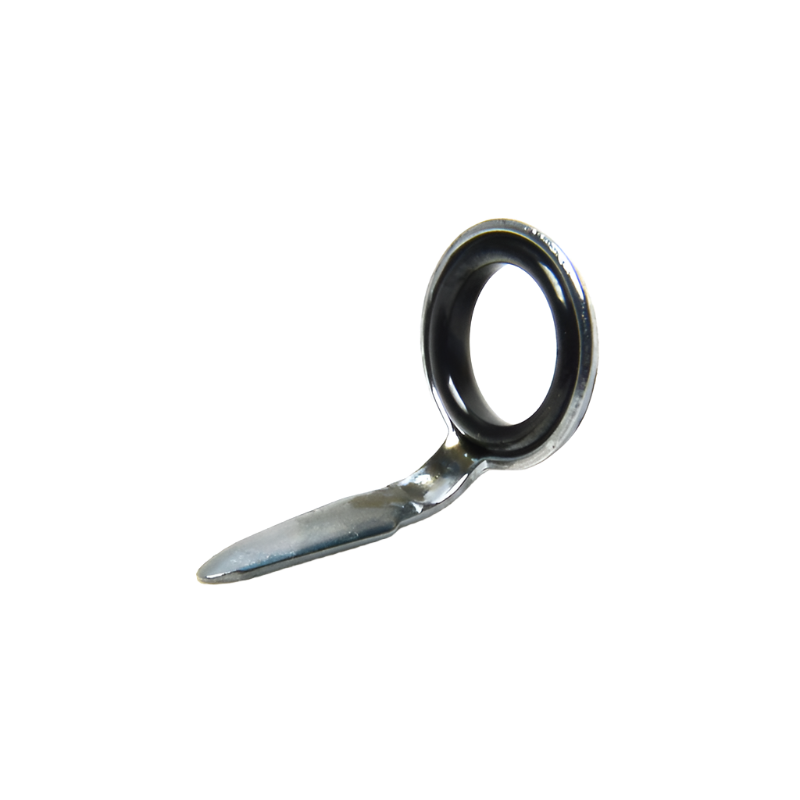

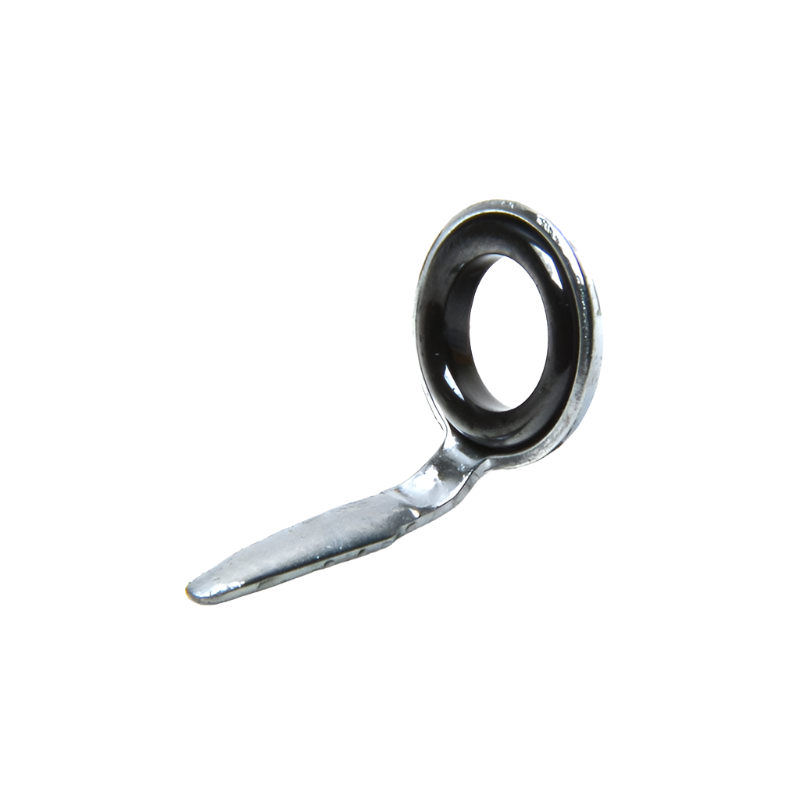

RingLock Running Guides

SKU: BTRLF-5
Sale price$6.39 USD

Color: TiChrome
Ring Type: Blue NanoPlasma
Size: 5
Size Chart - RingLock Casting & Stripping Guides

Duralite Ring
Size Height A Height B Height C Weight Ring ID Foot Length Total Length
6 3.16 mm 7.07 mm 8.69 mm 0.3 gm 3.91 mm 4.30 mm 15.66 mm
7 3.85 mm 8.51 mm 9.80 mm 0.4 gm 4.66 mm 4.89 mm 17.39 mm
8 4.5 mm 9.86 mm 11.76 mm 0.4 gm 5.36 mm 5.02 mm 18.51 mm
10 4.8 mm 11.88 mm 14.60 mm 0.7 gm 7.08 mm 5.5 mm 20.8 mm
12 6.1 mm 14.44 mm 16.66 mm 1.10 gm 8.34 mm 5.75 mm 24.5 mm
16 8.79 mm 19.31 mm 21.46 mm 2.0 gm 10.52 mm 8 mm 31 mm
20 12.95 mm 26.9 mm 28.88 mm 3.6 gm 13.95 mm 12.13 mm 44.8 mm



Nanolite Ring
Size Height A Height B Height C Weight Ring ID Foot Length Total Length
6 2.73 mm 7.13 mm 8.48 mm 0.2 gm 4.40 mm 4.30 mm 15.66 mm
7 3.6 mm 8.2 mm 9.80 mm 0.3 gm 4.6 mm 4.89 mm 17.39 mm
8 4.22 mm 10.22 mm 11.78 mm 0.4 gm 5.8 mm 5.02 mm 18.51 mm
10 5.1 mm 12.74 mm 14.81 mm 0.6 gm 7.64 mm 5.5 mm 20.8 mm
12 5.7 mm 14.9 mm 16.25 mm 1.0 gm 9.2 mm 5.75 mm 24.5 mm
16 8 mm 19.6 mm 22.01 mm 1.6 gm 11.6 mm 8 mm 31 mm
20 11.8 mm 29.41 mm 28.88 mm 3.2 gm 14.88 mm 12.13 mm 44.8 mm



Nanoplasma Ring
Size Height A Height B Height C Weight Ring ID Foot Length Total Length
6 2.73 mm 7.13 mm 8.48 mm 0.2 gm 4.40 mm 4.30 mm 15.66 mm
7 3.6 mm 8.2 mm 9.80 mm 0.3 gm 4.6 mm 4.89 mm 17.39 mm
8 4.22 mm 10.22 mm 11.78 mm 0.4 gm 5.8 mm 5.02 mm 18.51 mm
10 5.1 mm 12.74 mm 14.81 mm 0.6 gm 7.64 mm 5.5 mm 20.8 mm
12 5.7 mm 14.9 mm 16.25 mm 1.0 gm 9.2 mm 5.75 mm 24.5 mm
16 8 mm 19.6 mm 22.01 mm 1.6 gm 11.6 mm 8 mm 31 mm
20 11.8 mm 29.41 mm 28.88 mm 3.2 gm 14.88 mm 12.13 mm 44.8 mm
In stock
Free Shipping

Orders $99+ to USA lower 48. More →

Free Returns

100% Satisfaction guaranteed. More →

Specifications
SKU BTRLF-5
Color TiChrome/Blue
Height 7.19 mm
Height bottom 2.5 mm
Height top 5.74 mm
Length 9.5 mm
Length foot 1 7 mm
Material Stainless Steel
Ring inside diameter 3.24 mm
Ring material Zirconia
Ring size 5
Weight 0.1 g

RingLock Running Guides

Product Details

American Tackle Ring Lock guides are designed for the ultimate in performance and durability. They incorporate a system of pressure fit, enlarged glue reservoir and increased contact area around the ceramic ring to dramatically reduce ring failure. Added bracing and unique frame features greatly reduce ring popping lateral torque through a more stable frame. ATLAS 316SS frame material adds tremendous strength to weight ratio giving this series of guides the edge to outlast and outperform all others.

SPECIAL DESIGN
RING LOCK SYSTEM

The Ring Lock system is focused on preventing ring loss and protection from impact to provide the strongest and most innovative guide on the market today!

ATLAS 316SS
STAINLESS STEEL

Frames comprised of 316SS stainless steel adds tremendous strength to weight ratio giving this series of guides the edge to outlast and outperform all others.

RING LOCK
OFFICIALLY PATENTED

The American Tackle Company is proud to own the official Ring Lock Patented Design. US-Patent No. D627,032

Nanolite Ring

The strength of our NanoLite ring allows elimination of material which results in reduced weight without sacrificing strength. Hardness and low coefficient of friction means these rings will easily handle all of today's modern braids and super lines.

Duralite Ring

A new and improved, proprietary high grade Aluminum Oxide based ring material allows for the reduction of material volume meaning lighter weight and higher compression strength. Economical and highly durable, these rings are popular with rod manufacturers.

NanoPlasma Ring

Our NanoPlasma ring features high tensile strength, diamond polished, braid proof NanoLite ring with rounded ID's and a new PVD Titanium Nitride or Titanium Oxide coating. The Plasma deposition ring gives you a near zero coefficient of friction extending line life while increasing hardness.
