MicroWave 30 Line Control System
MicroWave 30 Line Control System
MicroWave 30 Line Control System
4.2

MicroWave 30 Line Control System

American Tackle Co.
SKU: DBMW30-8
Sale price$2.29 USD
Color: Black
Ring Type: Duralite
Size: #8 Single-Foot Runner
Size Chart - MicroWave 30 Guides



MW30 - Duralite Ring
Model Height A Height B Height C Weight Ring ID Foot 1 Foot 2 Total Length
DBMW-30/10 40.15 mm 45.75 mm 60.10 mm 11.00 gm 24.66 mm 17.00 mm 16.80 mm 67.00 mm
DBMW30-10T 12.75 mm 19.60 mm 22.20 mm 1.40 gm 7.36 mm 11.50 mm 10.30 mm 32.50 mm
DBMW30-8 4.85 mm 10.30 mm 11.40 mm 0.50 gm 5.58 mm 8.75 mm N/A 14.35 mm
DCMW-30/10 40.15 mm 45.75 mm 60.10 mm 11.00 gm 24.66 mm 17.00 mm 16.80 mm 67.00 mm
DCMW30-10T 12.75 mm 19.60 mm 22.20 mm 1.40 gm 7.36 mm 11.50 mm 10.30 mm 32.50 mm
DCMW30-8 4.85 mm 10.30 mm 11.40mm 0.50 gm 5.58 mm 8.75 mm N/A 14.35 mm
DGMW-30/10 40.15 mm 45.75 mm 60.10 mm 11.00 gm 24.66 mm 17.00 mm 16.80 mm 67.00 mm
DGMW30-10T 12.75 mm 19.60 mm 22.20 mm 1.40 gm 7.36 mm 11.50 mm 10.30 mm 32.50 mm
DGMW30-8 4.85 mm 10.30 mm 11.40 mm 0.50 gm 5.58 mm 8.75 mm N/A 14.35 mm



MW30 TITANIUM - Nanolite Ring
Model Height A Height B Height C Weight Ring ID Foot 1 Foot 2 Total Length
NOIMW-30/10 38.45 mm 42.65 mm 61.50 mm 10.50 gm 25.15 mm 17.00 mm 16.80 mm 67.00 mm
NOIMW30-10T 12.87 mm 19.60 mm 22.20 mm 0.80 gm 7.75 mm 11.50 mm 10.30 mm 32.50 mm
NOIMW30-8 4.48 mm 9.90 mm 11.40 mm 0.30 gm 5.85 mm 8.75 mm N/A 14.35 mm



MW30 DOUBLE FOOT - Duralite Ring
Model Height A Height B Height C Weight Ring ID Foot 1 Foot 2 Total Length
DBMW-30/10 38.45 mm 44.20 mm 61.50 mm 11.00 gm 24.66 mm 17.00 mm 16.80 mm 67.00 mm
DBMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.36 mm 11.50 mm 10.30 mm 32.50 mm
DBMW30-10DF 6.95 mm 14.20 mm 16.40 mm 1.10 gm 7.36 mm 11.33 mm 9.85  mm 29.40 mm
DCMW-30/10 38.45 mm 44.20 mm 61.50 mm 11.00 gm 24.66 mm 17.00 mm 16.80 mm 67.00 mm
DCMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.36 mm 11.50 mm 10.30 mm 32.50 mm
DCMW30-10DF 6.95 mm 14.20 mm 16.40 mm 1.10 gm 7.36 mm 11.33 mm 9.85  mm 29.40 mm
DGMW-30/10 38.45 mm 44.20 mm 61.50 mm 11.00 gm 24.66 mm 17.00 mm 16.80 mm 67.00 mm
DGMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.36 mm 11.50 mm 10.30 mm 32.50 mm
DGMW30-10DF 6.95 mm 14.20 mm 16.40 mm 1.10 gm 7.36 mm 11.33 mm 9.85  mm 29.40 mm



MW30 - Nanolite Ring
Model Height A Height B Height C Weight Ring ID Foot 1 Foot 2 Total Length
NBMW-30/10 38.45 mm 42.65 mm 61.50 mm 10.60 gm 25.15 mm 17.00 mm 16.80 mm 67.00 mm
NBMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.75 mm 11.50 mm 10.30 mm 32.50 mm
NBMW30-8 4.48 mm 9.90 mm 11.40 mm 0.50 gm 5.85 mm 8.75 mm N/A 14.35 mm
NCMW-30/10 38.45 mm 42.65 mm 61.50 mm 10.60 gm 7.75 mm 17.00 mm 16.80 mm 67.00 mm
NCMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.70 mm 11.50 mm 10.30 mm 32.50 mm
NCMW30-8 4.48 mm 9.90 mm 11.40mm 0.50 gm 7.75 mm 8.75 mm N/A 14.35 mm
NGMW-30/10 38.45 mm 42.65 mm 61.50 mm 10.60 gm 25.15 mm 17.00 mm 16.80 mm 67.00 mm
NGMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.75 mm 11.50 mm 10.30 mm 32.50 mm
NGMW30-8 4.48 mm 9.90 mm 11.40 mm 0.50 gm 5.85 mm 8.75 mm N/A 14.35 mm



MW30 DOUBLE FOOT- Nanolite Ring
Model Height A Height B Height C Weight Ring ID Foot 1 Foot 2 Total Length
NBMW-30/10 38.45 mm 42.65 mm 61.50 mm 10.60 gm 25.15 mm 17.00 mm 16.80 mm 67.00 mm
NBMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.75 mm 11.50 mm 10.30 mm 32.50 mm
NBMW30-10DF 6.95 mm 14.40 mm 16.40 mm 1.00 gm 7.75 mm 11.33 mm 9.85  mm 29.40 mm
NCMW-30/10 38.45 mm 42.65 mm 61.50 mm 10.60 gm 25.15 mm 17.00 mm 16.80 mm 67.00 mm
NCMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.75 mm 11.50 mm 10.30 mm 32.50 mm
NCMW30-10DF 6.95 mm 14.40 mm 16.40 mm 1.00 gm 7.75 mm 11.33 mm 9.85  mm 29.40 mm
NGMW-30/10 38.45 mm 42.65 mm 61.50 mm 10.60 gm 25.15 mm 17.00 mm 16.80 mm 67.00 mm
NGMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.75 mm 11.50 mm 10.30 mm 32.50 mm
NGMW30-10DF 6.95 mm 14.40 mm 16.40 mm 1.00 gm 7.75 mm 11.33 mm 9.85  mm 29.40 mm



MW30 DOUBLE FOOT TITANIUM- Nanolite Ring
Model Height A Height B Height C Weight Ring ID Foot 1 Foot 2 Total Length
NOIMW-30/10 37.20 mm 44.80 mm 61.50 mm 10.60 gm 25.15 mm 17.00 mm 16.80 mm 67.00 mm
NOIMW30-10T 12.87 mm 19.60 mm 22.20 mm 1.40 gm 7.75 mm 11.50 mm 10.30 mm 32.50 mm
NOIMW30-10DF 6.95 mm 14.40 mm 16.40 mm 0.60 gm 7.75 mm 11.33 mm 9.85  mm 29.40 mm



In stock
Free Shipping

Orders $99+ to USA lower 48. More →

Free Returns

100% Satisfaction guaranteed. More →

Specifications
SKU DBMW30-8
Color Black
Height 11.4 mm
Height bottom 4.85 mm
Height top 10.3 mm
Length 14.35 mm
Length foot 1 8.75 mm
Material Stainless Steel
Ring inside diameter 5.58 mm
Ring material Duralite
Ring size 8
Weight 0.5 g

MicroWave 30 Line Control System

Product Details

Incorporating award winning MicroWave Line Control Technology with Snagless frame designs, the MW30 guide system is a bold new take on Heavy Freshwater, Inshore, Surf, Carp and Light-Heavy Offshore rod guides. MicroWave 30 is the ultimate in fishing rod line management, improving both angler and rod performance.

This system consists of a double foot designed 30/10mm stripping guide to a double foot 10mm transition guide onto 8mm single foot or 10mm double foot running guides.

Features:

  • Snagless design
  • Passes leader knots of all sizes
  • Single foot 8mm or double foot 10mm running guide options
  • Available with Duralite and Nanolite rings
  • Available in the Titanium TidalWave series
  • Set includes 1 stripper guide, 1 transition guide & 5 running guides

MW30 Guide Sets

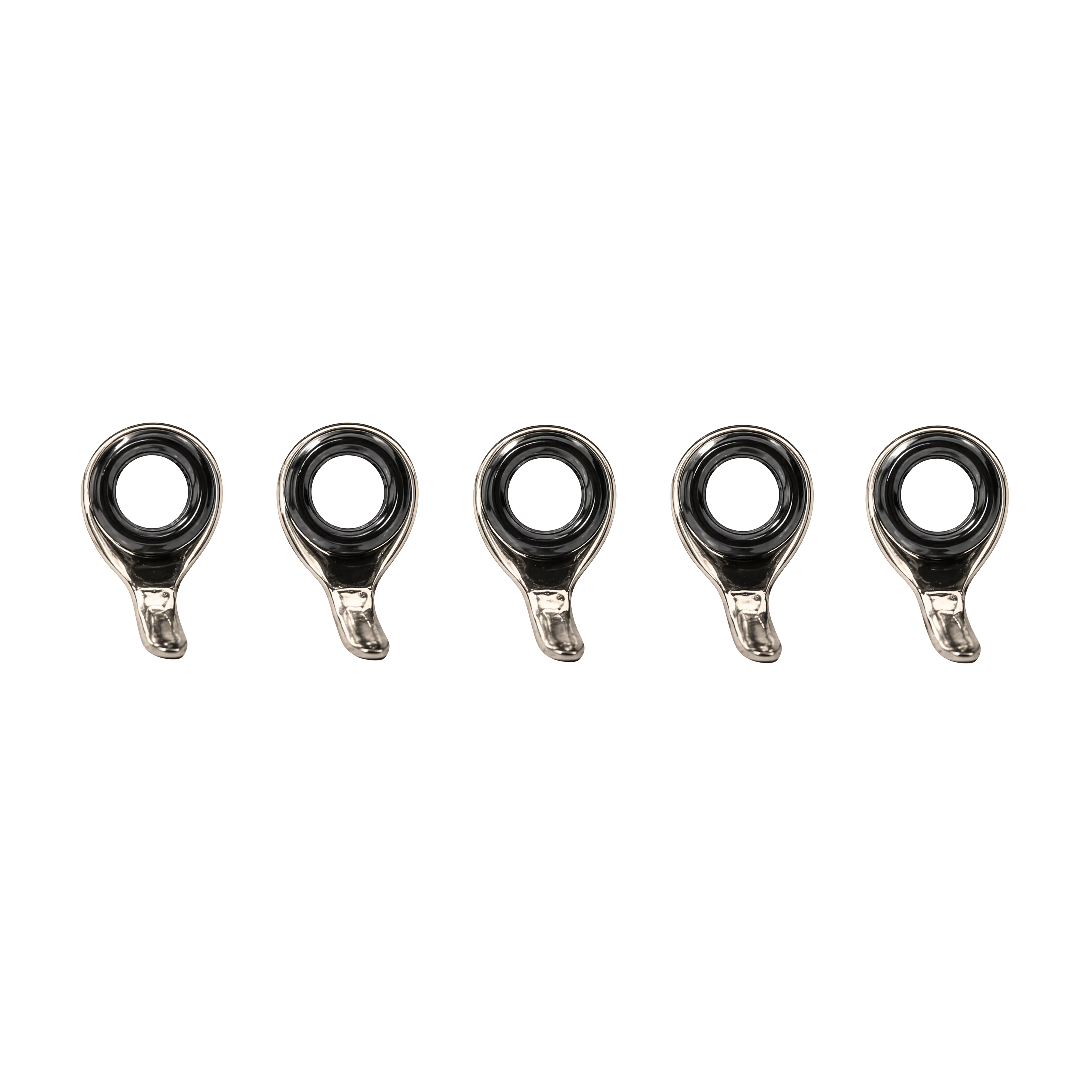

MW30 - Single Foot Runners

Material Black Black Running Chrome Chrome Running Gunsmoke Gunsmoke Running TidalWave TidalWave Running
Nanolite NBMW30-SET NBMW30-8 NCMW30-SET NCMW30-8 NGMW30-SET NGMW30-8 NOIMW30-SET NOIMW30-8
Duralite DBMW30-SET DBMW30-8 DCMW30-SET DCMW30-8 DGMW30-SET DGMW30-8 - -

Stripper Size: 30/10 | Transition Size: 10 | Running Size: 8 | # of Guides in Set: 7

MW30 - Double Foot Runners

Material Black Black Running Chrome Chrome Running Gunsmoke Gunsmoke Running TidalWave TidalWave Running
Nanolite NBMW30-SETDF NBMW30-10DF NCMW30-SETDF NCMW30-10DF NGMW30-SETDF NGMW30-10DF NOIMW30-SETDF NOIMW30-10DF
Duralite DBMW30-SETDF DBMW30-10DF DCMW30-SETDF DCMW30-10DF DGMW30-SETDF DGMW30-10DF - -

Stripper Size: 30/10 | Transition Size: 10 | Running Size: 10 | # of Guides in Set: 7

MW30 Sizes & Specifications

How to measure MicroWave guide heights
Guide Height A Height B Height C Weight Ring ID Foot 1 Foot 2 Total Length
Duralite Ring

#30/10 Stripper

40.15 mm

45.75 mm

60.10 mm

11.00 gm

24.66 mm

17.00 mm

16.80 mm

67.00 mm

#10T Transition

12.75 mm

19.60 mm

22.20 mm

1.40 gm

7.36 mm

11.50 mm

10.30 mm

32.50 mm

#10DF Runner

6.95 mm

14.20 mm

16.40 mm

1.10 gm

7.36 mm

11.33 mm

9.85  mm

29.40 mm

#8 Runner

4.85 mm

10.30 mm

11.40 mm

0.50 gm

5.58 mm

8.75 mm

N/A

14.35 mm
Nanolite Ring

#30/10 Stripper

38.45 mm

42.65 mm

61.50 mm

10.60 gm

25.15 mm

17.00 mm

16.80 mm

67.00 mm

#10T Transition

12.87 mm

19.60 mm

22.20 mm

1.40 gm

7.75 mm

11.50 mm

10.30 mm

32.50 mm

#10DF Runner

6.95 mm

14.40 mm

16.40 mm

1.00 gm

7.75 mm

11.33 mm

9.85  mm

29.40 mm

#8 Runner

4.48 mm

9.90 mm

11.40 mm

0.50 gm

5.85 mm

8.75 mm

N/A

14.35 mm
Titanium

#30/10 Stripper

38.45 mm

42.65 mm

61.50 mm

10.50 gm

25.15 mm

17.00 mm

16.80 mm

67.00 mm

#10T Transition

12.87 mm

19.60 mm

22.20 mm

0.80 gm

7.75 mm

11.50 mm

10.30 mm

32.50 mm

#10DF Runner

6.95 mm

14.40 mm

16.40 mm

0.60 gm

7.75 mm

11.33 mm

9.85 mm

29.40 mm

#8 Runner

4.48 mm

9.90 mm

11.40 mm

0.30 gm

5.85 mm

8.75 mm

N/A

14.35 mm
Measurement Key

Height A: Bottom of the foot to bottom of the ring ID

Height B: Bottom of the foot to top of ring ID

Height C: Total guide height
