CRB Steel Turning Mandrels – 18" with Collars (1/4", 5/16", 3/8", 7/16")

Sale price$14.95 USD
SKU: SM18-1/4
UPC: 099253146009

Size: 1/4"
In stock
Free Shipping

Orders $99+ to USA lower 48. More →

Free Returns

100% Satisfaction guaranteed. More →

CRB Steel Turning Mandrels – 18" with Collars (1/4", 5/16", 3/8", 7/16")

Product Details

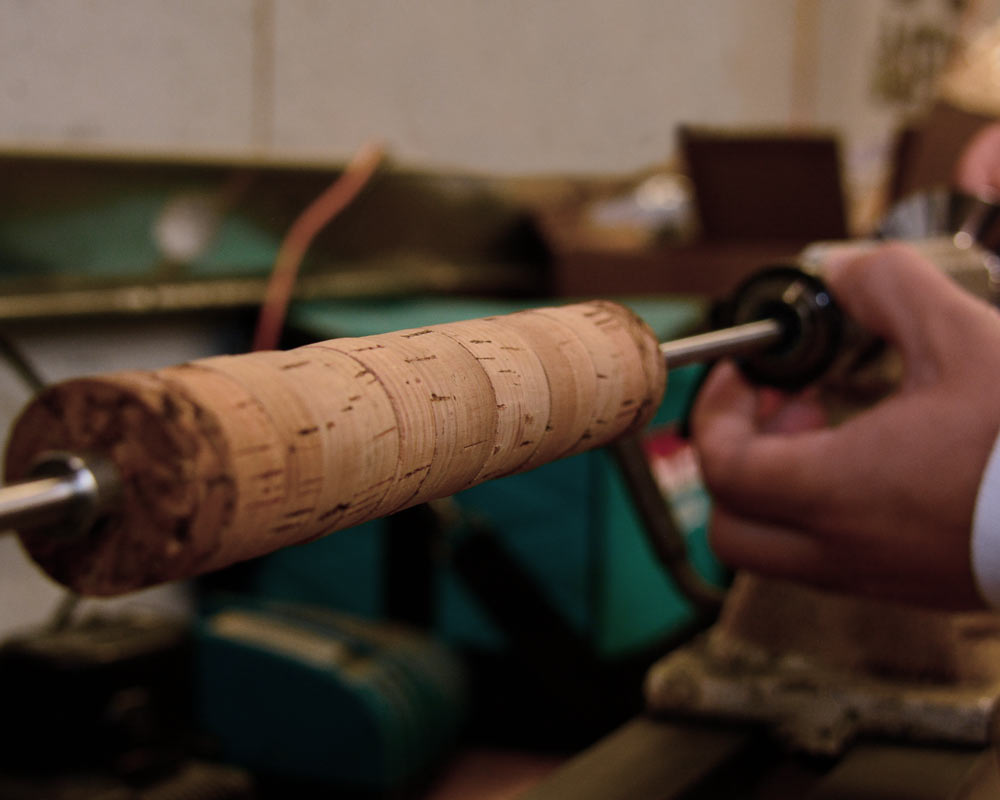

Built for precision grip shaping, the CRB Steel Turning Mandrels are made from 18" oil-hardened steel and engineered with 60° tapers on each end for use with a live center. Designed specifically for turning cork and EVA handles, these mandrels deliver the stability and accuracy rod builders need at the lathe.

Each mandrel now comes equipped with a pair of adjustable, removable collars to securely lock your handle in place while you shape and sand. Available in four outside diameters—1/4", 5/16", 3/8", and 7/16"—you can select the size that best fits your grip-building projects.

Features & Benefits:

  • Precision Turning: Perfect for shaping cork and EVA handles.
  • Oil-Hardened Steel: Built tough for years of shop use.
  • Secure Grip Hold: Includes removable collars to keep grips locked in place.
  • Lathe-Ready Design: 60° tapers at both ends for live center compatibility.
  • Size Options: Available in 1/4", 5/16", 3/8", or 7/16" O.D.



Proposition 65 Warning


CA WARNING.

CA Proposition 65 Warning

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov

GripsCorkProductQualityWorksMandrillPrecisionQuality drill stockToolValue
  • 5 stars: 21 (91%)
  • 4 stars: 2 (9%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
B
Brandon Truong (Orlando, FL, US)
Upgrade for sanding grips

Made my sanding like 2x easier 😭. I 100% recommend to buy this or have it mudhole include this in the pro wrapper g2

D
Dennis Brown (Las Vegas, NV, US)
1/4” steel mandrel

Excellent mandrill for gluing and or turning cork. Make sure you use a release agent before use so it does not stick. I recommend this product and will buy again

M
Mike Brown

They work very well I wish I would’ve got a second son and my pieces together. I’ll put them back on it to Dry. I have to wait for the piece of drive before I can start something else.

J
Joey Lascelles (Oviedo, FL, US)
High quality.

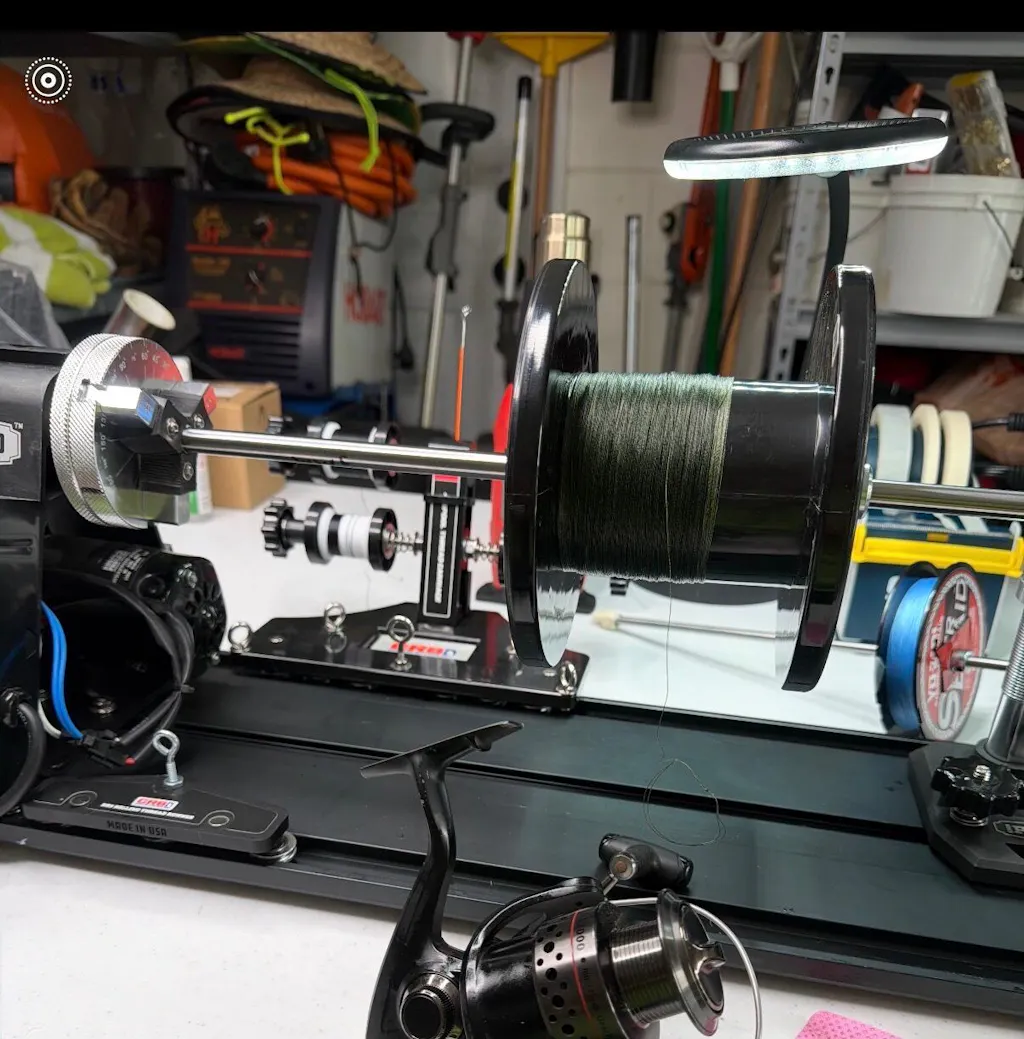

I purchased 2. Not to turn grips, but rather to use my power wrapper to remove braid line from reels and put into a spool, only then to despoil my reels with the fresh line on top and the older highly used line on the base. I eventually started using them to turn and sand grips. The locking collars help if you need to pinch your item onto the mandrel, such as an old line spool. They’re high quality. I’m actually considering installing a gimbal onto one end so that I can secure it to my power wrapper chuck easier. I seem to only need to have one side open or able to slide items onto or off of this thing.

W
William Brown (Las Vegas, NV, US)
Turning mandrel

Precision made of good quality drill stock works great. But wax the mandrel good before putting cork rings on for turning.

T
Todd (Taylor, TX, US)
CRB Steel Turning Mandrels

These mandrel are tops for turning cork and eva grips. They are very true when placed in my lathe.

A
Anonymous (Tampa, FL, US)
Love it

Great

P
Patrick Wentling (Hummelstown, PA, US)
Good Product - Be careful when removing grips

I bought a few of these to start building my own grips. They work great but keep a few things in mind.

1. I ordered a few extra collars to put a thicker OD on the end and help the jaws on the power wrapper grip it.

2. If you use a hammer to loosen the grip from the mandrel when finished, it may "mushroom" the end making it difficult to remove a collar.

Keeping those things in mind. This is the perfect tool to build your custom rod grips.

D
Dave O (Olympia, WA, US)
Thank you MudHole!

Hard to find a mandrel long enough to do my grips but sure enough, Mud Hole has them. And for a good price too. No problems using the 1/4 on my lathe. It is indeed a little longer than needed, which puts a little flex in the long span, however no issues using it. I’ve done many 7” and a couple 10/11” grips on it.

K
Kenny Correll (Orlando, FL, US)
Work great for cork

Works as should

K
K Anderson (Shady Side, MD, US)
They work

Work as they should

M
Michael Ross (Rancho Cucamonga, CA, US)
1/4inch mandrel

I purchased this for making a fly rod cork handle. It is well make, no excessive flex when sanding a cork handle. I was being taught how to make cork handles, and was shown other rod material to use. While the other products were more economical, they were of lesser quality. I will be buying another 14 inch mandrel.

R
Rick MARSH (Hamilton, MT, US)
Turning

Glad was able to finally get size i needed. Works great

S
Steven

Great product anr value

T
Tim Handforth (New Waterford, NS, CA)

Perfect for my needs.

H
Harold C. Marks (Pittsburgh, PA, US)
Adequate.

Good value for money.

M
Mark

They work very well and fit the handles well

j
john postizzi (Needham, MA, US)
Mandrel doing mandrel stuff

Easy to use little bit of wax and everything came off nice and simple. Good product I recommend.

D
Dennis Brown (Las Vegas, NV, US)
Turning mandrel

This mandrel is of hi quality hardened stock , accurate thru out, turns true with no wobbles, should last along time. I would highly recommend this mandrel.

V
Valarie Lemas (Anchorage, AK, US)
Mandrels

Nice product, used them on a couple ice rods

J
Jason Baker (Cumming, GA, US)
It works and sized right

It’s a mandrel - a steel rod not much to review but it works fine and the sizes fit- be sure to get the wax though if you have a mold release wax? Same same but you need to epoxy the EVA to the mandrel

L
Laska's D.L. (Madison, WI, US)
Works just fine

Only mandrels I’ll use, work great, collars stay in place.

k
kasey karch
Great quality!

Sturdy and work well with my lathe. Has made turning my grips that much easier.

G
Gary Graham

Are the turning mandrels stainless steel, or chrome plated? What does the wax do?

Mud Hole Custom Tackle

Hey Gary, these mandrels are steel. The wax prevents the epoxy from completely curing to the mandrels. So that after the grip is shaped, the mandrel can be removed from the grip. - Mud Hole

G
Gary Graham

Is the turning arbor price for 1 or the set?

Mud Hole Custom Tackle

Hey Gary, yes the price is for one of the mandrels, not a set. - Mud Hole
