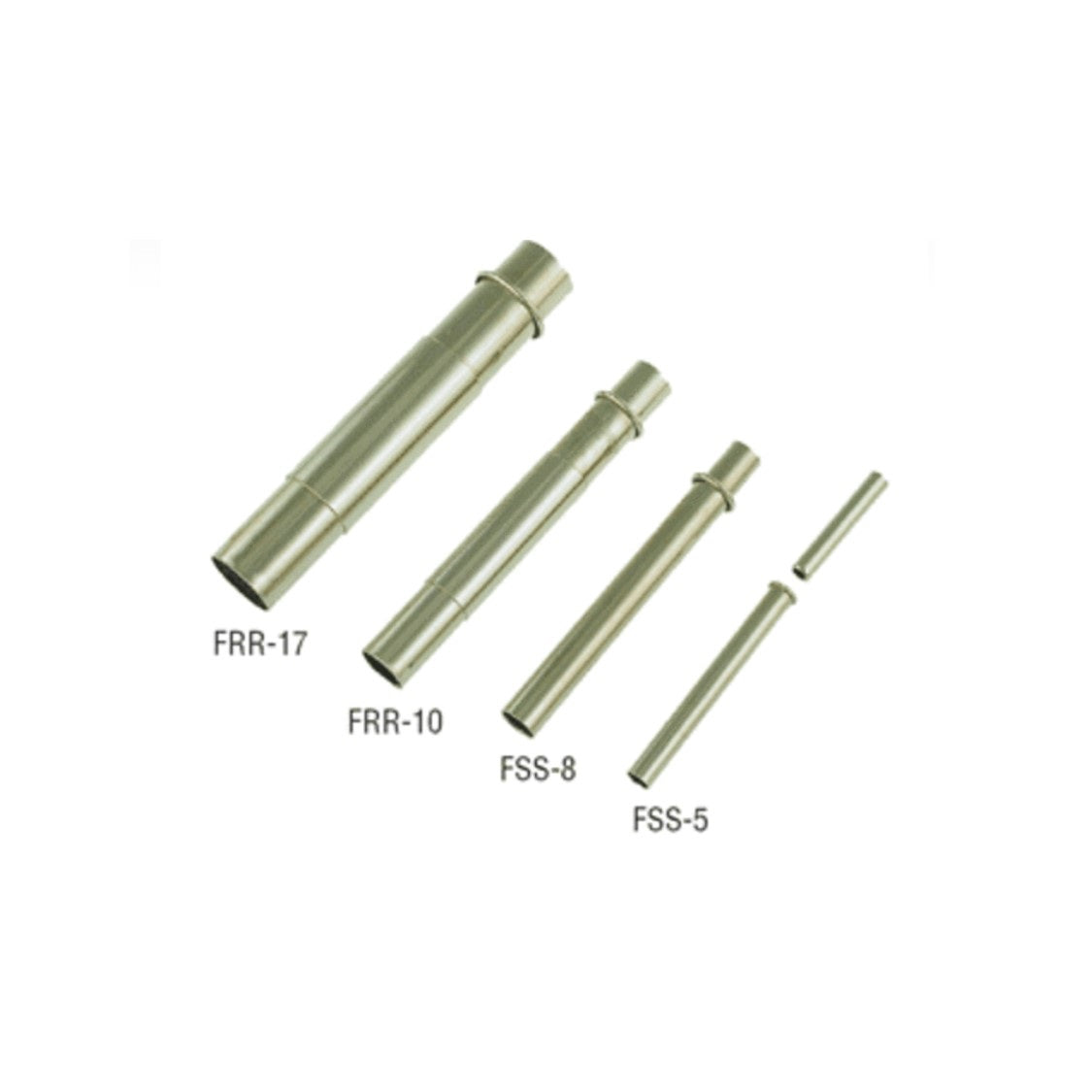

American Tackle Reinforced Brass Ferrules – Chrome Plated
Specifications
American Tackle Reinforced Brass Ferrules – Chrome Plated
Product Details
Built from high-quality brass and chrome plated for durability, these reinforced two-piece ferrules provide a strong, reliable connection between rod sections. Ideal for new builds or as a repair option, the FRR series adds extra strength where it’s needed most.
Features:
- Reinforced brass construction for maximum durability
- Chrome plated finish for corrosion resistance
- Two-piece ferrule design, available in multiple sizes (mm)
- Great for rod building or repair projects
Specifications
| Model | Male ID | Female ID |
|---|---|---|
| FRR-9.5 | .340 | .376 |
| FRR-10.0 | .366 | .400 |
| FRR-11.0 | .400 | .439 |
| FRR-12.0 | .440 | .450 |
| FRR-13.0 | .480 | .510 |
| FRR-14.0 | .520 | .550 |
| FRR-15.0* | .545 | .590 |
| FRR-16.0* | .599 | .630 |
| FRR-17.0* | .635 | .672 |
| FRR-18.0* | .677 | .708 |
| FRR-19.0* | .670 | .725 |
| FRR-20.0* | .740 | .780 |
* Ferrule size has been discontinued
Warning: California's Proposition 65
Proposition 65 Warning
CA WARNING.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov
Files & Documents
Go a size up than the listing, they should really have the title be inner diameter size as that’s the size that’s important not the outer diameter that goes into the ferrule (if you are buying just the male end I can see using the outer diameter but as a set what is important is the inner diameter of the male end and the outer diameter of the female end. As that’s the measurements you need for fitting into or onto a blank.
If your going to be using mm in the sizing on the listing title and description than stick with mm on the spec table. Even better do a side by side spec with it being 9.24mm/0.366in (also use the measurement system abbreviation next to the measurement like shown in my example)
So with these ferrules get the size above the mm your rod blank is that you are inserting into the male end.
Ferrule looks good though
Product
I bought a one piece rod that was just too long to stow in my boat. Bought the ferrule and installed it. Easy to do and works great
Thanks
i had to cut down the tip half o get the that part to fit the blank and insert a solid piece into the blank to reinforce the rod so it would not break never everhad to do that on other brand ferrals
Looks great, measures out correctly to described measurements. Male to female fit is tight and secure. Recommend a bit of lube before fitting together.
very good
I have cut and ferruled rods for many years, without Ferrule, failure.
Item works OK, but they need to be resized to fit the slope of the blank.
Not a good application. I was trying to make a full length blank into three piece. I needed a stepped ferrule instead.
I am looking for a ferrule that has an inside diameter of the larger piece of 11mm and and inside diameter of the smaller piece of 10.5mm could also be 11mm. Not sure what size to buy as I don't understand your sizing system. Thanks
You'll need to look at the necessary ID of the smaller side to determine what size you need. In this case, 10.5mm for the male side would require a size 12.0mm ferrule. You'll need to create a thin arbor under the female side prior to gluing.
Is it possible to get a FRR larger than 15? The largest you offer. Greater than 16 would be helpful. Thanks
Hey Steven, Unfortunately the size 15 is the largest that is currently offered. It does not look like we have the option to order any larger through our distributor. - Mud Hole
