Fuji K-Series LKW Mid-Weight Casting Guides
Product Details

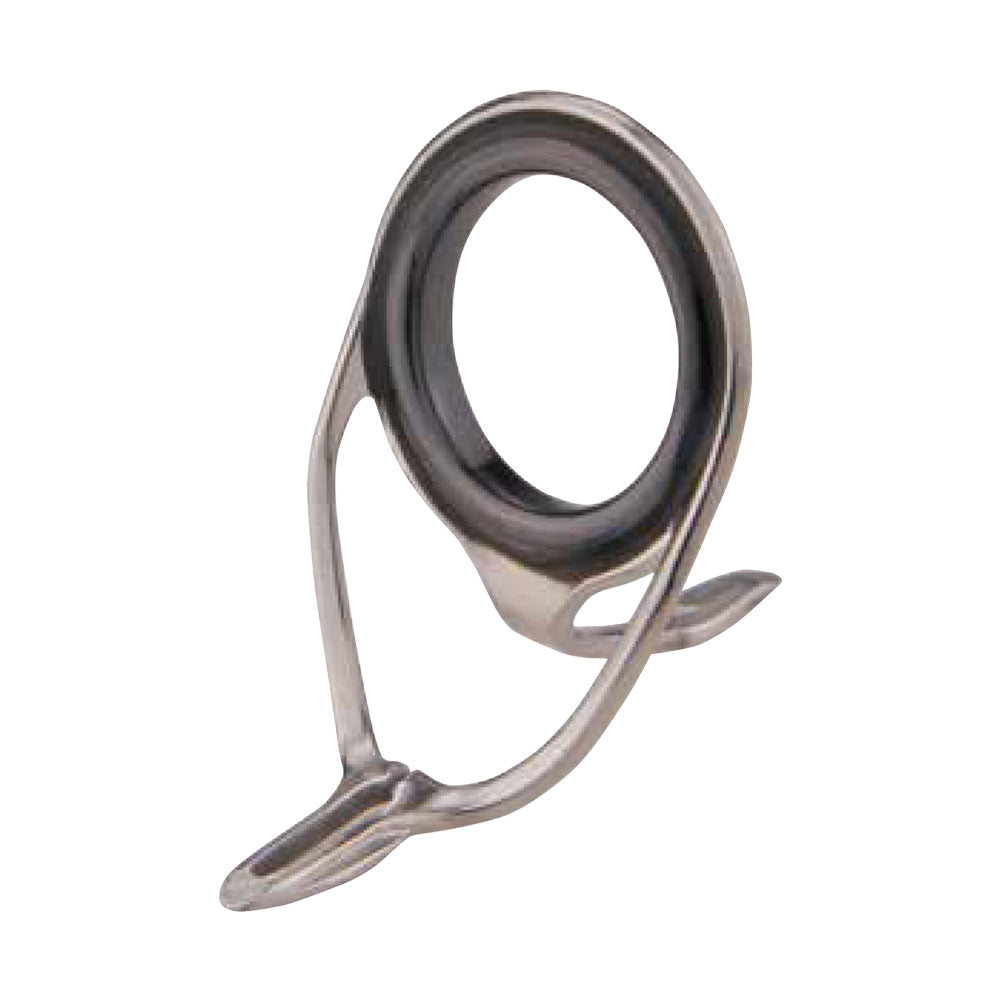

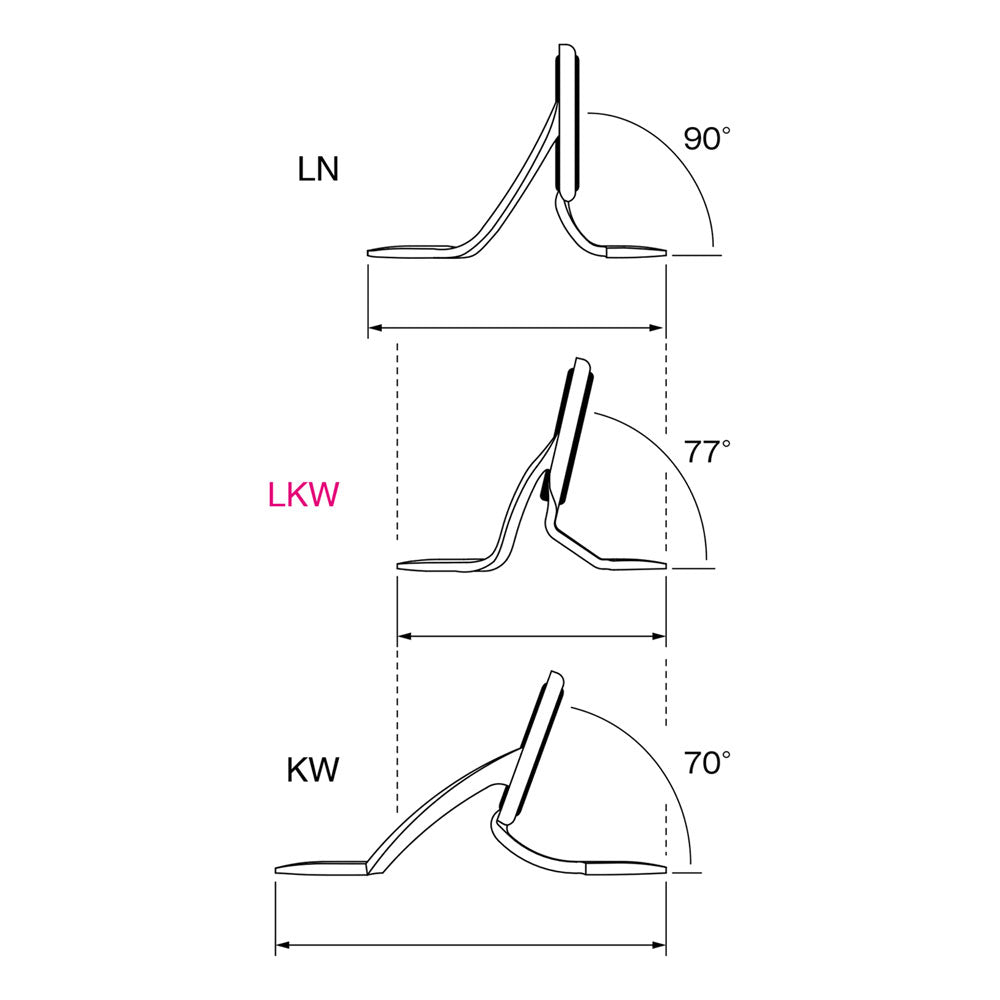

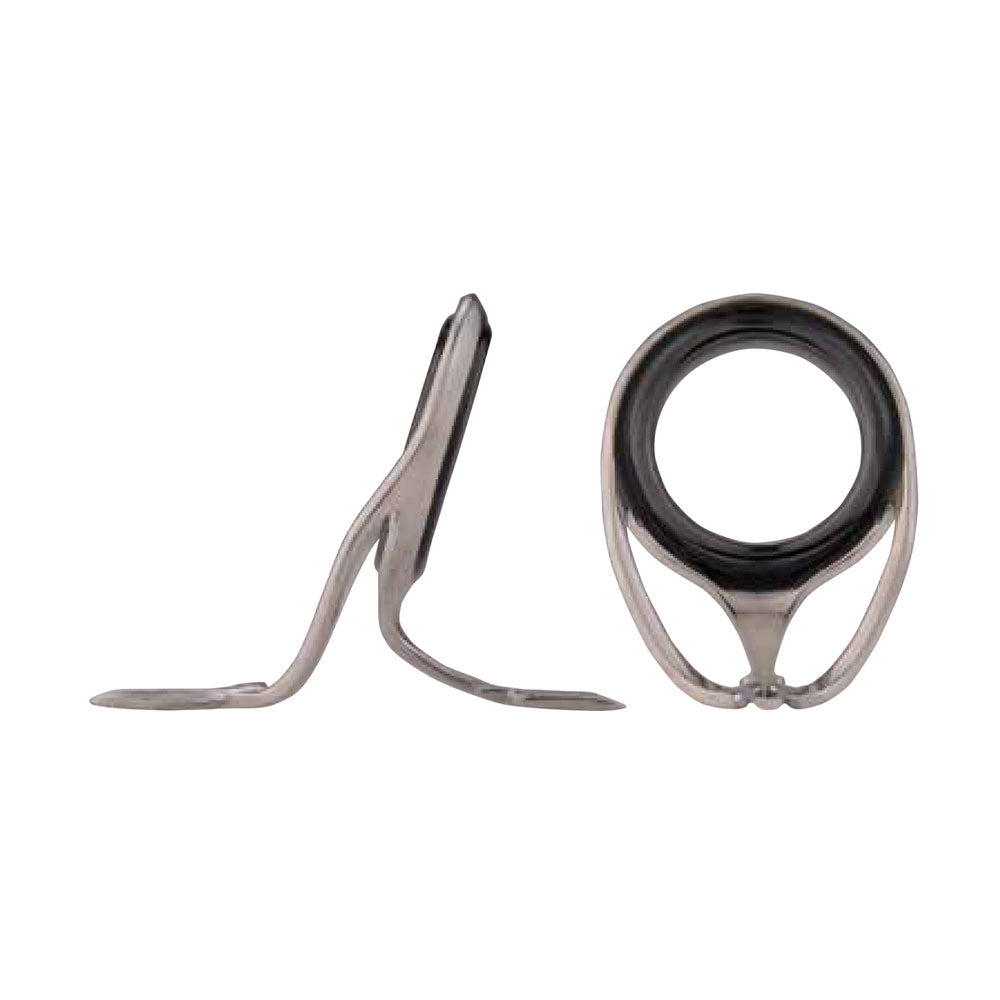

The Fuji LKW is the lightest double-foot guide in the K-Series lineup, purpose-built for anglers and builders seeking a lower-profile casting guide that maintains Fuji’s legendary tangle-free K-frame slope. The LKW features a compact footprint and reduced overall length while still delivering excellent strength and performance for mid-weight casting applications.
Key Features:
- Lightest Double-Foot Guide in K-Series: Ideal for lightweight and balanced rod builds
- Compact Design: Shorter overall length for tighter layouts without sacrificing strength
- Tangle-Free Sloped K-Frame: Prevents line wrap and wind knots, especially with braid
- Mid-Weight Performance: Perfect balance between strength, size, and sensitivity
- Compatible with KR Concept Layouts: Great as a reduction or transition guide

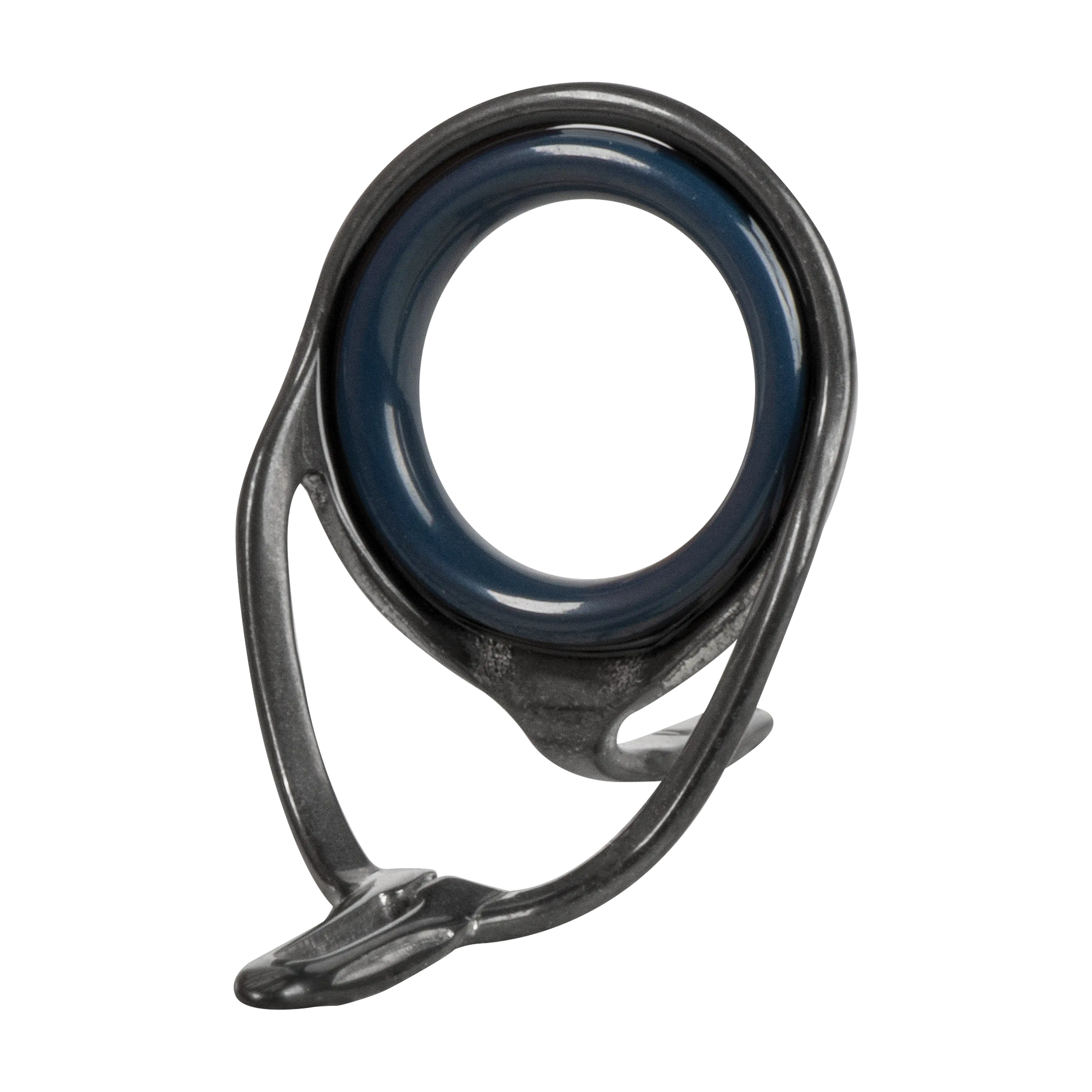

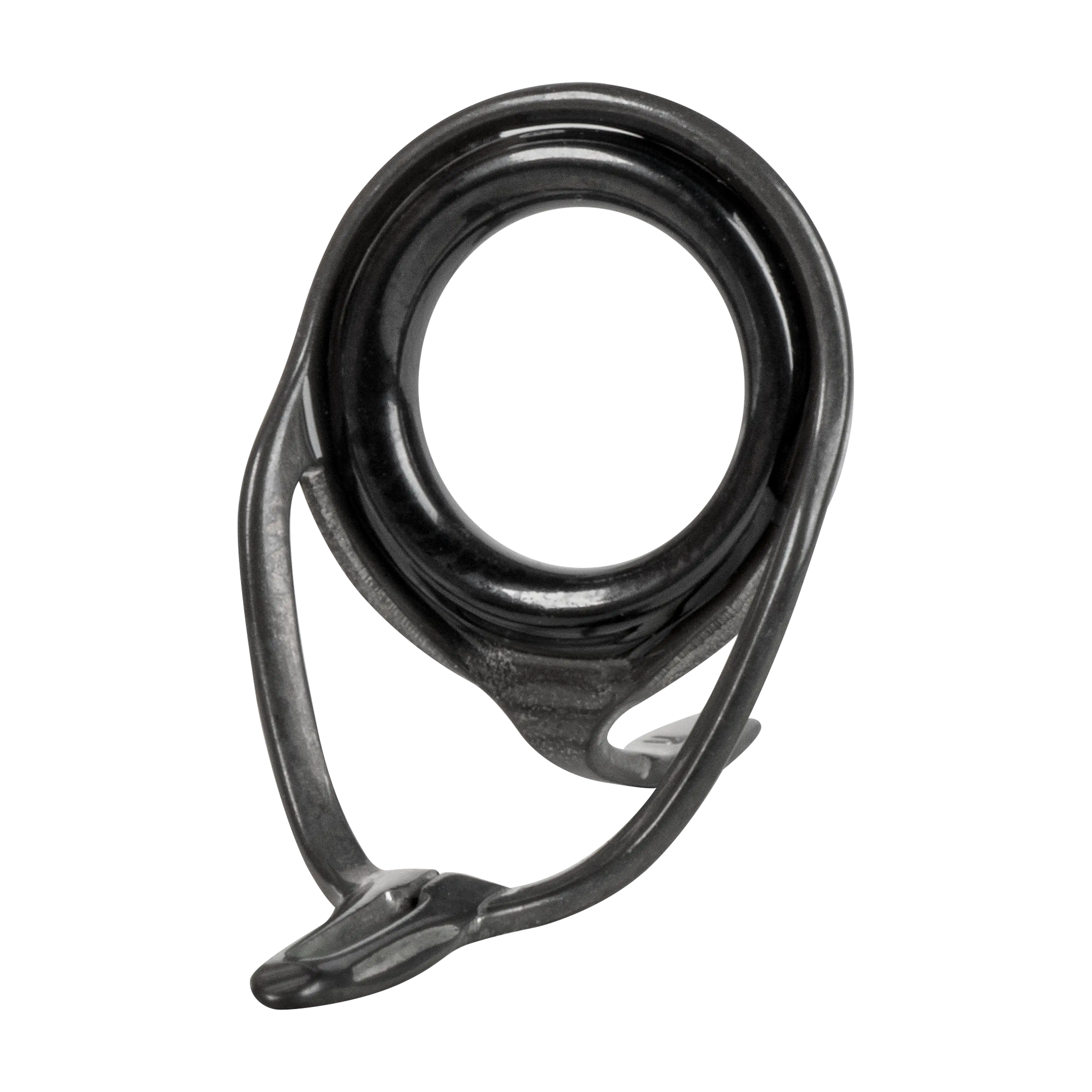

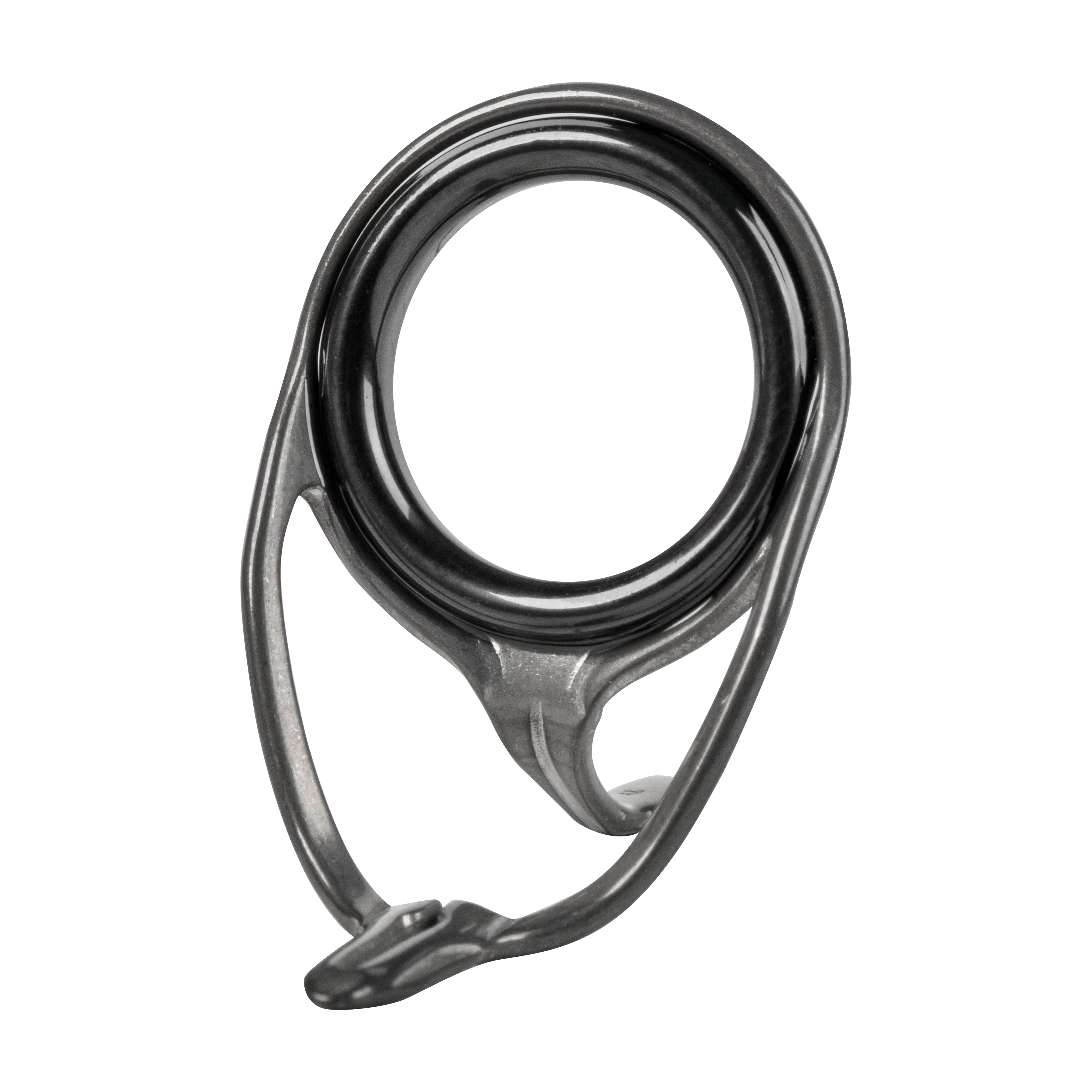

- Ring Options: Available in Torzite®, SiC, Alconite®, Fazlite®, and Concept “O”
Recommended For:
Casting rods where a lower profile and reduced weight are preferred—ideal for bass, inshore, and finesse applications requiring precise guide train control.
KR Guide Placement Software

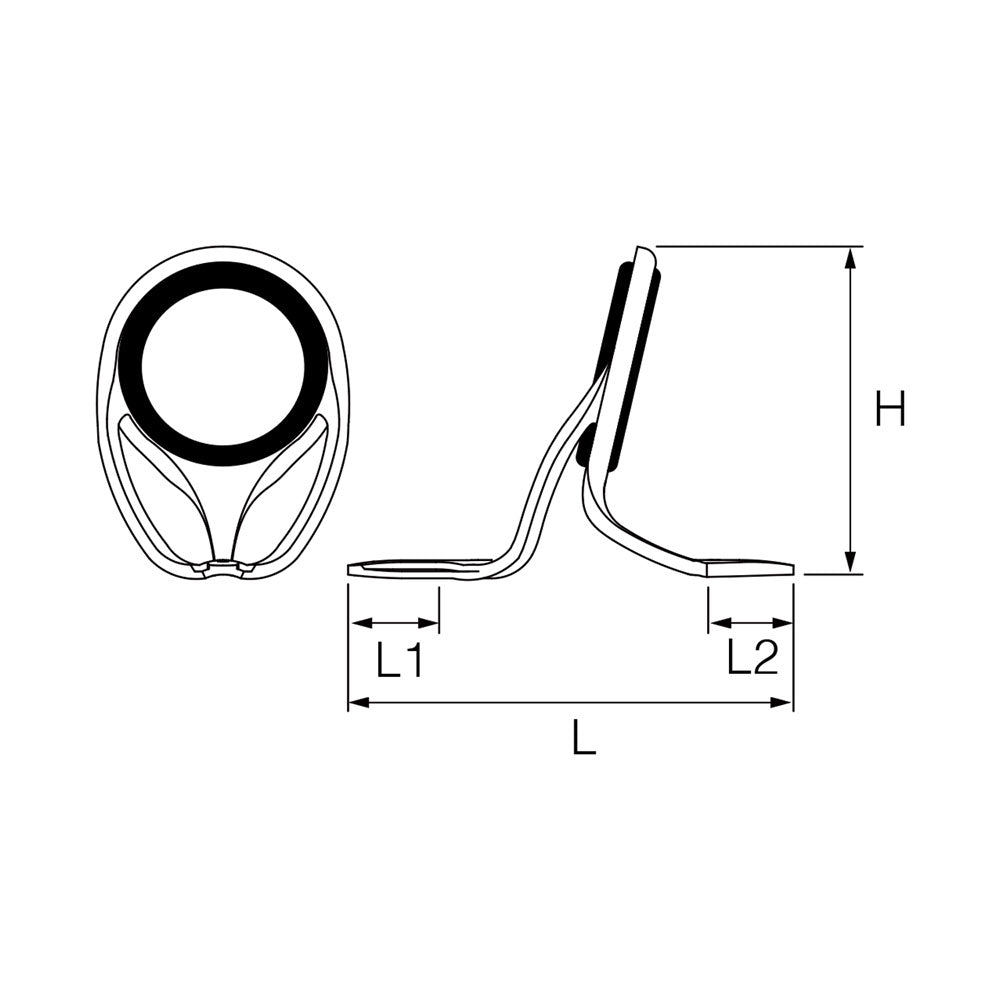

Size Chart
| SIZE | Height (MM) | Rear Foot Length(MM) | Front Foot Length (MM) | Total Length (MM) |
|---|---|---|---|---|
| 6 | 8.8 | 3.2 | 3.3 | 16.9 |
| 7 | 10.6 | 3.5 | 3.4 | 17.1 |
| 8 | 11.9 | 5.9 | 3.8 | 19.8 |
| 10 | 15.1 | 6.4 | 4.3 | 21.1 |
| 12 | 18.1 | 6.7 | 4.9 | 22.9 |
| 16 | 22.5 | 7.4 | 5.4 | 27.2 |
