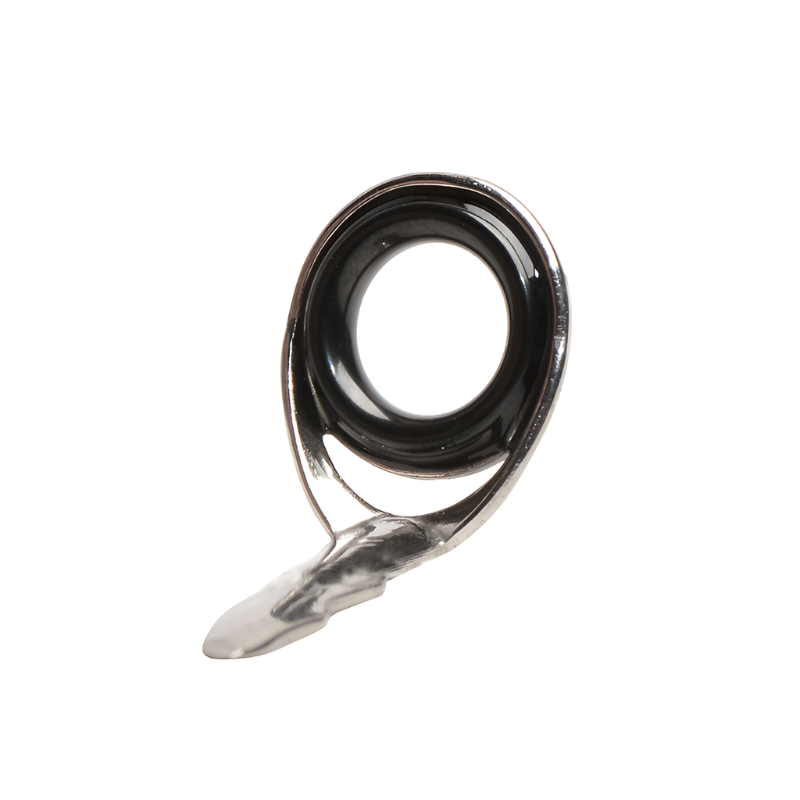

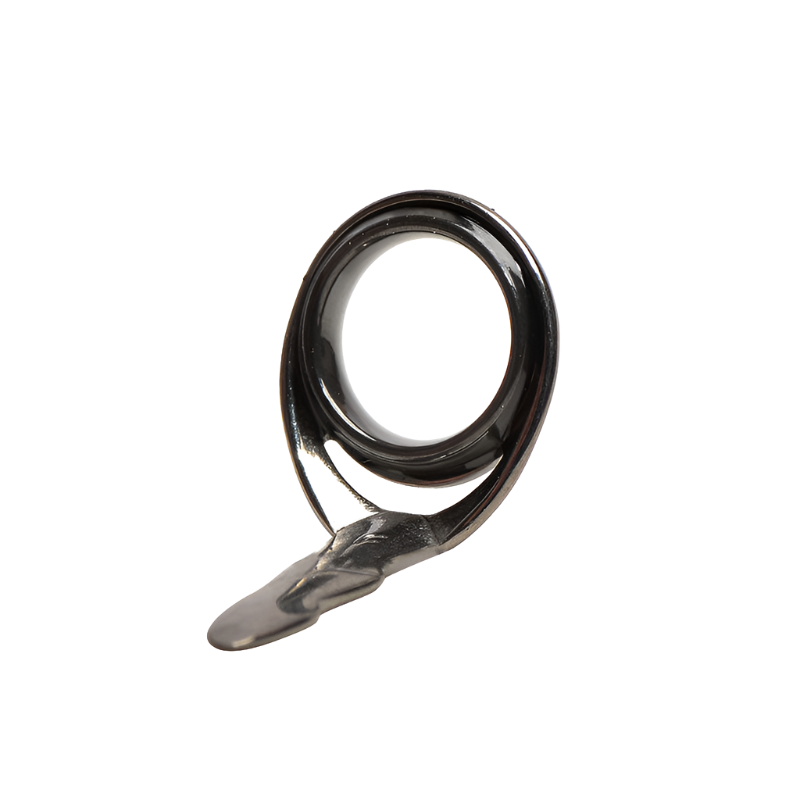

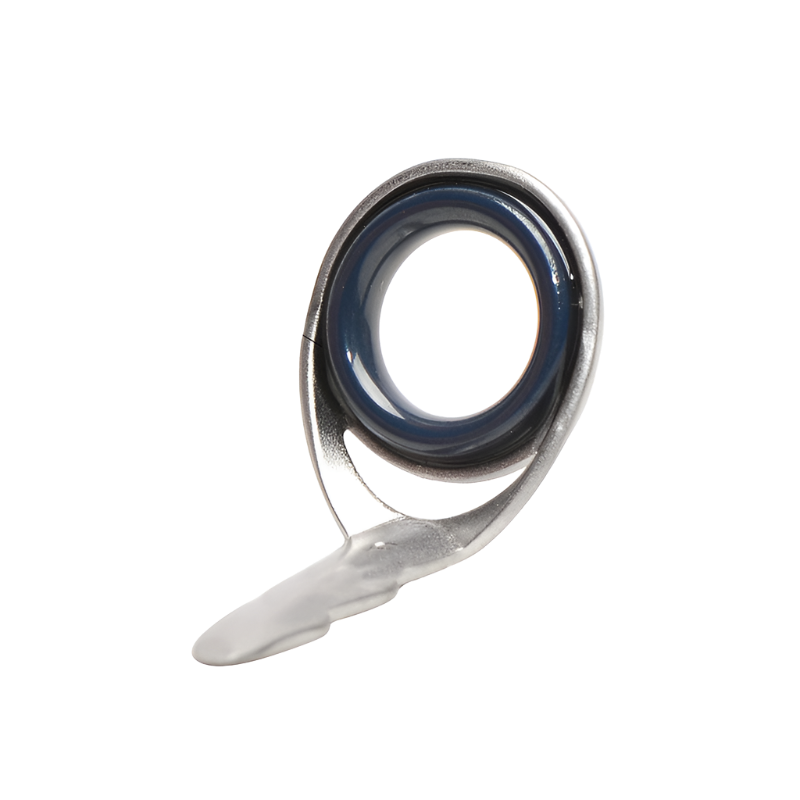

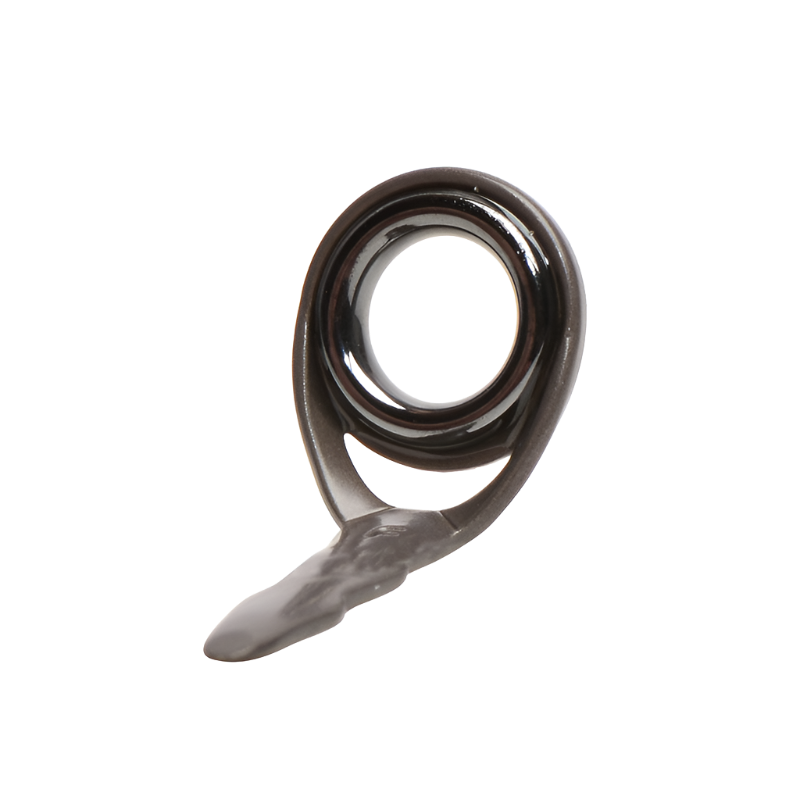

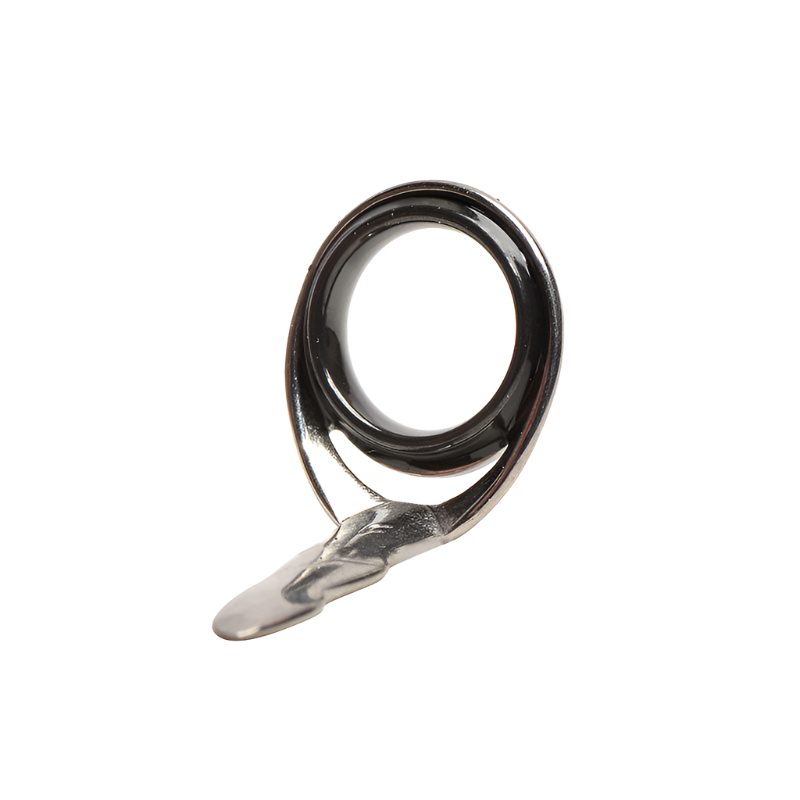

Fuji K-Series KB Single-Foot Belly Running Guides - Fazlite, Alconite, SiC & Torzite Rings
Specifications
Fuji K-Series KB Single-Foot Belly Running Guides - Fazlite, Alconite, SiC & Torzite Rings
Product Details
The Fuji KB Guide is a critical component in all K-Series and KR Concept layouts, serving as the transition (belly) guide between the reduction train and running guides. Positioned directly after the choke point, the KB combines strength, balance, and Fuji’s signature tangle-free design—ideal for handling the pressure in the midsection of the rod.
Key Features:
- Single-Foot “Belly” Guide: Specifically designed for the midsection of K-Series guide trains
- Tangle-Free K-Series Frame: Sloped design prevents line wrap, especially with braid
- Reinforced Frame Foot: Added strength to manage increased rod flex in the transition zone
- Pairs Perfectly with KT Runners: Forms a smooth and strong guide layout from choke to tip

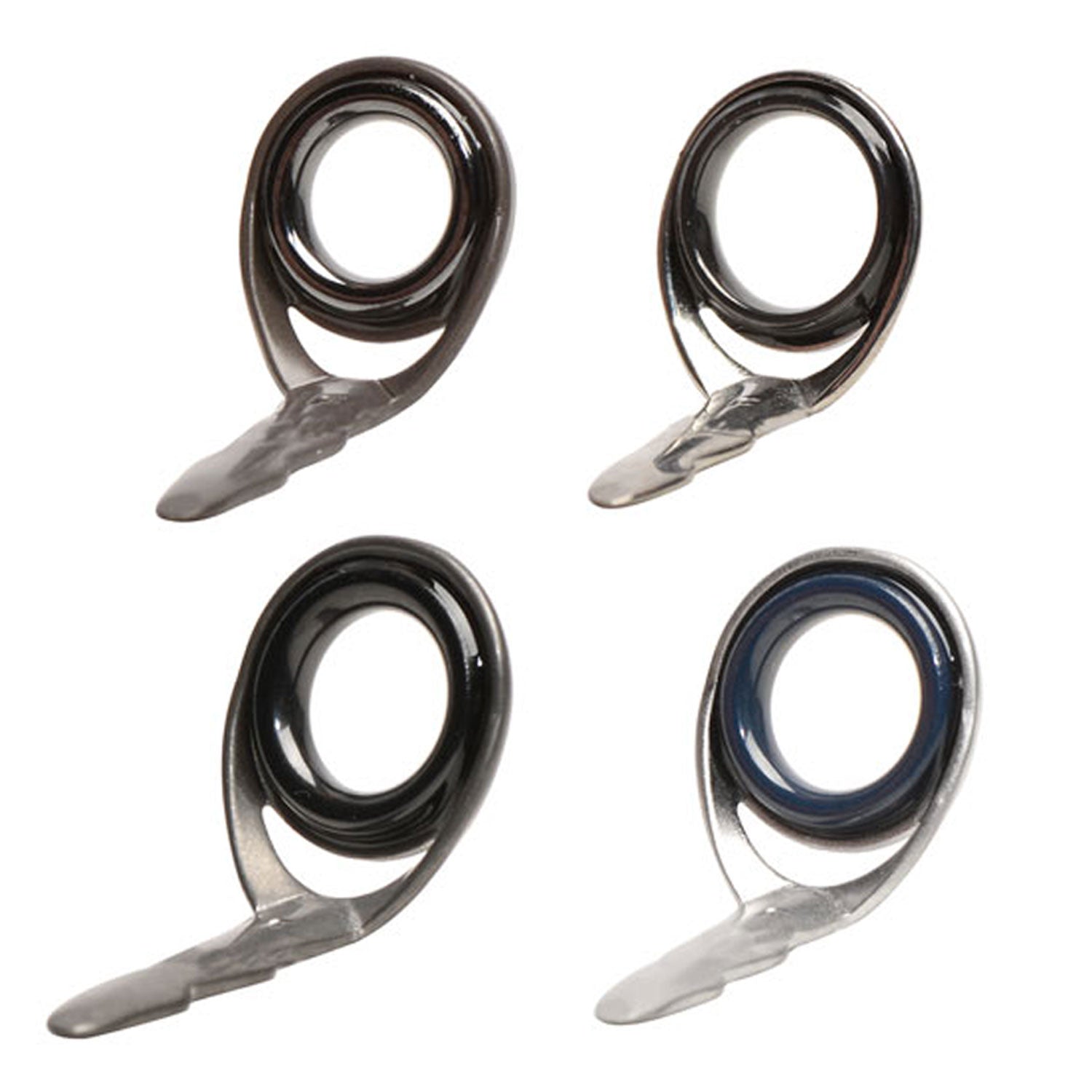

- Multiple Ring Options Available: Choose from Torzite®, SiC, Alconite®, Fazlite®, or Concept “O”
Applications:
Used in both spinning and casting rods as the choke and mid-belly guide. Essential for KR Concept rods and recommended for any high-performance K-Series layout.
KR Guide Placement Software
Size Chart
| Ring Size | Height (mm) | Foot Length (mm) | Total Length (mm) |
|---|---|---|---|
| 4 | 5.3 | 8.3 | 11.1 |
| 4.5 | 5.8 | 8.3 | 11.5 |
| 5 | 6.5 | 8.5 | 12.1 |
| 5.5 | 7.3 | 9.0 | 13.1 |
| 6 | 8.2 | 9.4 | 13.8 |
| 7 | 9.3 | 9.7 | 14.5 |
Warning: California's Proposition 65
Proposition 65 Warning
CA WARNING.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov
Files & Documents
No issues with ceramics popping out. Works good.
These are great as a first set of running guides
Good runners
I’ve stopped using other brands and use Fuji guides exclusively. The quality is hands down better. I’ve yet to experience any breakage or corrosion issues. The biggest plus for me is I don’t have to do any prep on the guide feet. Whether its a single or double foot guide, I can just start wrapping thread, that’s a big plus for me.

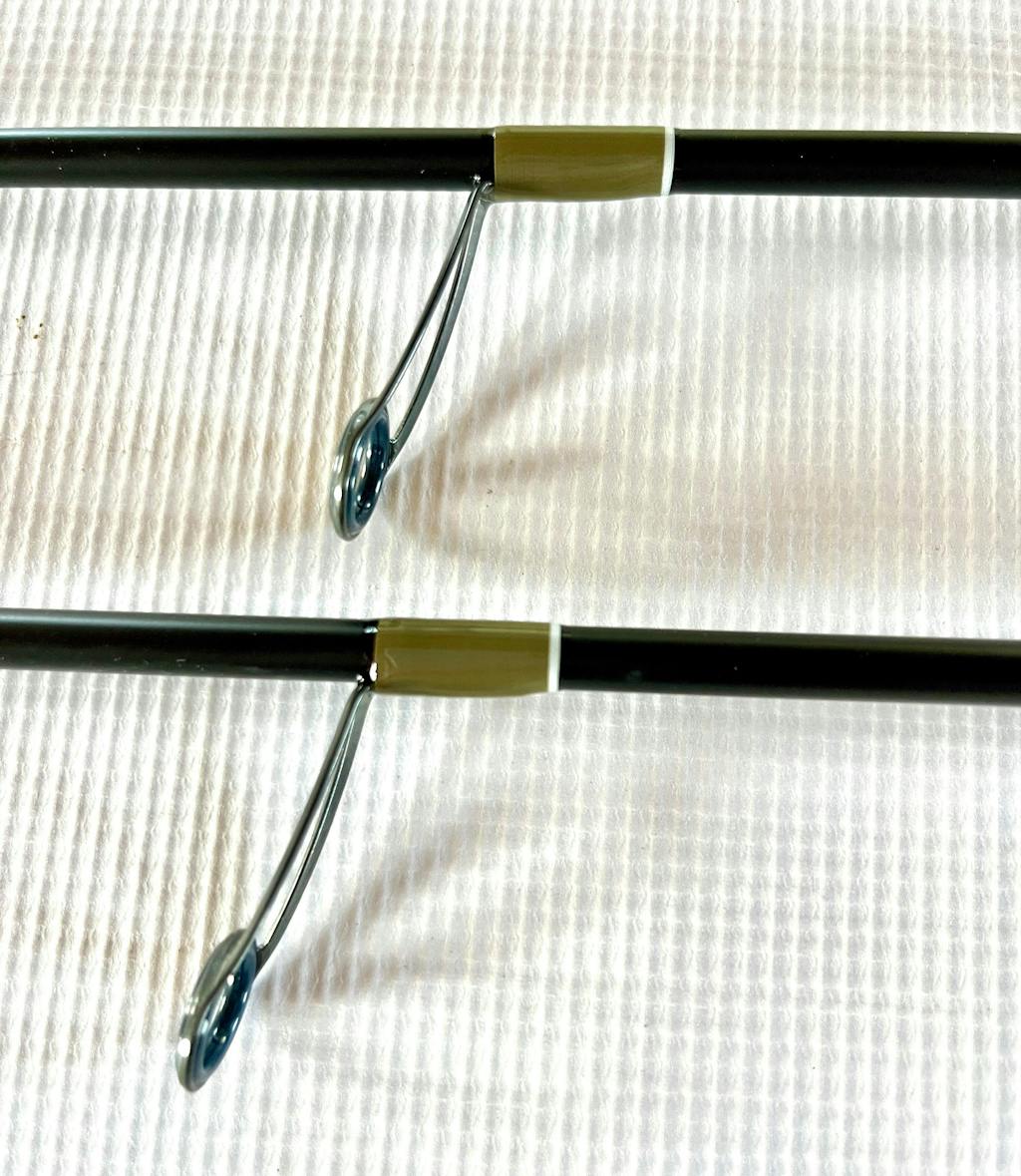

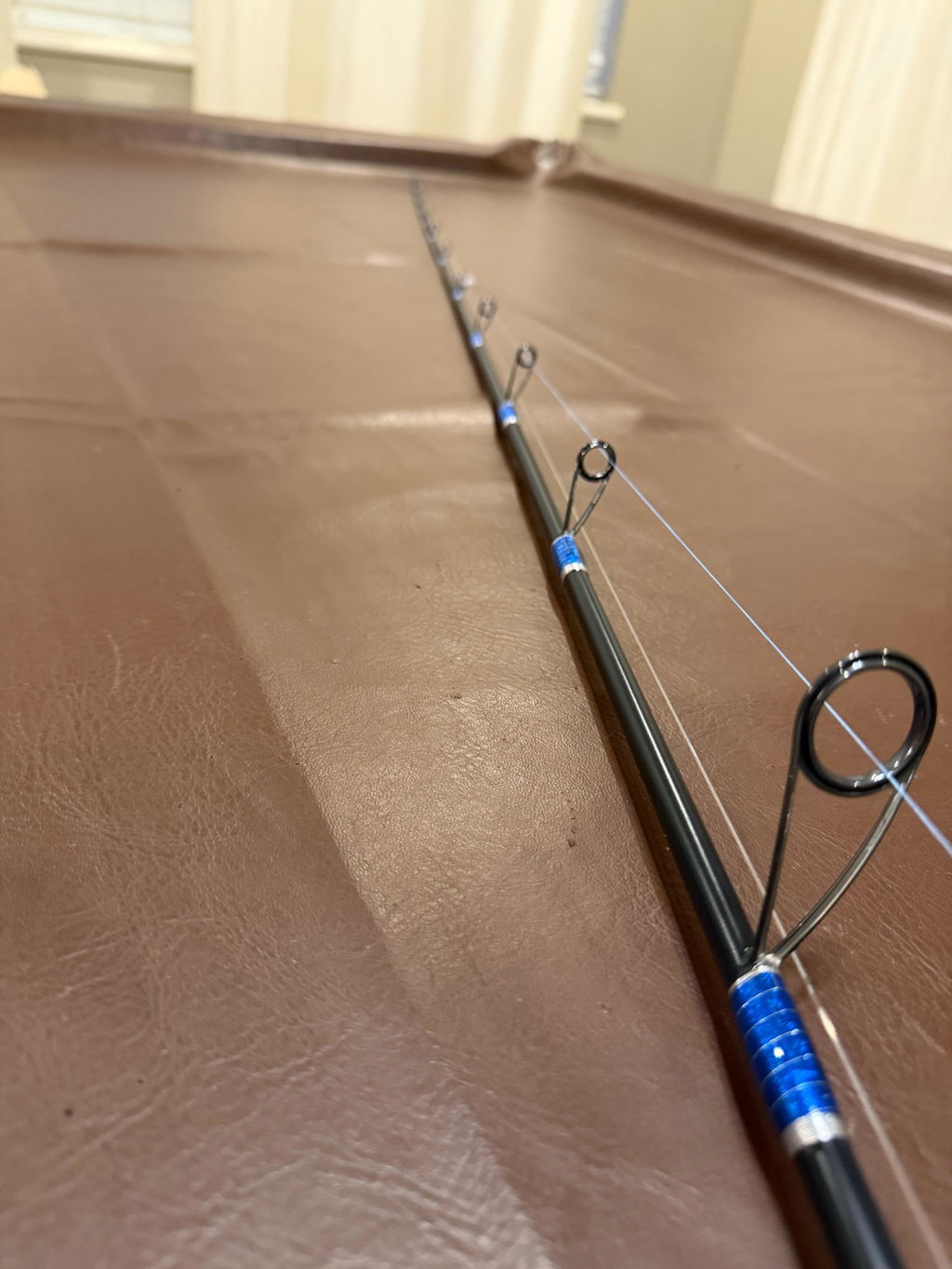

These are great guides for KR Concept builds and probably even fly rods. I put together a KR guide train on a 7’10” fiberglass rod and love the way it casts. Size 5 runners are more than adequate to pass 20lb braid to mono/fluoro knots. No hiccups at all. Make sure to properly test the load on the blank with a two line static.

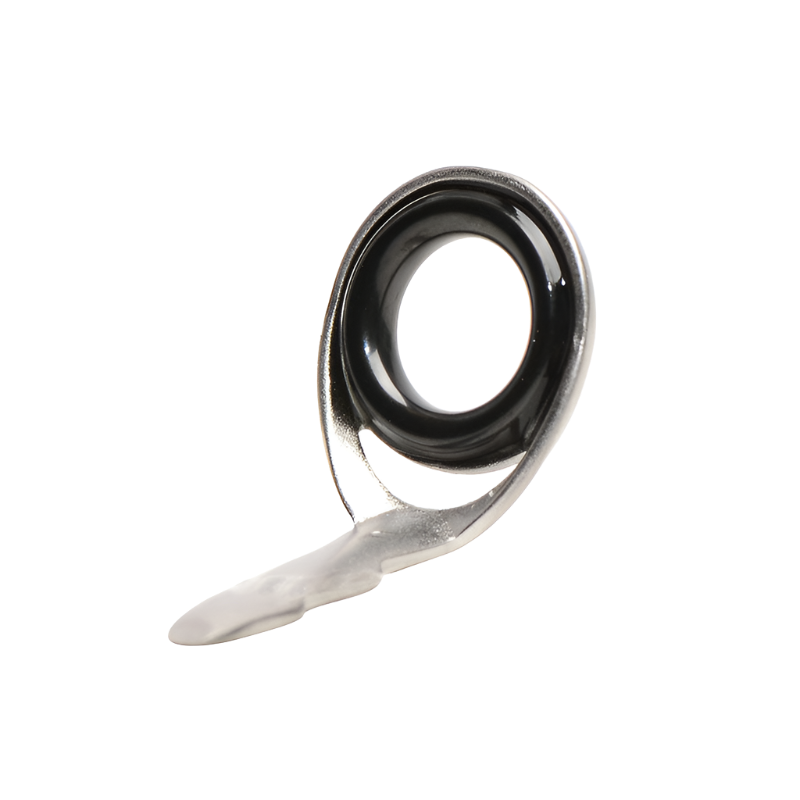

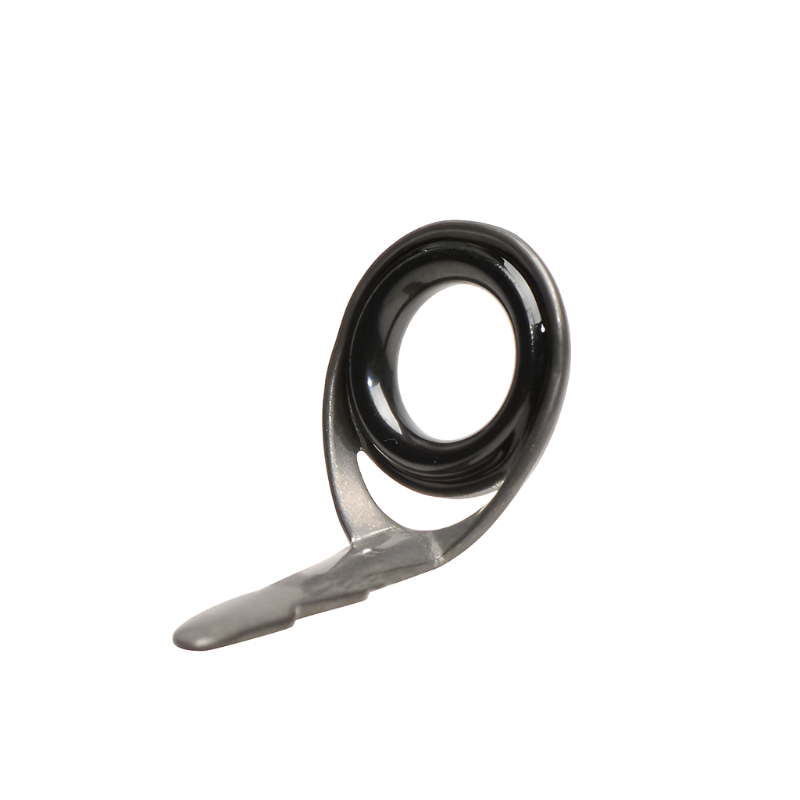

Just fyi if the bcgrey gets scraped it reveals a stainless matte finish. If you expect this might happen with your rod I suggest the silver to hide any bumps and bruises.
They are the gold standard for single foot guides in my opinion
If you want the lightest smoothest guide, then this is the guide for you. Absolutely love these guides. I was blown away by how smooth they are.
Perfect
Perfect
Fuji K-Series KB Single-Foot Belly Guides - Fazlite, Alconite, SiC & Torzite Rings
Good item good price
Fuji K-Series Single-Foot Belly Guides Model KB
They work great ...
