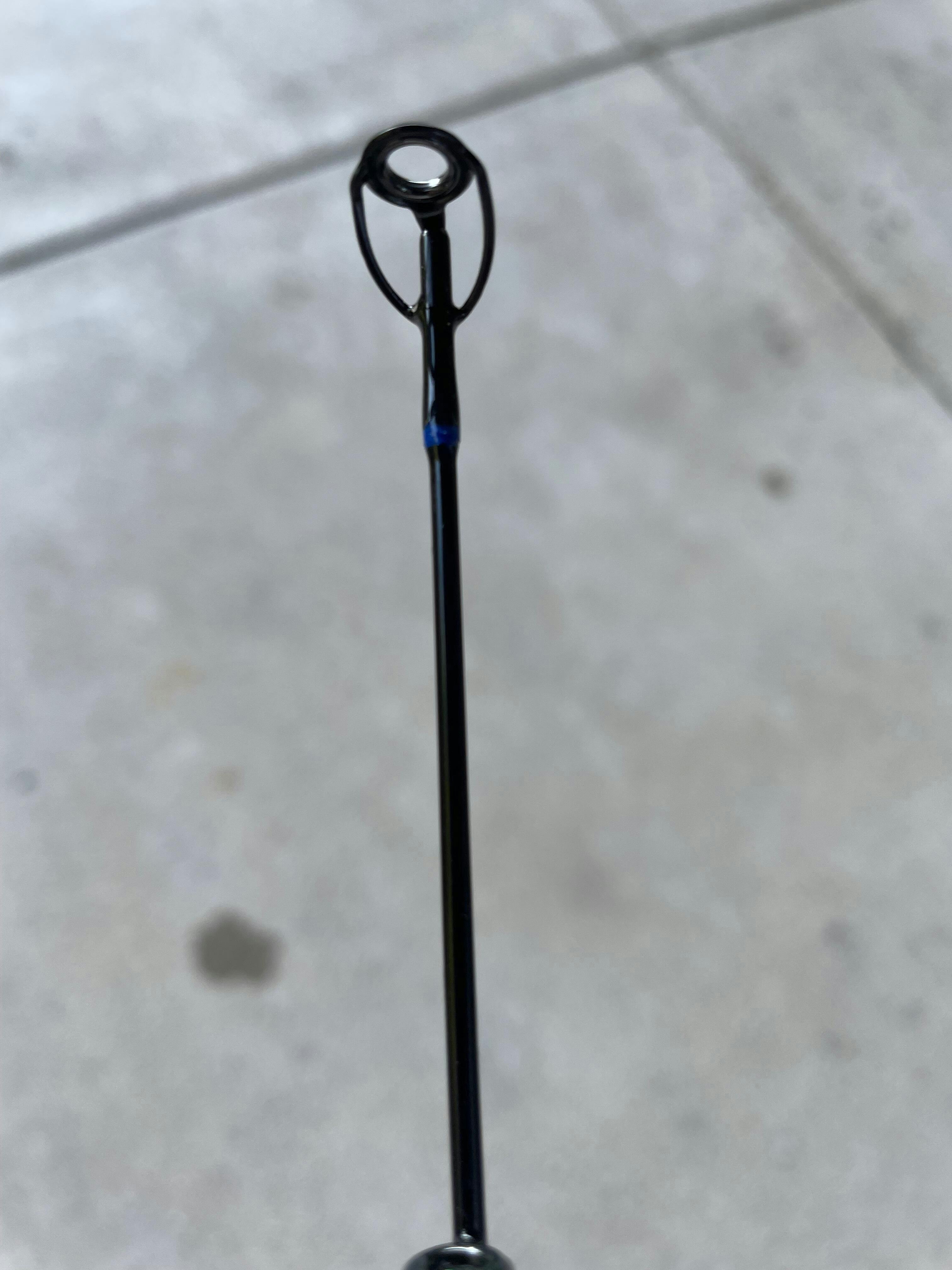

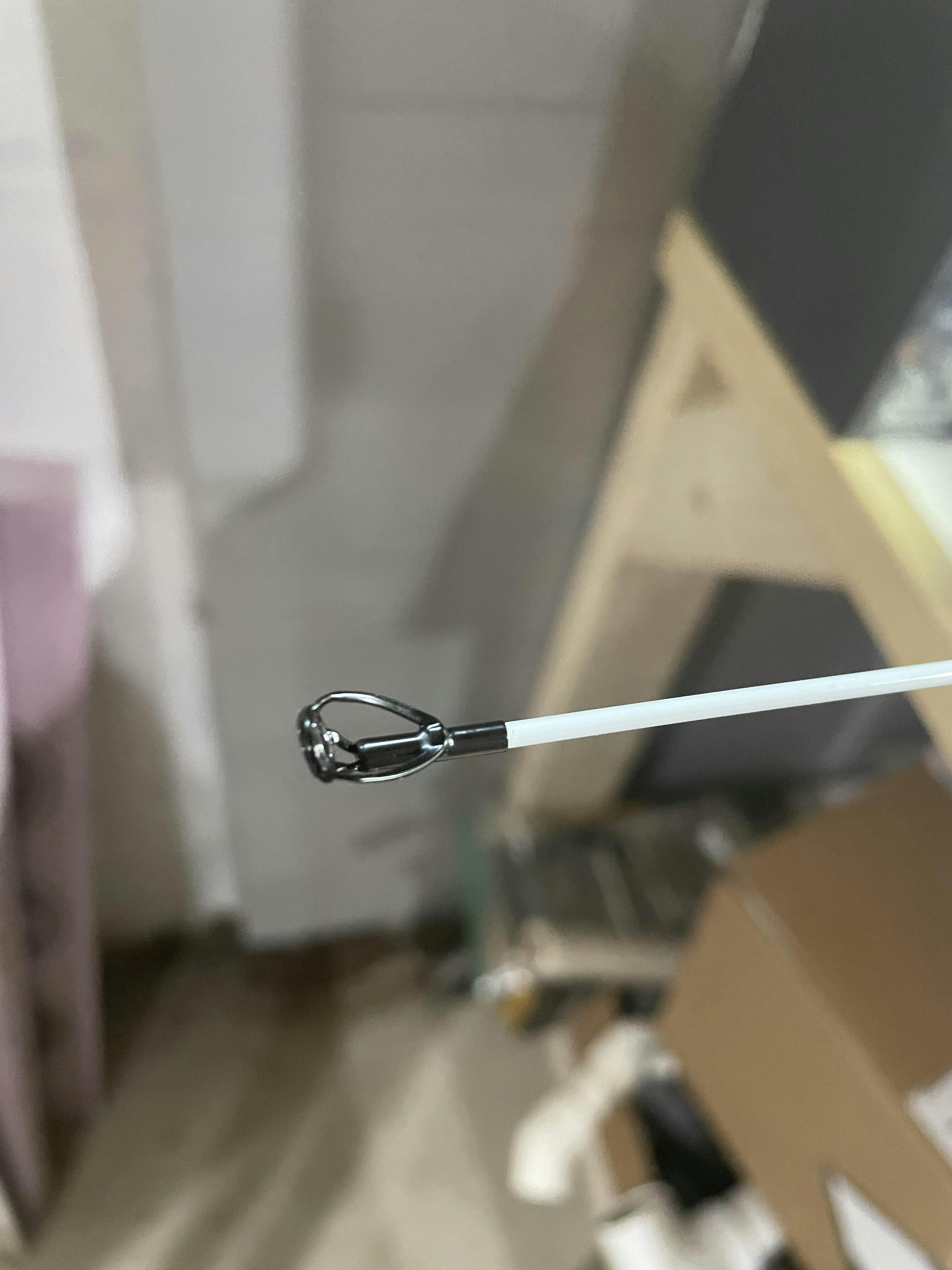

LZR Light-Duty Tip Tops feature an ultra-thin zirconium insert pressed into a stainless steel frame for superior performance at an unbeatable value.
These light-duty tip tops can be used for spinning, casting or fly rods.
|Application||Casting, Fly Fishing, Spinning|
LZR Guides by CRB
The LZR line of spinning and casting guides marks CRB’s lightest and most innovative rod guide system to date.
The advanced engineering of the ultra-thin, super light zirconium insert provides a high-density, polished ring that is then pressed into the stainless steel frames. Featuring a larger and smoother opening, the zirconia insert rings bring increased durability for braid as well as enhanced heat dissipation that reduces wear on fishing line and increases casting distance and accuracy.
From reducing line tangles and overall weight, to increasing casting distance, strength, and ring retention, the CRB LZR guides combine superior performance and unbeatable value for rod builders everywhere.
- 316 Stainless Steel frames
- Pressed Ultra-Thin, Super Light Zirconium Rings
- Increased Durability and Strength — with Less Material and Weight
- Arrowed Guide Foot for Maximum Holding and Guide Security
- Available in 3 Premium Frame Finishes: Black, Polished, or Gunsmoke
Ultra-Thin LZR ring is 50% thinner
Includes CRB's Lifetime Limited Warranty
Premium Stainless Steel Frame Finishes
LZR Guide Technology
CRB introduces the LZR line of rod guides as its lightest and most advanced design yet in a family of high-performance rod components. Engineered with ultra-thin, super light zirconia rings, the LZR guides incorporate a high-density, polished insert ring that is 50% thinner than standard ceramic rings with an inner diameter up to 10% larger than comparable guides.
This guide technology allows the LZR series to be incredibly light, yet durable enough for the toughest braid—while also featuring enhanced heat dissipation that reduces wear on fishing line and increases casting distance as well as accuracy.
The LZR Guides are available in single-foot spinning, double-foot casting, medium-duty spinning/casting, running guides, and even tip tops; light and medium-duty.
Ultra-Thin RingPressed Ultra-Thin, Super Light Zirconium Rings
Superior PerformanceIncreased Durability and Strength—with Less Material and Weight
Secure FootArrowed Guide Foot for Maximum Holding and Guide Security
Sized for Your NeedsRing Sizes 4 through 30
3 Premium FinishesAvailable in Black, Polished, or Gunsmoke
Lifetime Limited WarrantyPerformance, guaranteed
Tip Top Sizing
Insert Ring/Loop Sizing
The first measurement in a Tip-Top is the Inside Diameter (I.D.) of the ring (eyelet) in Millimeters. Generally, the I.D. of the ring will match the smallest guide on the rod. Standard sizes are 6, 8 and 10mm for conventional rods, while heavier saltwater rods may go as high as a 16mm ring.
The second measurement in a Tip-Top is the Inside Diameter (I.D.) of the tube, measured in 1/64ths of an inch. Tube sizes generally range from 3.5 to 12, but they go all the way up to 32 (.500") in Big Game roller tops. The tube size should correspond to the tip size given by the manufacturer of your blank.
